Product Description

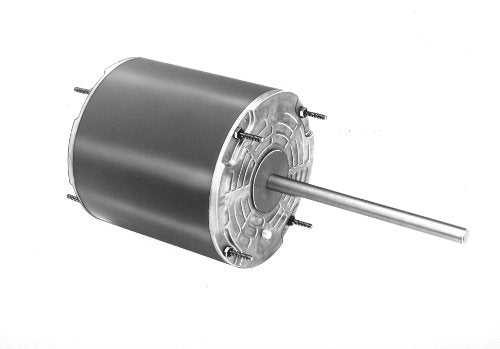

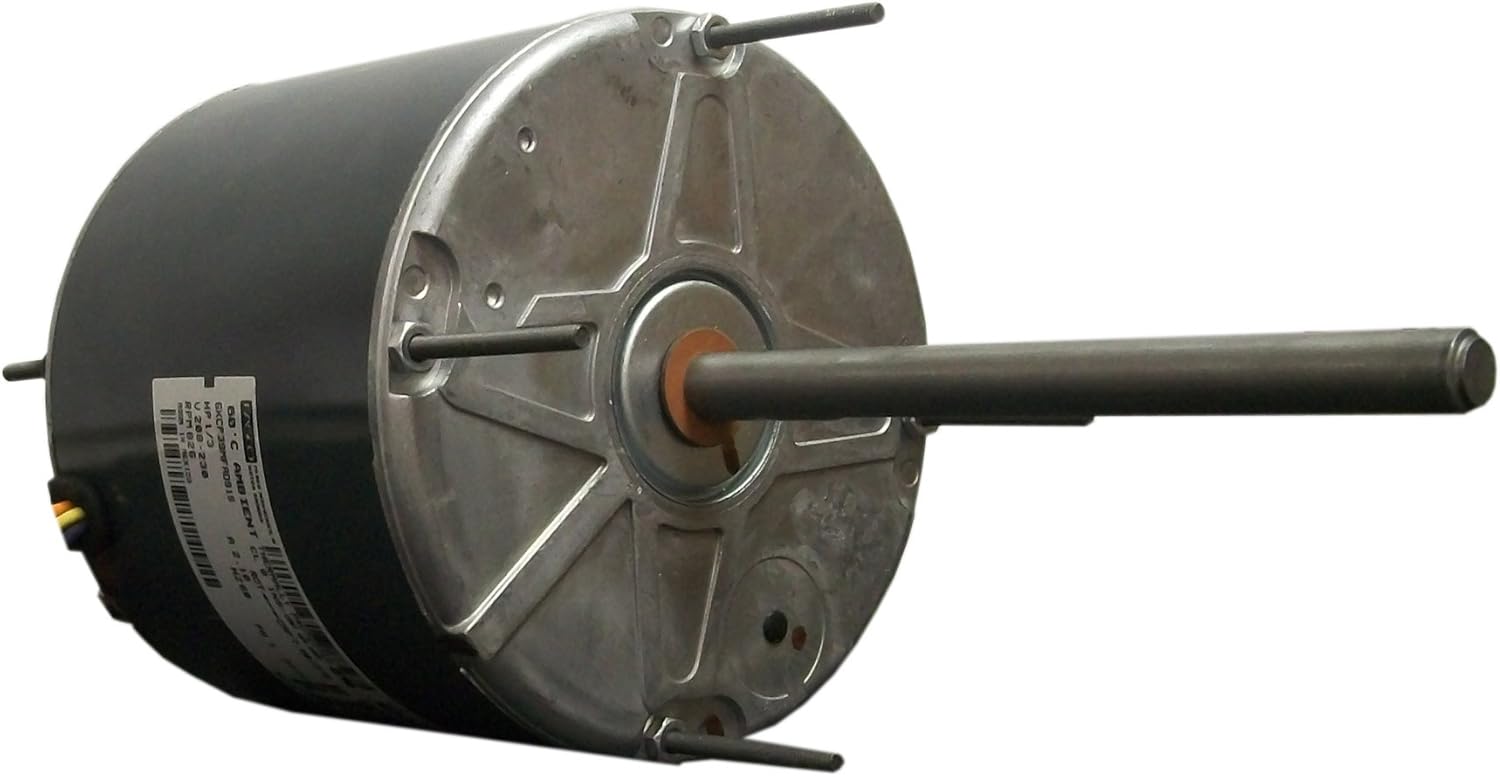

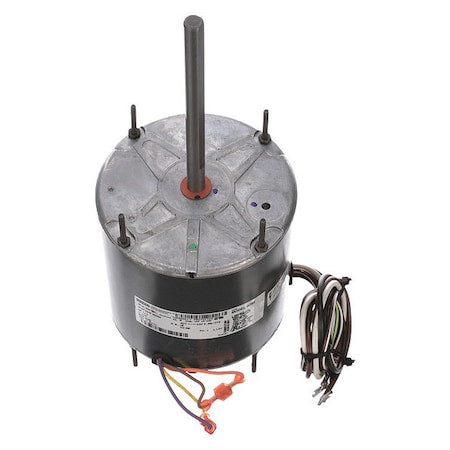

The Fasco D795 is a 5.6-inch diameter Permanent Split Capacitor (PSC) motor. It has a 1/3 horsepower rating and operates at 115 volts with an 825 RPM speed. This motor features a reversible rotation and includes ball bearings for reliable performance. It is designed for single-phase use and has a 6.1 amps rating.
- Thermally protected
- UL recognized; CSA or ULc certified
- Reversible rotation
Product Highlights
This motor is ideal for condenser fan motors and is suitable for shaft up or horizontal applications. It has an open air-over enclosure and uses extended studs for mounting. The shaft measures 1/2 inch in diameter by 6 inches in length.
Product Information
Standard Information
-
Brand: Fasco
-
MPN: D795
-
Application: OEM Replacement
-
Type: Fan Motor
-
Mounting Type: Extended Studs
Technical Specifications
-
Horsepower: 1/3 hp
-
Voltage: 115 volts
-
Speed: 825 RPM
-
Amperage: 6.1 amps
-
Rotation: Reversible
-
Bearings: Ball
-
Shaft Diameter: 1/2 inch
-
Shaft Length: 6 inches
-
Frame: 48Z
-
Enclosure: Open Air-Over
-
Phase: Single
-
Material: Steel
-
Dimensions: 14.06 inches (L) x 6.04 inches (W) x 6.02 inches (H)
