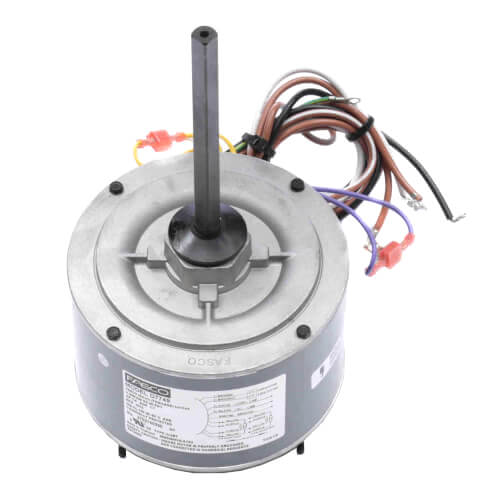

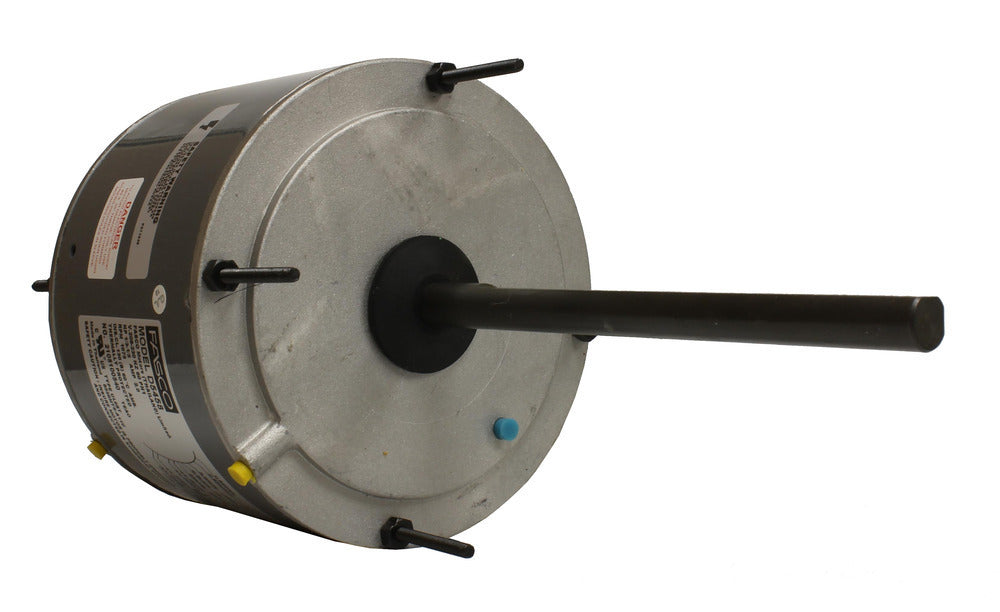

Fasco D7749 Condenser Fan Motor 1/4 HP 1075 RPM (208-230V)

Product Description

The Fasco D7749 is a versatile condenser fan motor designed for HVAC applications. This motor operates at a quarter horsepower and delivers a speed of 1075 RPM. It is suitable for use in both vertical and horizontal shaft applications. The D7749 is thermally protected, ensuring reliable operation in various environments.

• Permanent Split Capacitor (PSC) type
• Single phase operation
• Reversible rotation for flexible installation options

Product Highlights

This motor is ideal for replacing existing condenser fan motors in various systems. It includes automatic overload protection and features open ventilation to enhance airflow.

Product Information

Standard Information

• Brand: Fasco
• MPN: D7749

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Phase: Single
• Voltage: 208-230V
• Speed: 1
• Amperage: 1.7
• Frame Size: 48
• Diameter: 5.6 inches
• Enclosure Type: Open Drip Proof
• Shaft Type: Double Flat
• Shaft Extension: 6.5 inches
