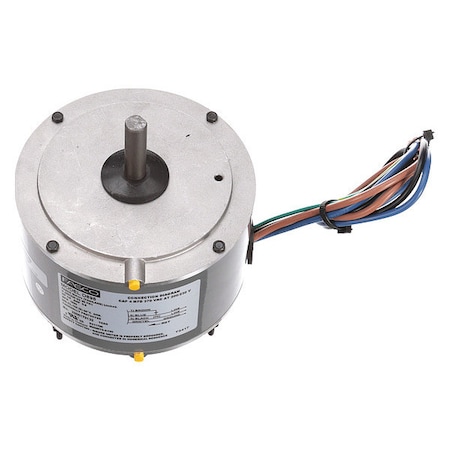

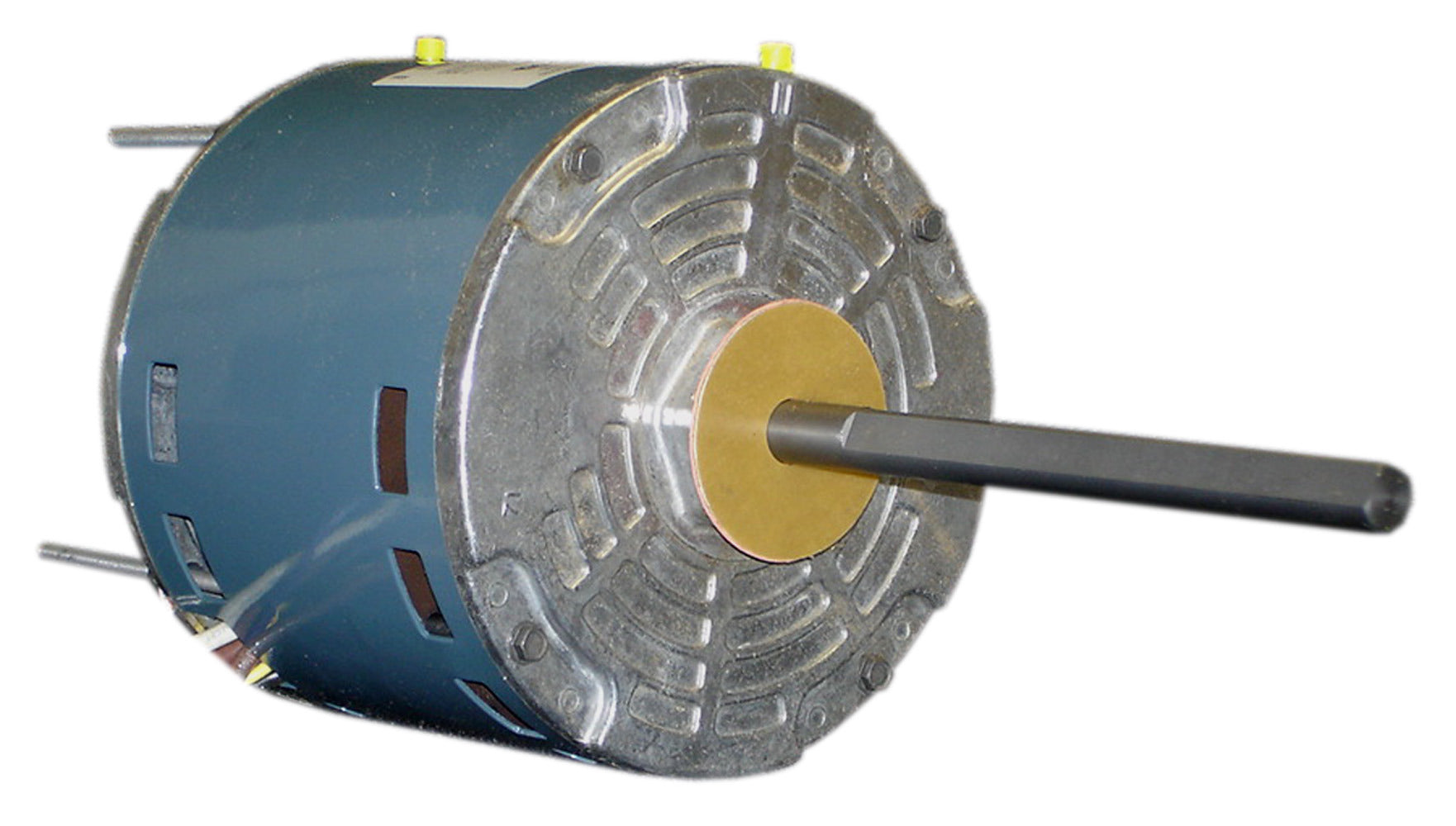

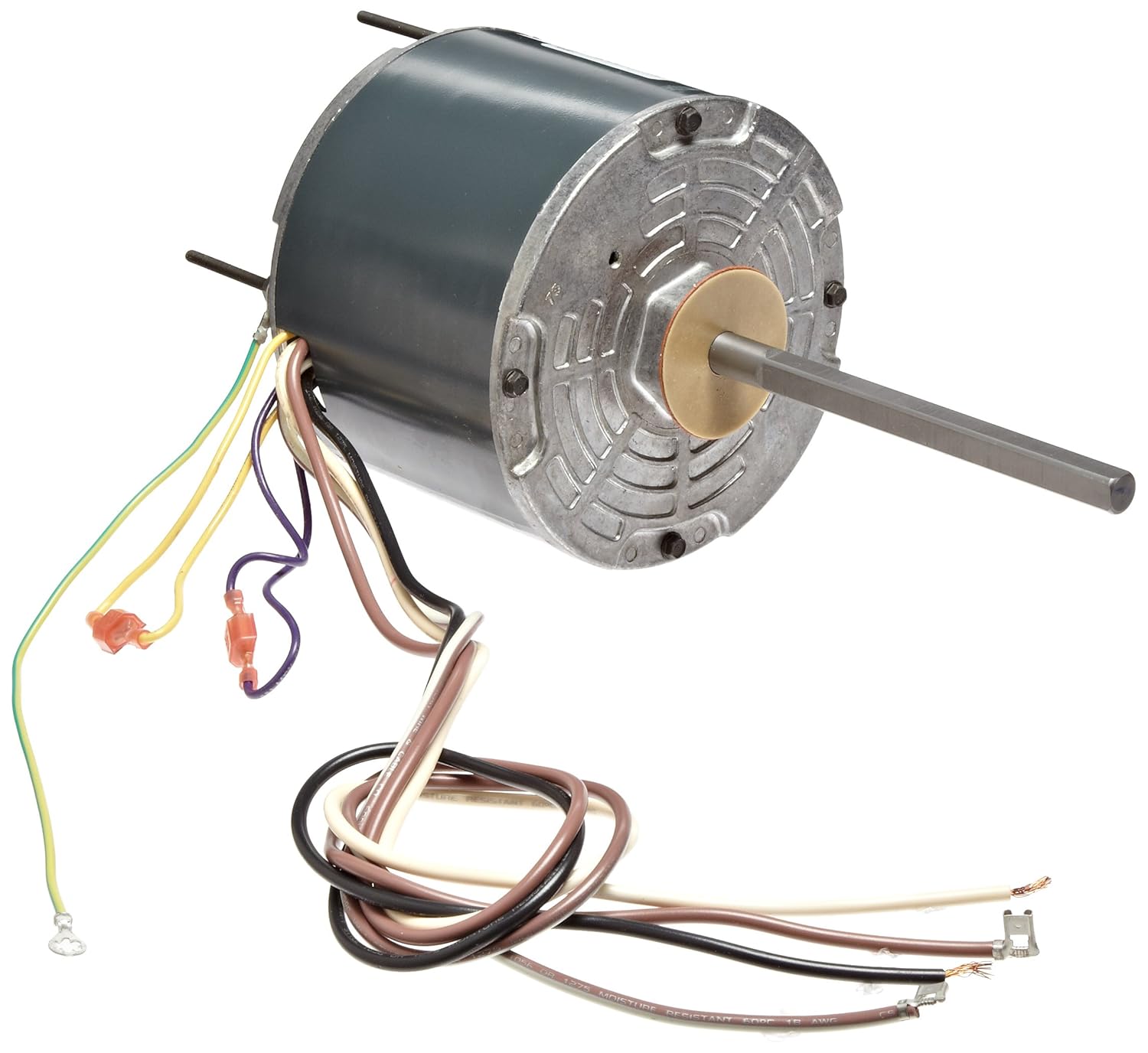

Fasco D748 Condenser Fan Motor 1/3HP 208-230V 1075 RPM

Product Description

The Fasco D748 is a permanent split capacitor condenser fan motor designed for efficient operation in various HVAC systems. It operates at 208-230 volts and a speed of 1075 RPM. This model features a sleeve bearing design, making it suitable for applications requiring reliable performance and durability.

• Thermally protected to prevent overheating.
• UL recognized and CSA certified for safety.
• Reversible rotation for flexibility in installation.

Product Highlights

The D748 motor delivers consistent performance and is designed for ease of use in multi-directional installations.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model Number: D748
• Horsepower: 1/3 HP
• Voltage: 208-230V
• Amperage: 2.9A
• Frame Size: 48Z
• RPM: 1075
• Speed Type: Single speed

Technical Specifications

• Mounting Type: Extended studs
• Motor Type: PSC (Permanent Split Capacitor)
• Insulation Class: Class B
• Ambient Temperature Rating: 40 degrees Celsius
• Shaft Type: Double flat
• Shaft Diameter: 0.5 inches
• Shaft Extension Length: 6.5 inches
