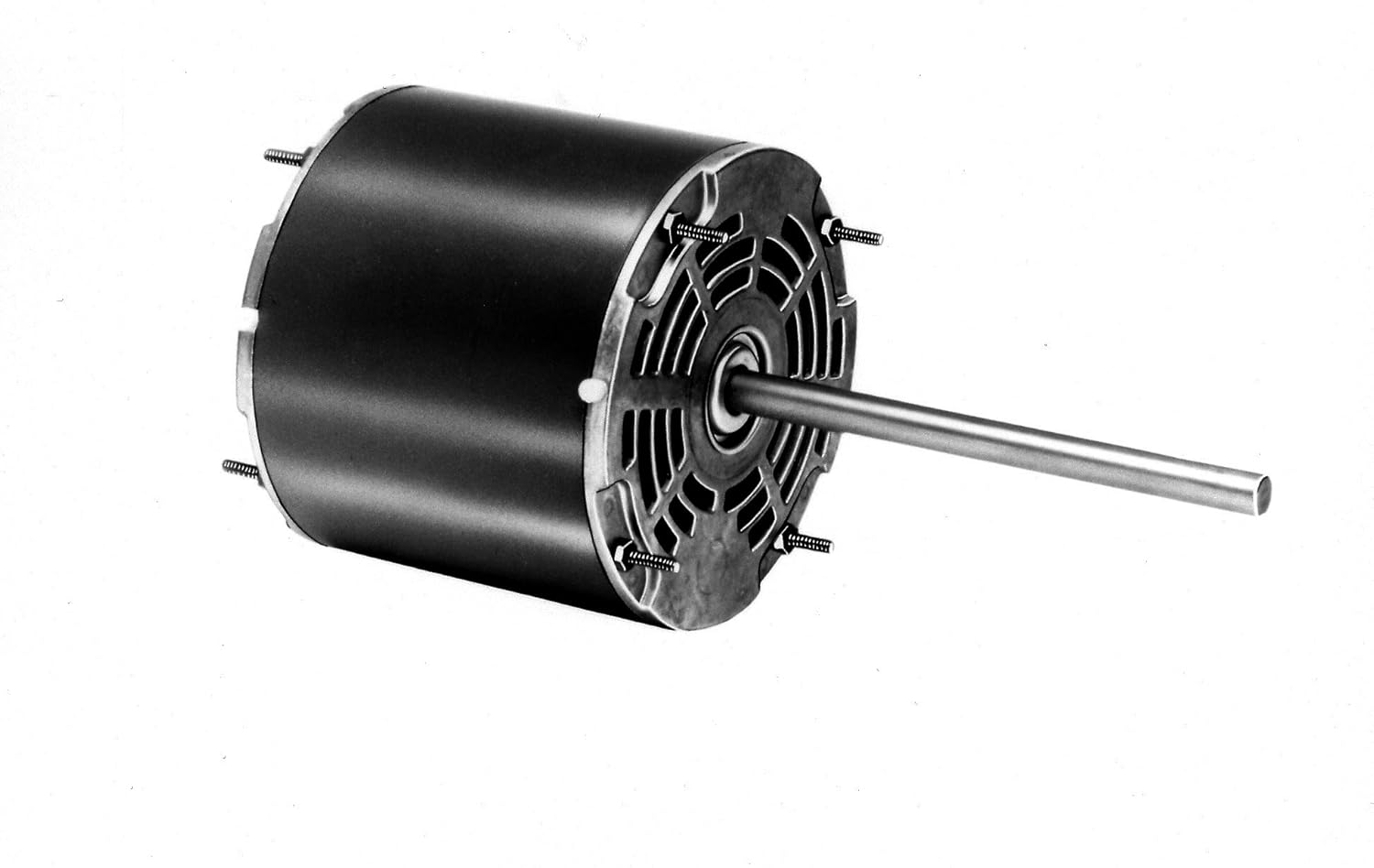

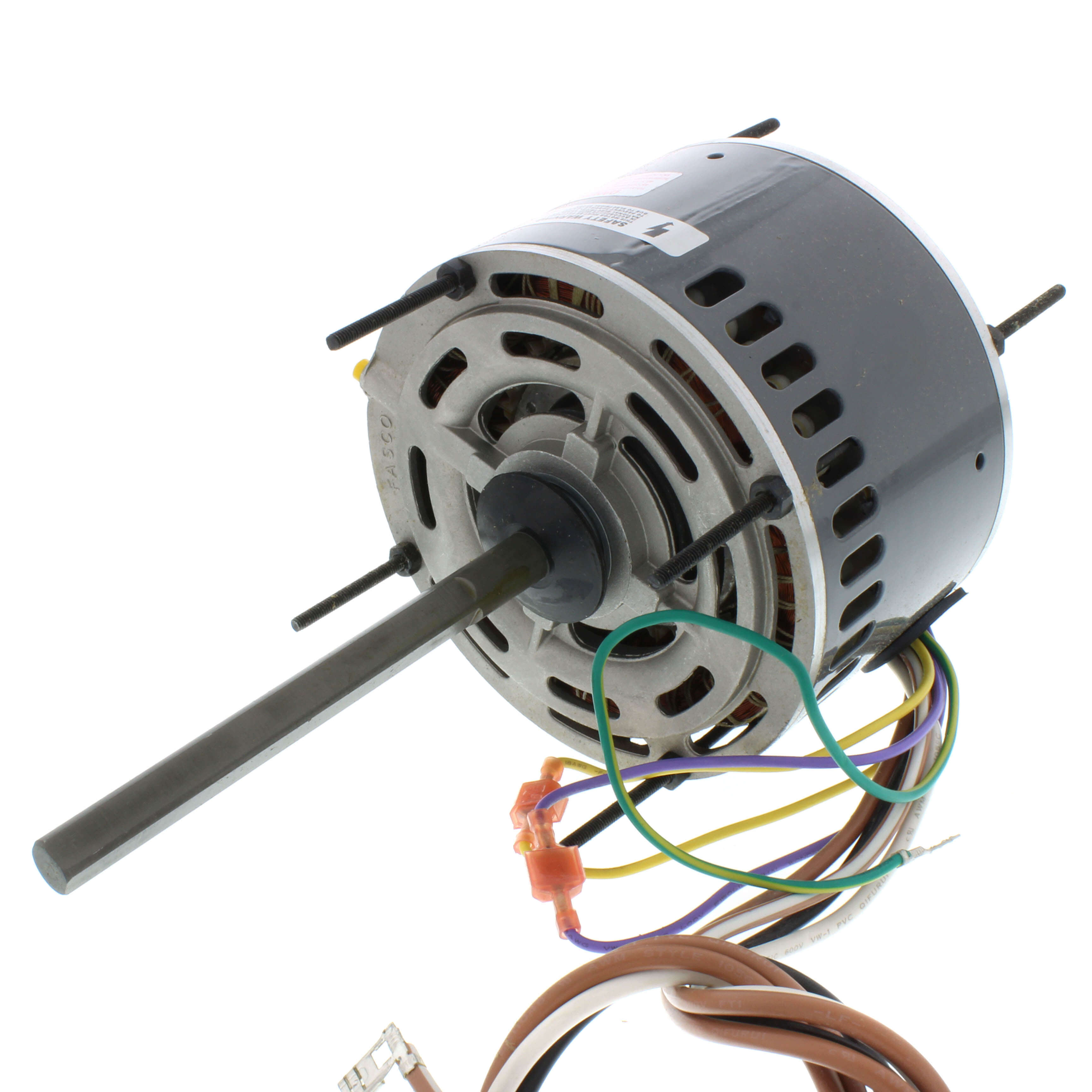

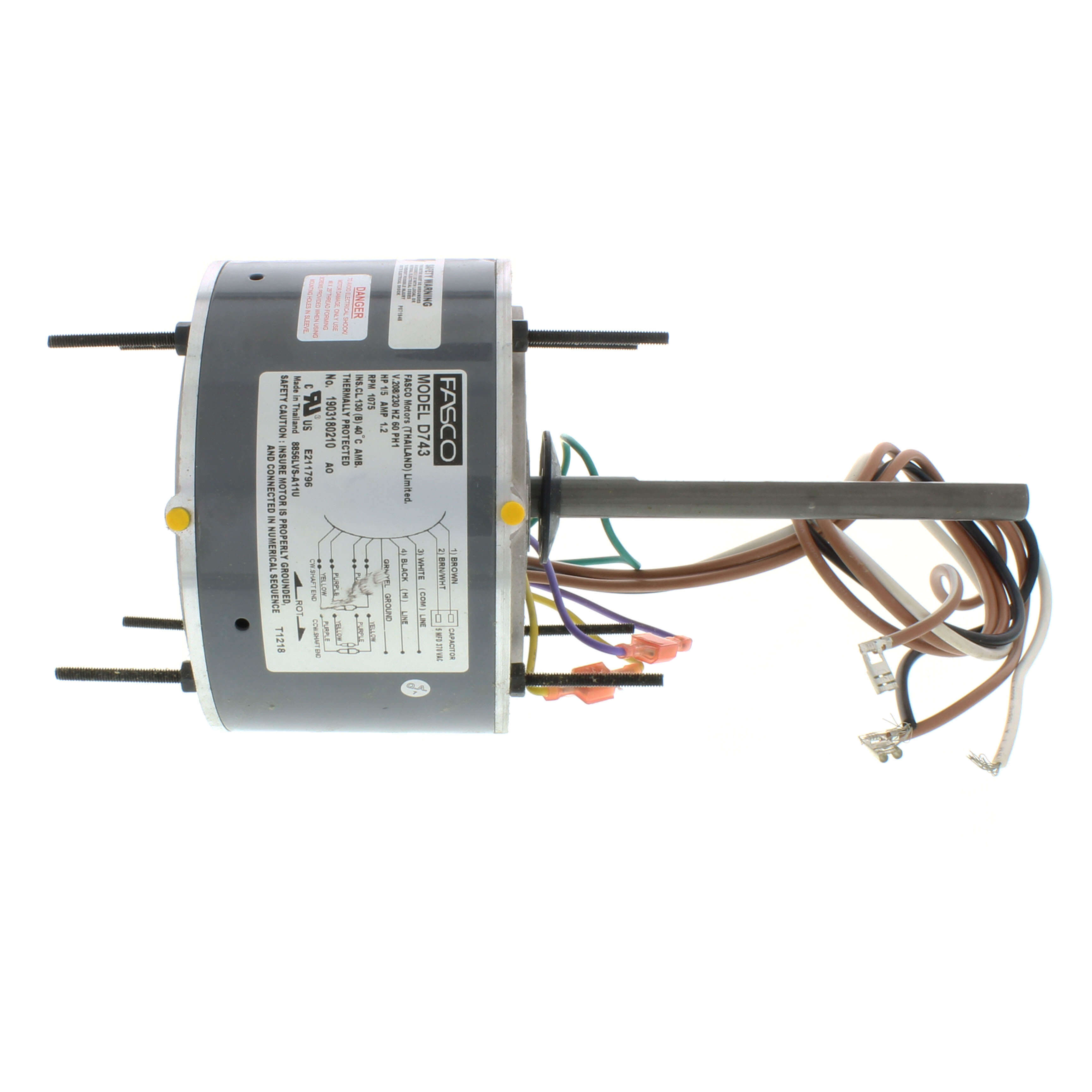

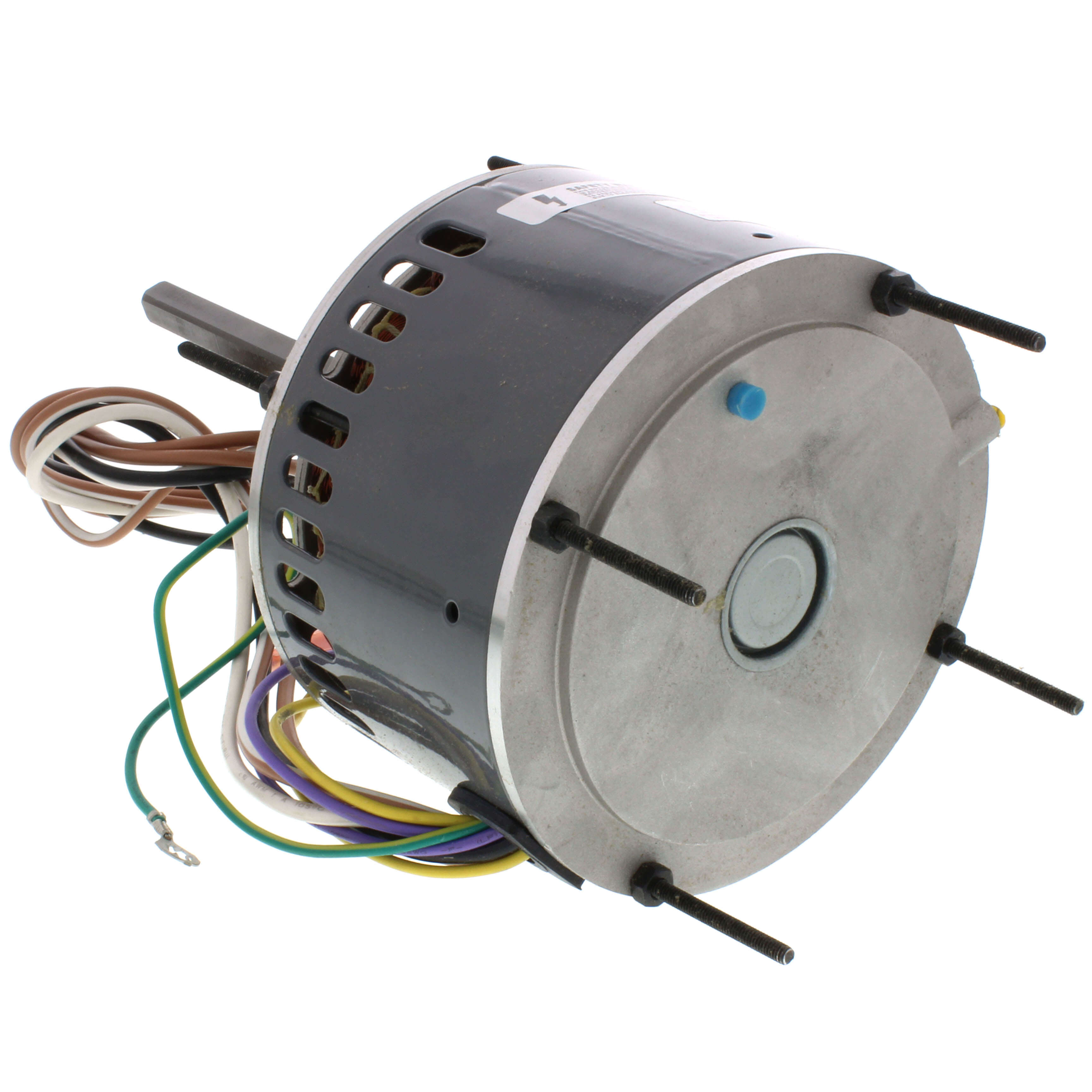

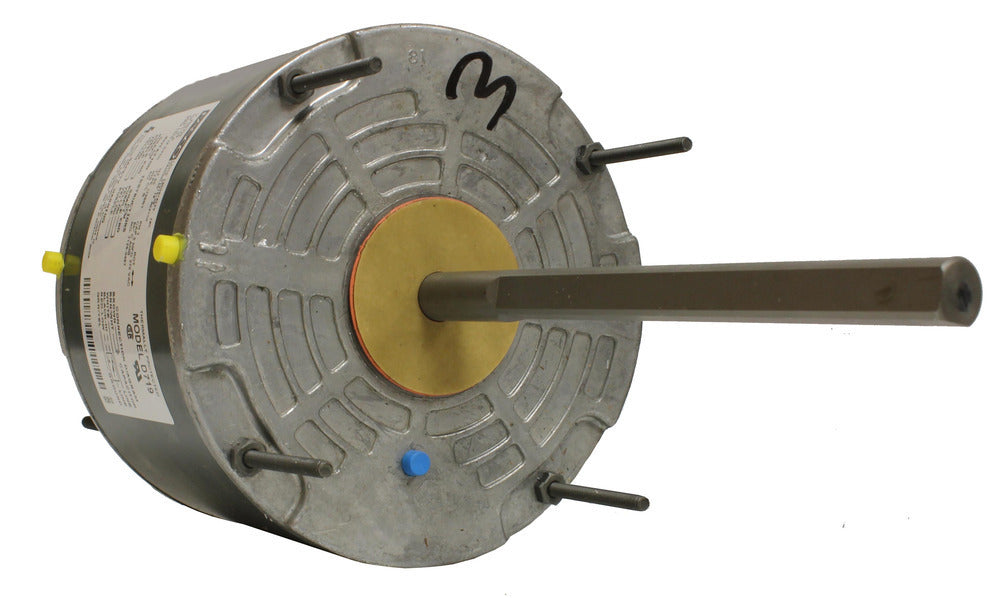

Fasco D743 Condenser Fan Motor 1/5 HP 1075 RPM

Product Description

The Fasco D743 is a condenser fan motor designed for HVAC applications. It has a power rating of 1/5 horsepower and operates at 1075 RPM. The motor is suitable for both vertical and horizontal shaft configurations and is housed in an open enclosure for efficient air circulation. It is rated for voltage of 208-230V and has a single-phase design.

• Permanent split capacitor design
• Thermal protection for safety
• Reversible shaft rotation

Product Highlights

This motor is thermally protected and features a continuous duty cycle, making it reliable for constant use. The D743 is compatible with various HVAC systems and is easy to install with an extended stud mounting type.

Product Information

Standard Information

• Brand: Fasco
• MPN: D743

Technical Specifications

• Power: 1/5 HP
• RPM: 1075
• Voltage: 208-230V AC
• Amperage: 1.2A
• Frame Size: 48
• Motor Length: 3.5 inches
• Shaft Diameter: 0.5 inches
• Max Ambient Temperature: 40 Degrees C
• Insulation Class: B
• Bearings: Sleeve
• Agency Approvals: UL, CSA
