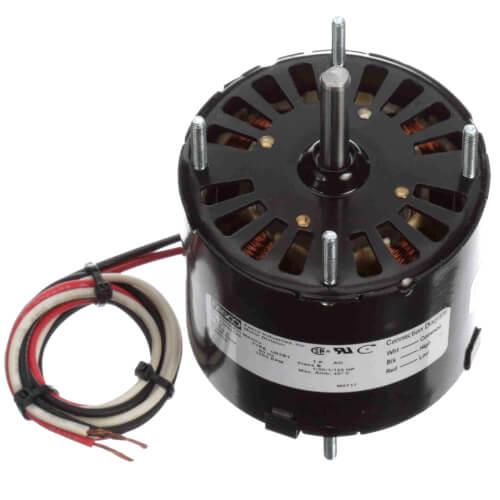

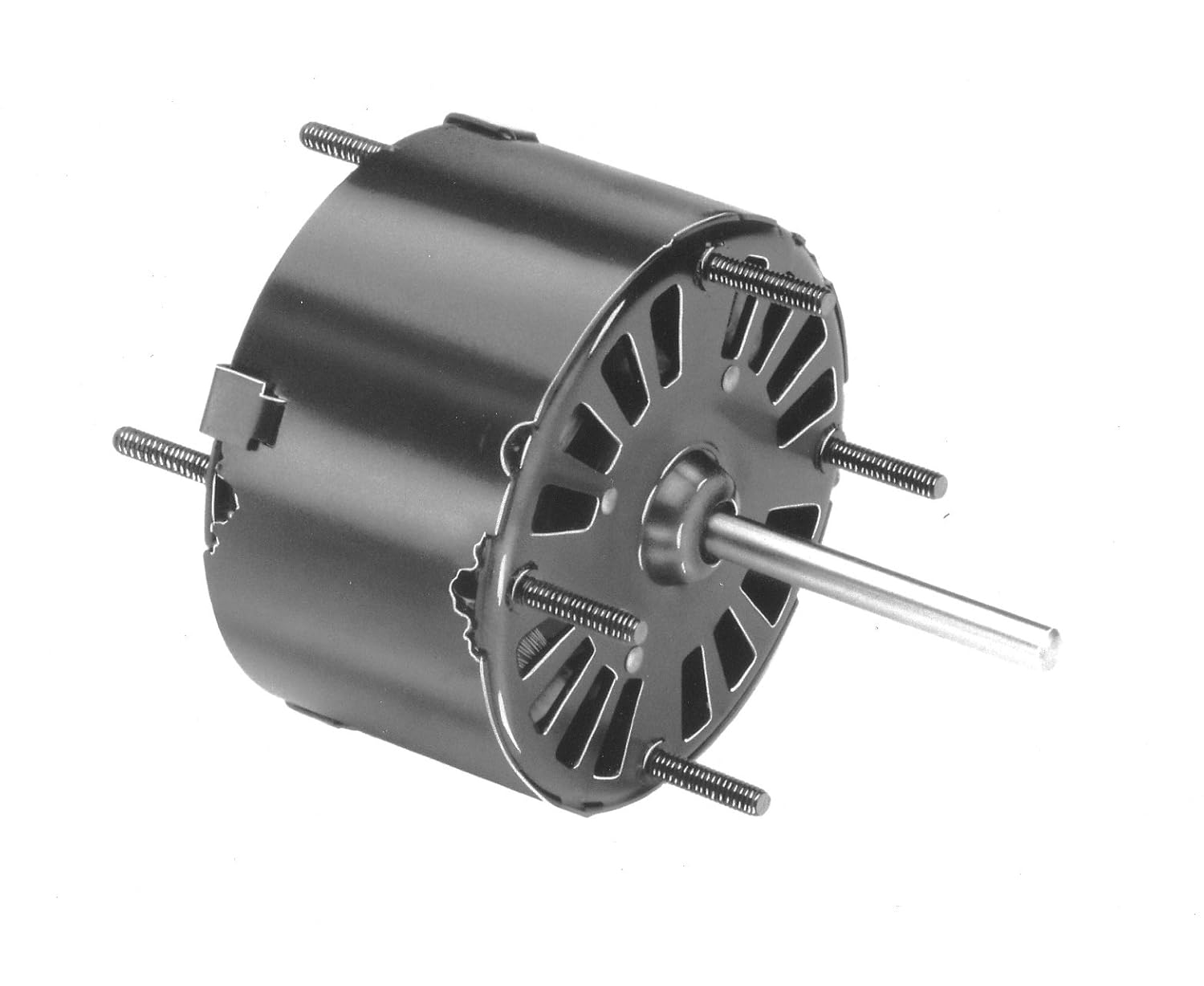

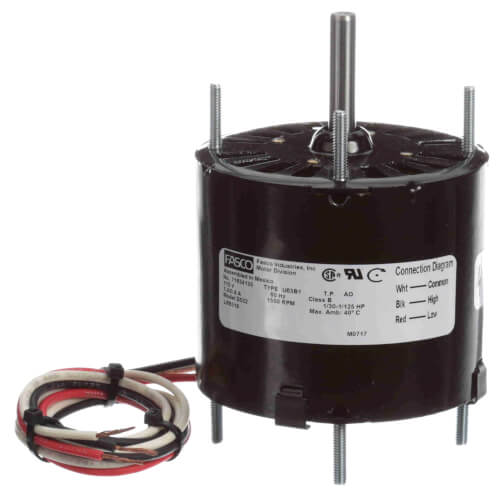

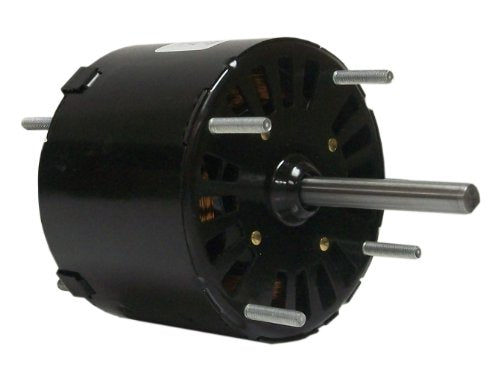

Fasco D532 3.3-Inch Motor 1/30-1/125 HP 115V CW

Product Description

The Fasco D532 3.3-Inch Motor is designed for HVAC applications and is ideal for general-purpose use. This single-phase motor operates at 1/30 to 1/125 horsepower with 115 volts and a speed of 1550 RPM. It features a shaded pole design and is thermally protected.

• Open ventilated design
• Clockwise rotation (shaft end)
• Extended studs for mounting

Product Highlights

General-purpose motor with shaded pole design and thermal protection. Mounting brackets and hardware are included for easy installation.

Product Information

Standard Information

• Manufacturer: Fasco
• Model: D532
• Voltage: 115V

Technical Specifications

• HP: 1/30-1/125
• RPM: 1550
• Frame Size: 3.3 inches
• Phase: Single
• Amperage: 1.4/0.9 amps
• Bearing Type: Sleeve
• Rotation: Clockwise (Shaft End)
• Mounting Type: Extended Studs
• Motor Thermal Protection: Auto
• Temperature: Max 40°C
• Insulation Class: B
• Service Factor: 1
