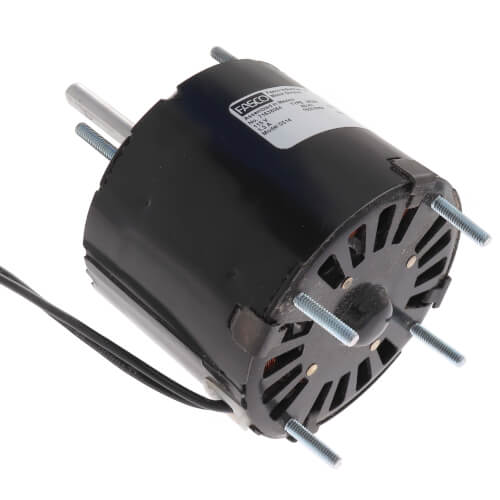

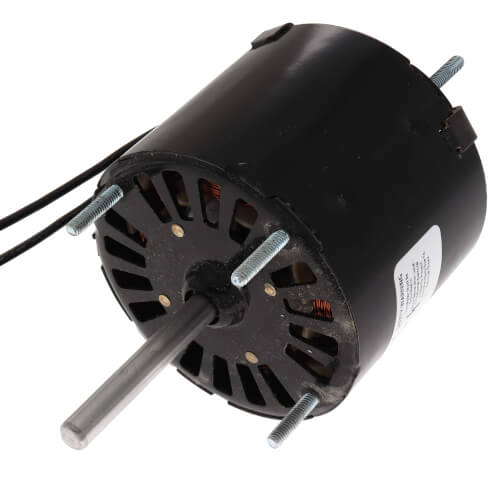

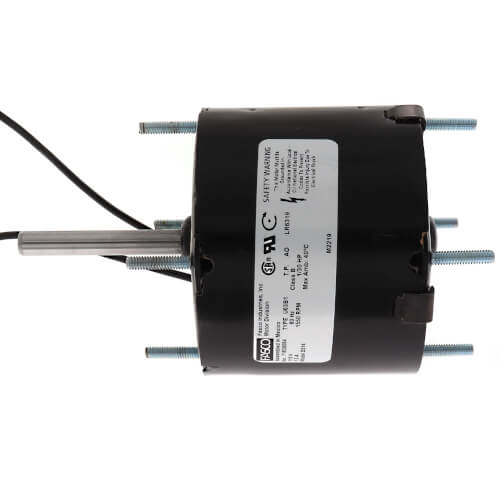

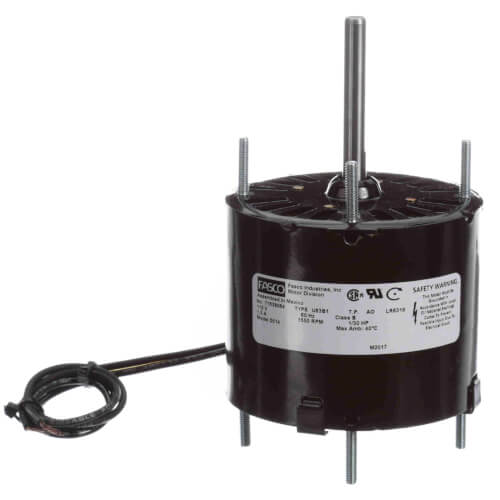

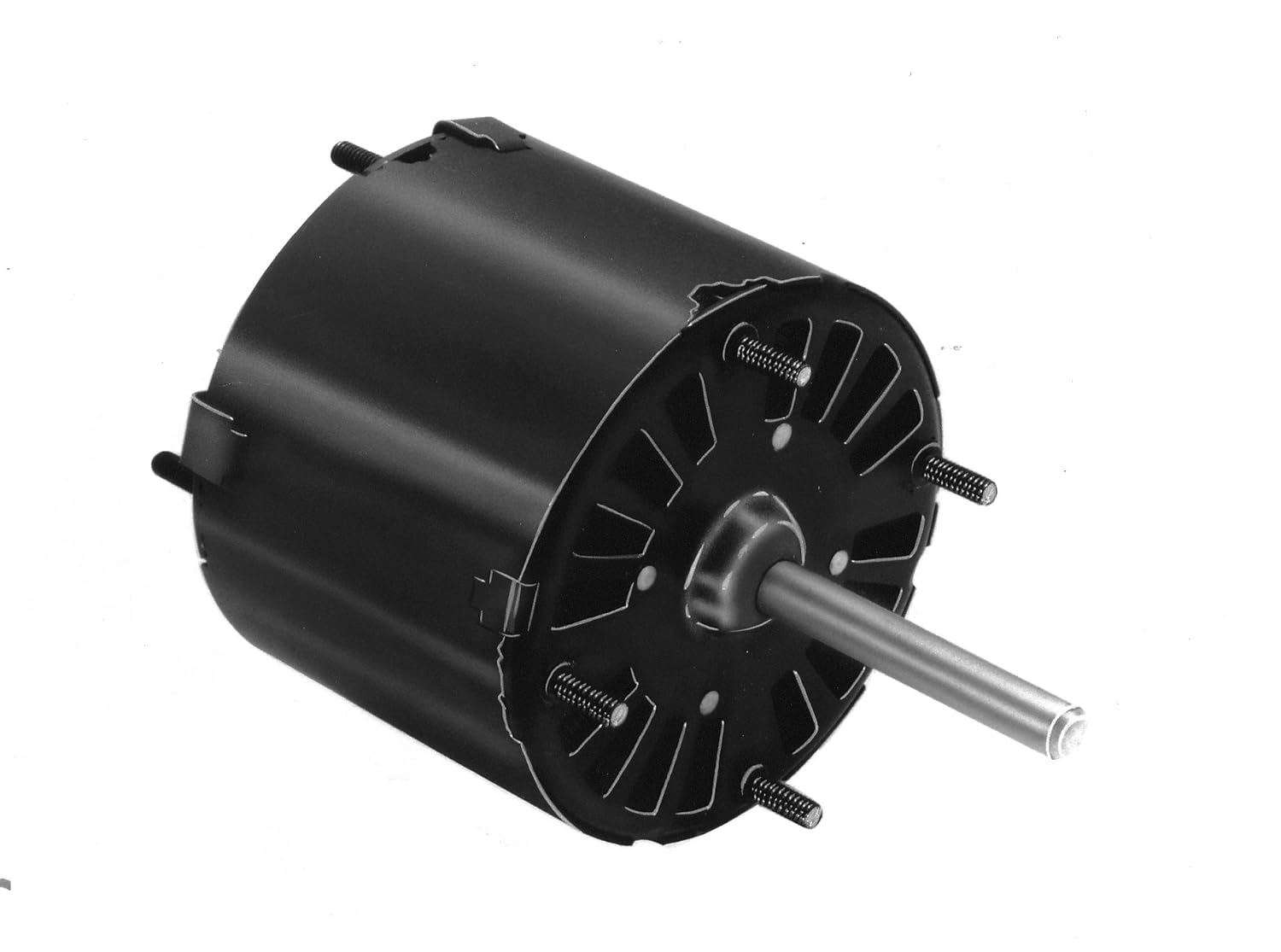

Fasco D514 Fan and Blower Motor 1/30 HP, 115V, 1500 RPM

Product Description

The Fasco D514 Fan and Blower Motor is a reliable choice for various applications. This 3.3-inch open ventilated shaded pole motor offers a 1/30 horsepower and operates at 1500 RPM. It runs on 115 volts with 1.3 amps, and features clockwise shaft end rotation.

• Open ventilated shaded pole motor
• 1/30 horsepower, 1500 RPM
• 115 volts, 1.3 amps

Product Highlights

This motor is thermally protected and CSA certified. It features sleeve bearing and an open air over enclosure type, making it suitable for various environments and applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D514

Technical Specifications

• Motor Type: Shaded Pole
• Horsepower: 1/30 HP
• RPM: 1500
• Voltage: 115V
• Amperage: 1.3
• Enclosure Type: Open Air Over
• Rotation: Clockwise Shaft End
• Bearings: Sleeve
• Frame Size: 3.3 inches
• Shaft Diameter: 0.313 inches
• Shaft Extension: 2.3 inches
• Thermal Protection: Automatic
• Insulation Class: B
• Frequency: 60 Hz
• Max Ambient Temperature: 104 degrees Fahrenheit
• Approvals: UL, CSA
