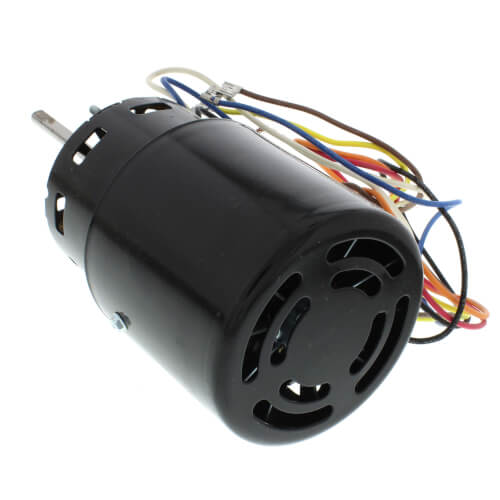

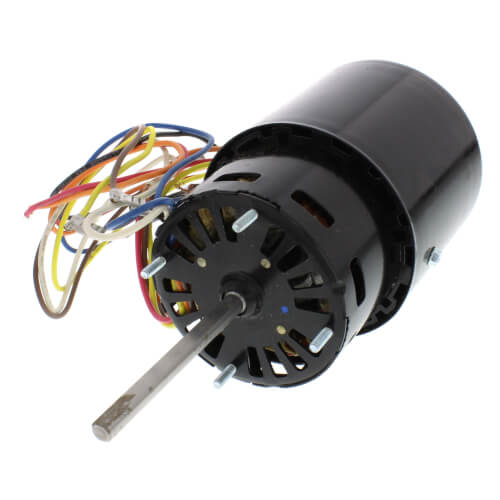

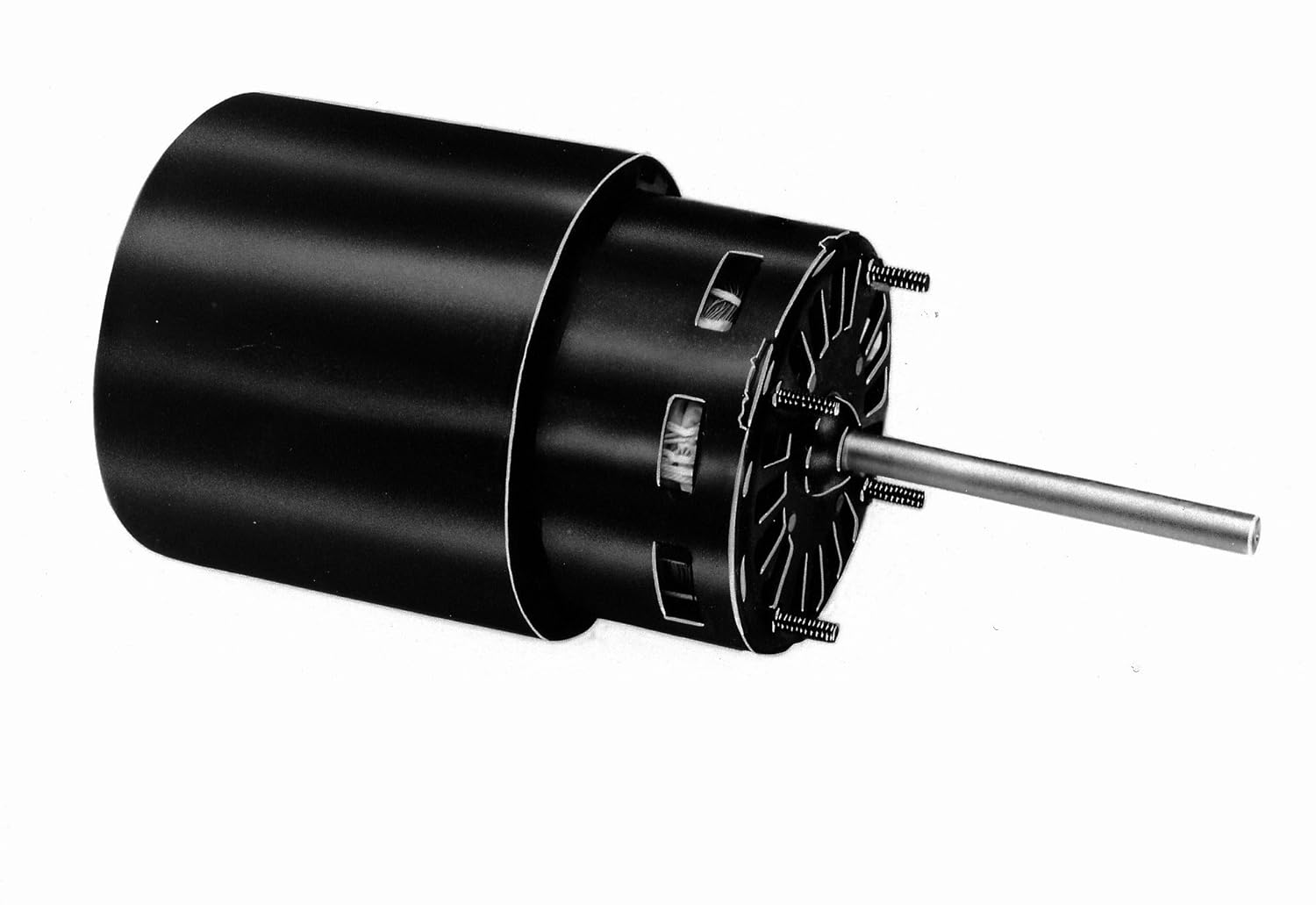

Fasco D504 Motor 1/8HP 115/230V 1500RPM

Product Description

Fasco Motors offers the D504, a 3.3 frame open ventilated permanent split capacitor self cooled motor. With sleeve bearings and a 1/8HP capacity, it operates at 1500 RPM. It supports 115/230V and runs at 60Hz with 1.6-0.8 amps. Ideal for a variety of mechanical duty applications.

• Open ventilated permanent split capacitor motor
• Thermally protected and UL recognized
• Reversible rotation

Product Highlights

The Fasco D504 motor features an open air-over design, ensuring effective cooling during operation. Its reversible rotation and thermally protected casing make it versatile and reliable for HVAC systems and industrial applications.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• Category: Motors
• Sub-Category: Fan and Blower Motor

Technical Specifications

• MPN: D504
• Horsepower: 1/8 HP
• RPM: 1500
• Voltage: 115/230V
• Amperage: 1.6-0.8 amps
• Frequency: 60Hz
• Phase: Single
• Frame Size: 3.3
• Motor Length: 5-1/2 inches
• Shaft Diameter: 5/16 inch
• Shaft Length: 3-1/2 inches
• Weight: 6.6 pounds
• Insulation Class: B
• Thermal Protection: Automatic
• Approvals: UL, CSA
• Country of Origin: Mexico
