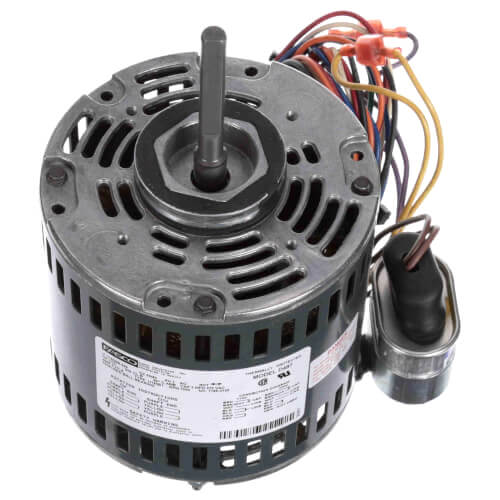

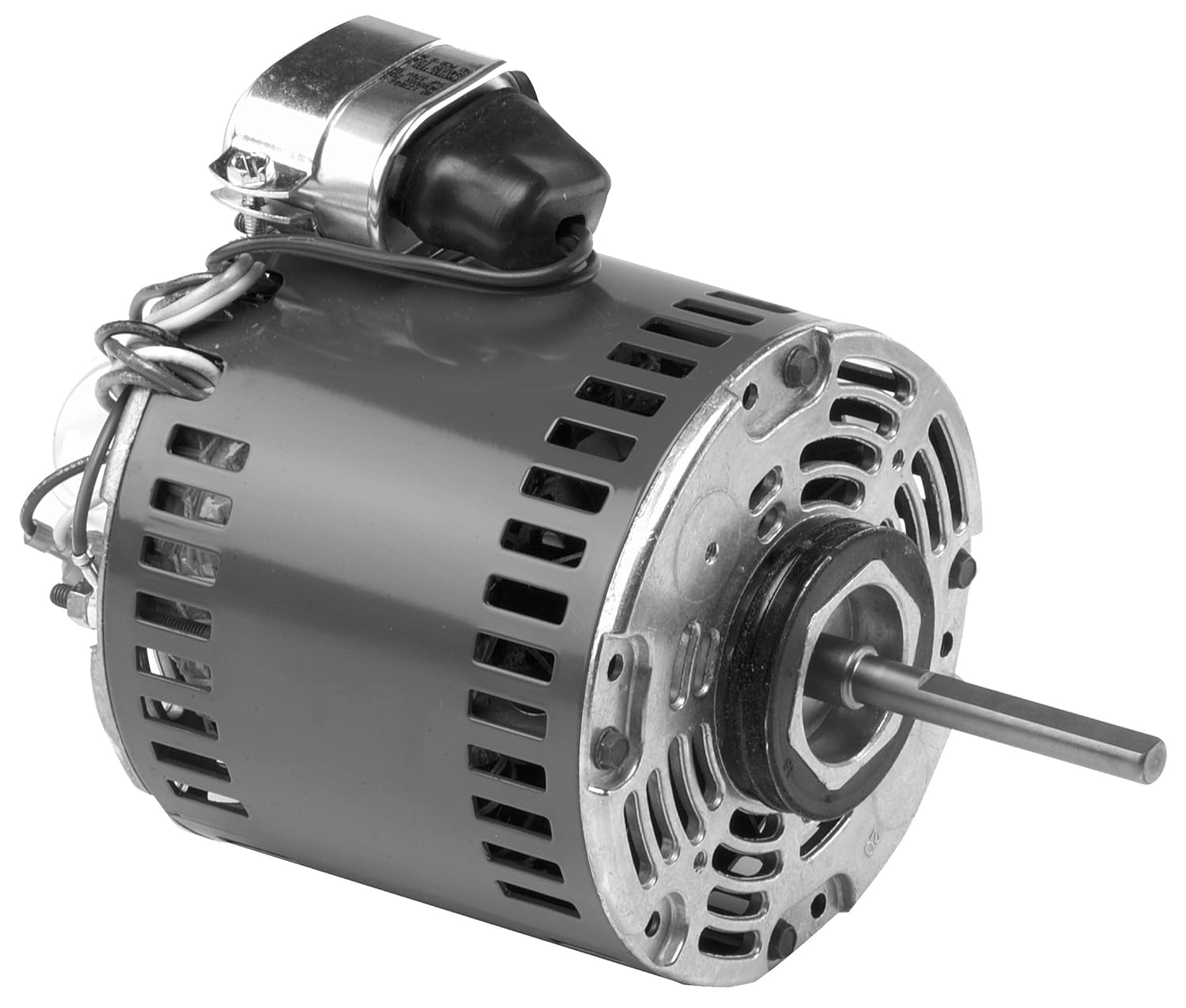

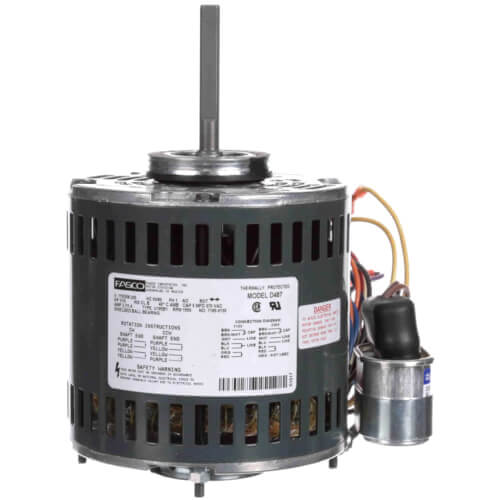

Fasco D487 5 Frame Open Ventilated Permanent Split Capacitor Refrigeration Fan Motor with Ball Bearing, 1/10HP, 1550RPM, 115/208-230V

Product Description

The Fasco D487 is a permanent split capacitor refrigeration fan motor designed for various cooling applications. It operates at a power of one-tenth horsepower with a speed of one thousand five hundred and fifty RPM. This motor is thermally protected and features an open air-over design, allowing for efficient cooling performance in HVAC systems.

• Voltage: 115/208-230 VAC
• Amperage: 2.7-1.4
• Ball bearing for enhanced durability

Product Highlights

This motor is ideal for condenser fan and heat pump systems. The reversible rotation feature allows for flexibility during installation and operation. The unit is UL recognized and CSA certified, ensuring compliance with industry standards.

Product Information

Standard Information

• Model: D487
• Manufacturer: Fasco Motors

Technical Specifications

• Frame Size: 5
• Horsepower: 1/10 HP
• RPM: 1550
• Phase: Single
• Insulation Class: B
• Enclosure Type: Open
• Ambient Temperature: 40°C
• Shaft Diameter: 0.375 inches
• Shaft Length: 3.15 inches
