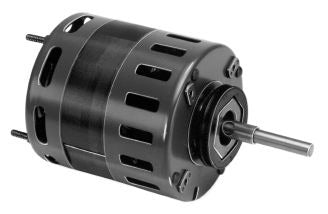

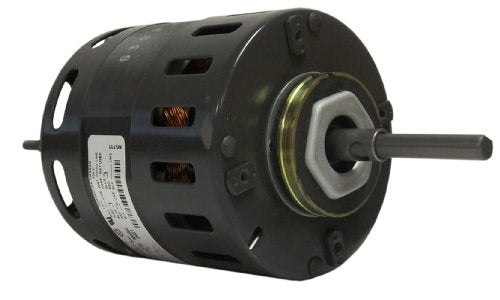

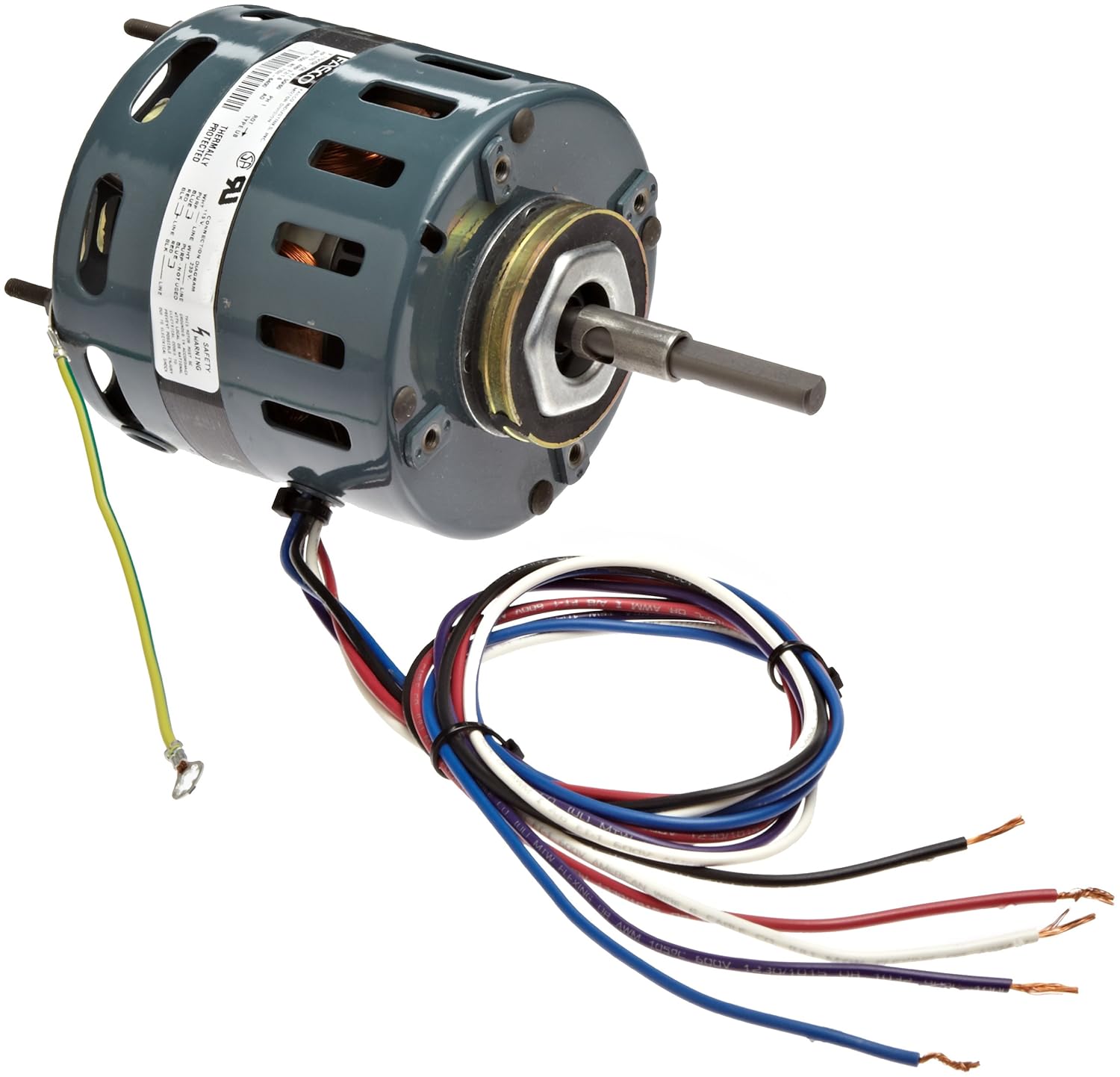

Fasco D483 4.4 Frame Open Ventilation Shaded Pole Refrigeration Fan Motor 1/15 HP 1550RPM 115/208-230V Sleeve Bearing CCW Rotation

Product Description

The Fasco D483 4.4 frame open ventilation shaded pole refrigeration fan motor is designed for demanding refrigeration applications. With a motor power of 1/15 HP, it delivers 1550 RPM and operates at 115/208-230V. The motor features a sleeve bearing, ensuring smooth performance and durability. It rotates counterclockwise at the shaft end, providing efficient airflow for temperature control.

• 4.4-inch frame diameter
• 1/15 HP for effective cooling
• 1550 RPM motor speed

Product Highlights

This refrigeration fan motor is built for efficiency and reliability. It incorporates a shaded pole design and is thermally protected to prevent overheating. The motor's sleeve bearing ensures long-lasting performance, and its open ventilation design promotes effective cooling.

Product Information

Standard Information

• Brand: Fasco
• Model: D483

Technical Specifications

• Frame Diameter: 4.4 inches
• Horsepower: 1/15 HP
• Speed: 1550 RPM
• Voltage: 115/208-230V
• Amperage: 3.2/1.6 amps
• Bearing Type: Sleeve
• Rotation: Counterclockwise Shaft End
• Shaft Diameter: 0.375 inches
