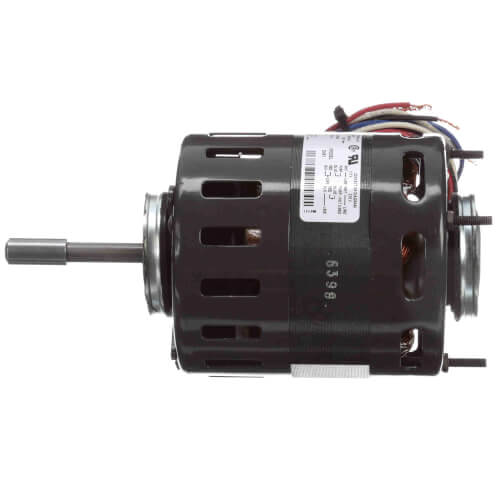

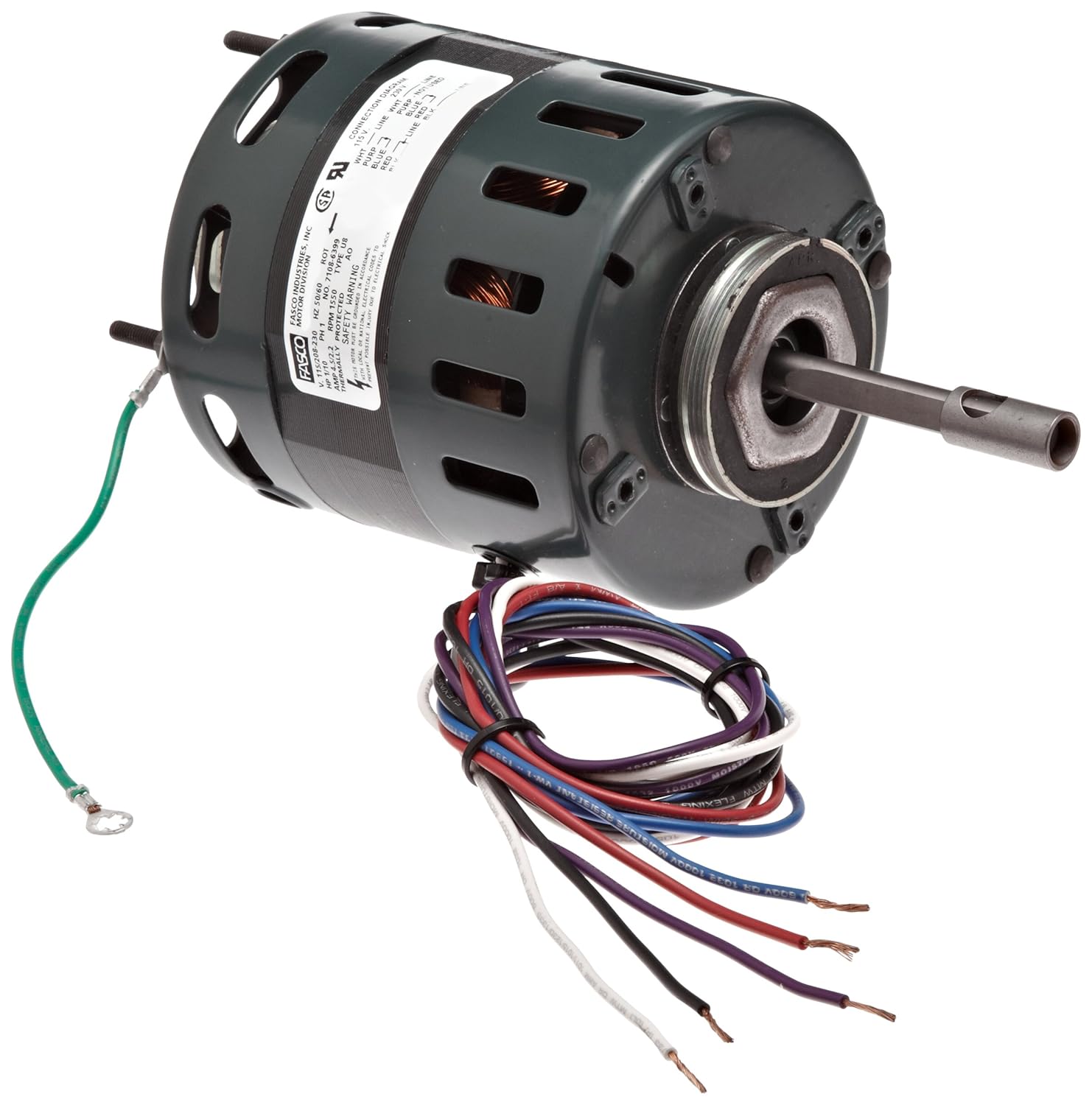

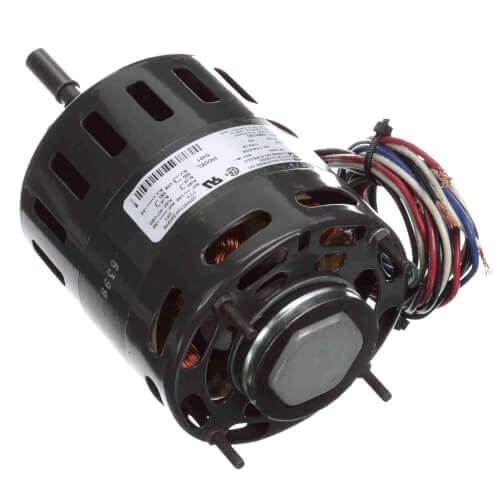

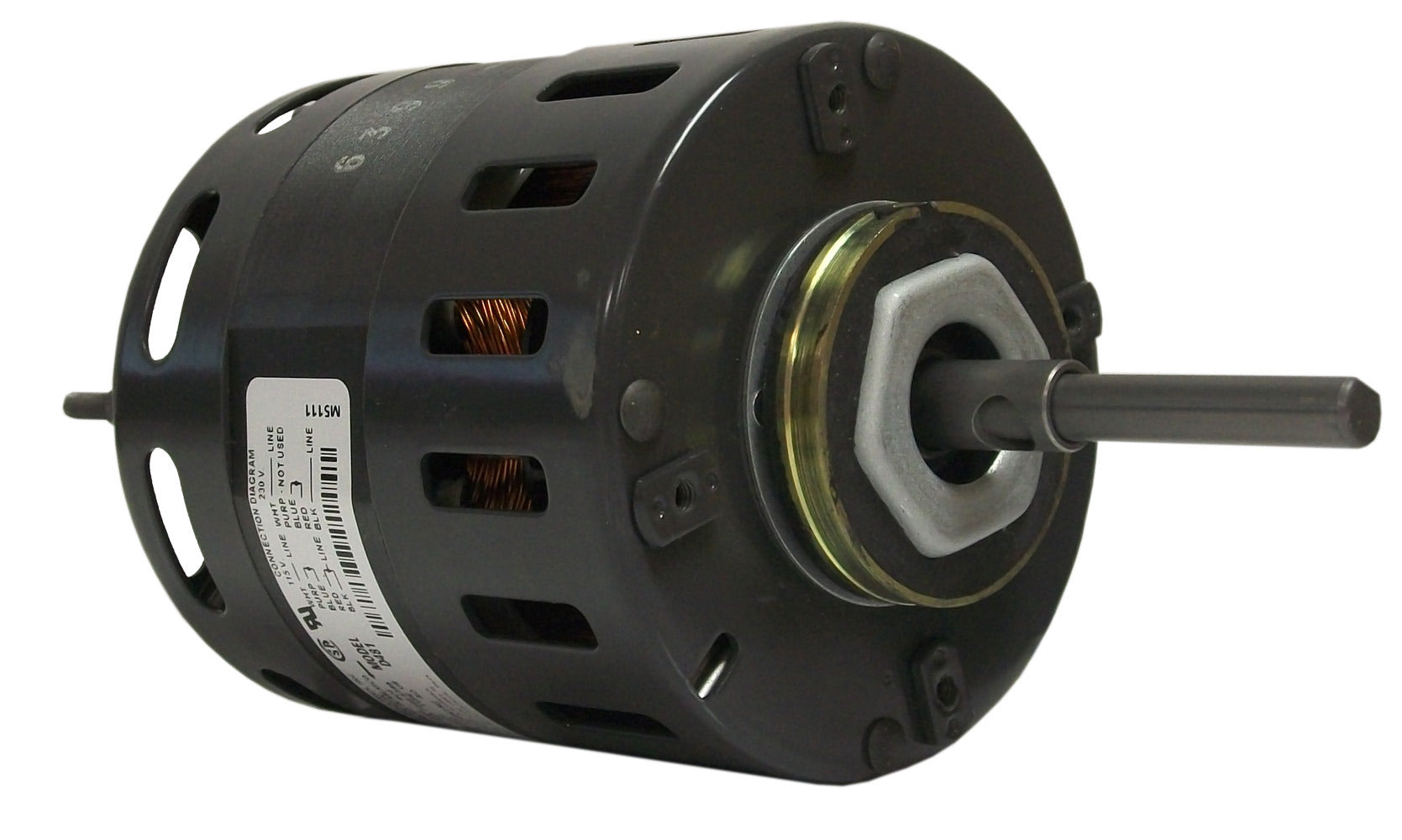

Fasco D481 Refrigeration Motor 1/10 HP 1550 RPM 115/208-230V

Product Description

The Fasco D481 is a shaded pole refrigeration fan motor designed for reliable performance in ventilation applications. This motor operates at one-tenth horsepower with a speed of one thousand five hundred fifty revolutions per minute. The voltage rating is either one hundred fifteen or two hundred eight to two hundred thirty volts, making it versatile for different setups. The D481 features a counterclockwise rotation shaft end and is thermally protected to ensure safety during operation.

• Thermally protected and UL recognized
• 1/10 HP with 1550 RPM
• Open air over enclosure

Product Highlights

The Fasco D481 motor is ideal for refrigeration fans, offering robust performance and durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D481

Technical Specifications

• Motor Type: Shaded Pole
• HP: 1/10
• Voltage: 115/208-230
• RPM: 1550
• Amperage: 4.5-2.2
• Phase: Single
• Bearings Type: Sleeve
• Enclosure Type: Open Air Over
• Frame Size: 4.4 inches
• Shaft Diameter: 3/8 inches
• Shaft Length: 3-1/8 inches
