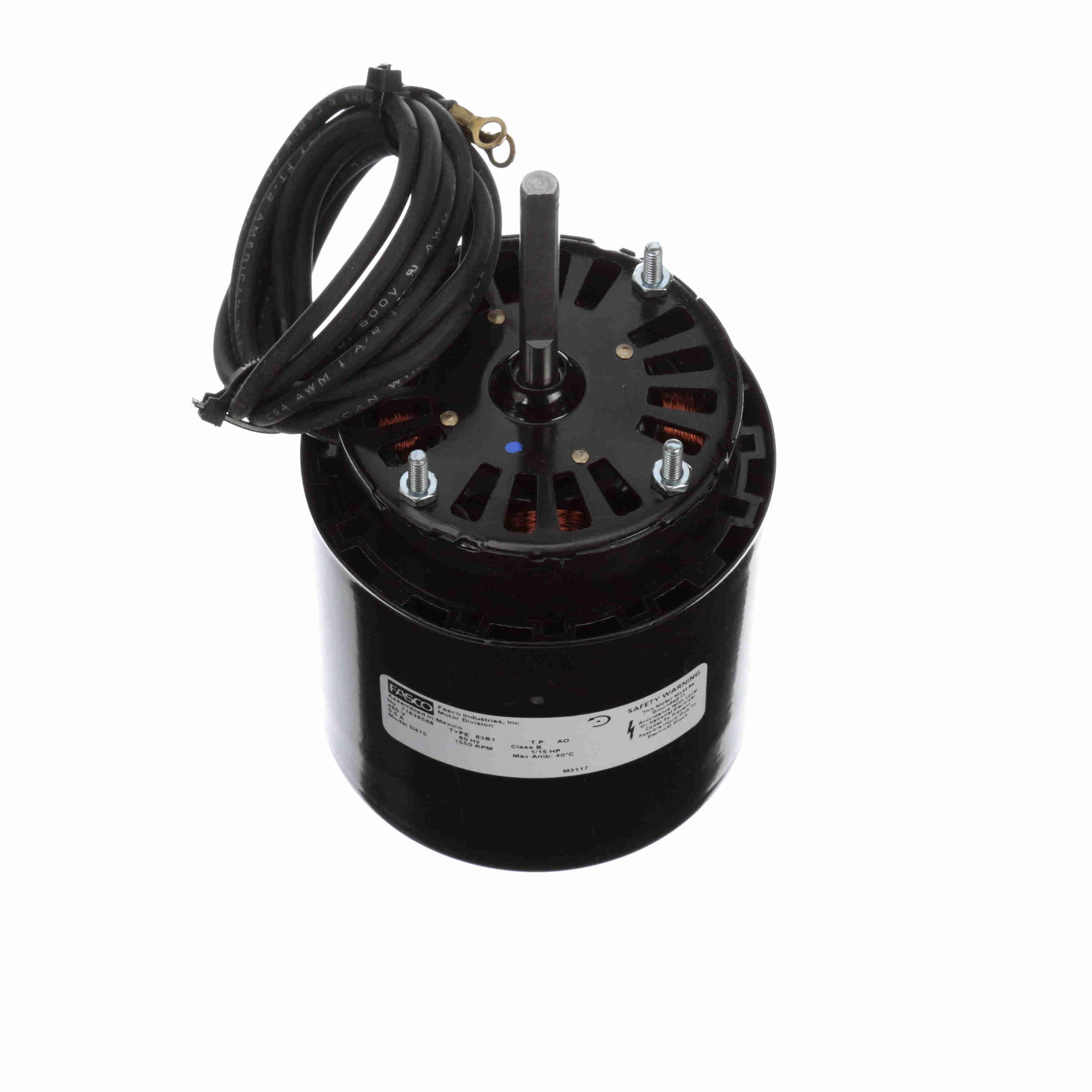

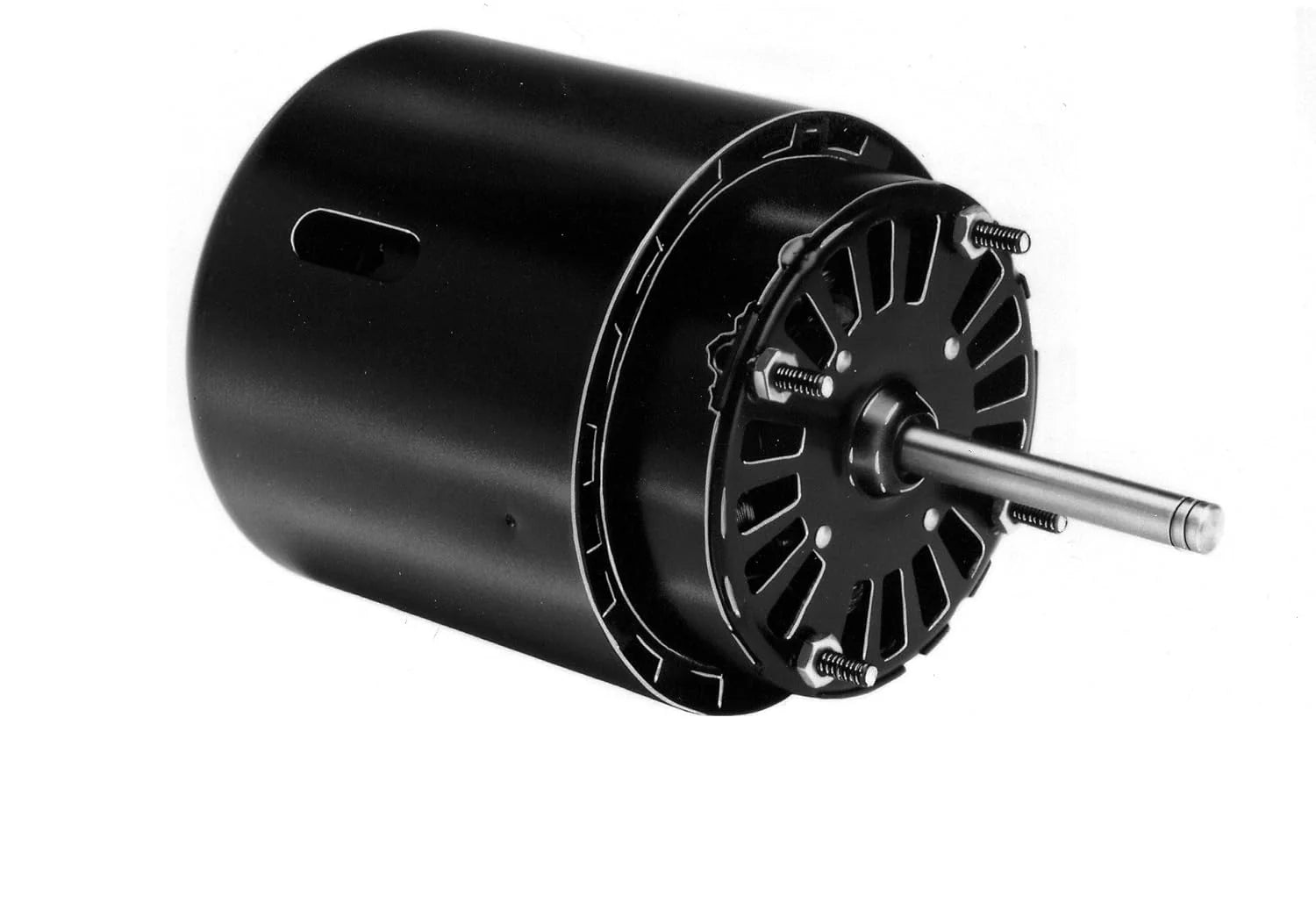

Fasco D475 4-Pole HVAC/R Motor Open Air Over 1/15 hp

Product Description

The Fasco D475 is a 4-Pole HVAC/R motor designed for OEM replacement applications. This motor features an open air over enclosure, suitable for various HVAC systems. It has a power rating of one-fifteenth horsepower, operates at four hundred sixty volts, and is compatible with one-phase systems.

• Standard speed of 1550 RPM
• Shaft diameter of 0.313 inches with a length of 2.5 inches
• Extended stud mounting for easy installation

Product Highlights

Ideal for HVAC applications, the Fasco D475 motor ensures reliable performance and ease of replacement with its shaded pole design.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer: Regal Beloit

Technical Specifications

• Type: 4-Pole
• Frame: 3.3
• Phase: 1
• Speed: 1550 RPM
• Material: Steel
• Rotation: CCWSE
• Dimensions: 3.3 inches diameter x 7.04 inches length
• Horsepower: 1/15 hp
• Shaft Size: 0.313 inches diameter x 2.5 inches length
• Bearing Type: Sleeve
• Mounting Type: Extended Stud
• Enclosure Type: Open Air Over
• Service Factor: 1
• Voltage Rating: 460 V
• Amperage Rating: 0.5 A
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Temperature Rating: 40 deg C
