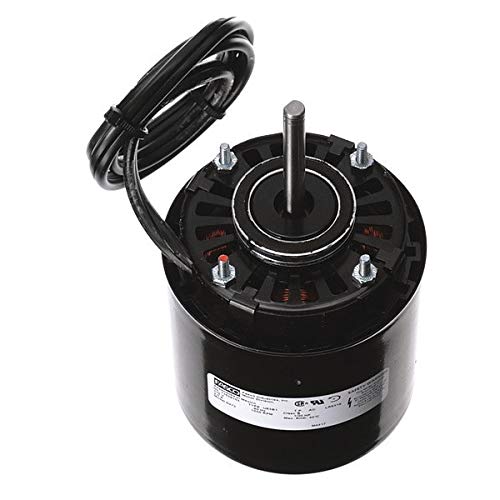

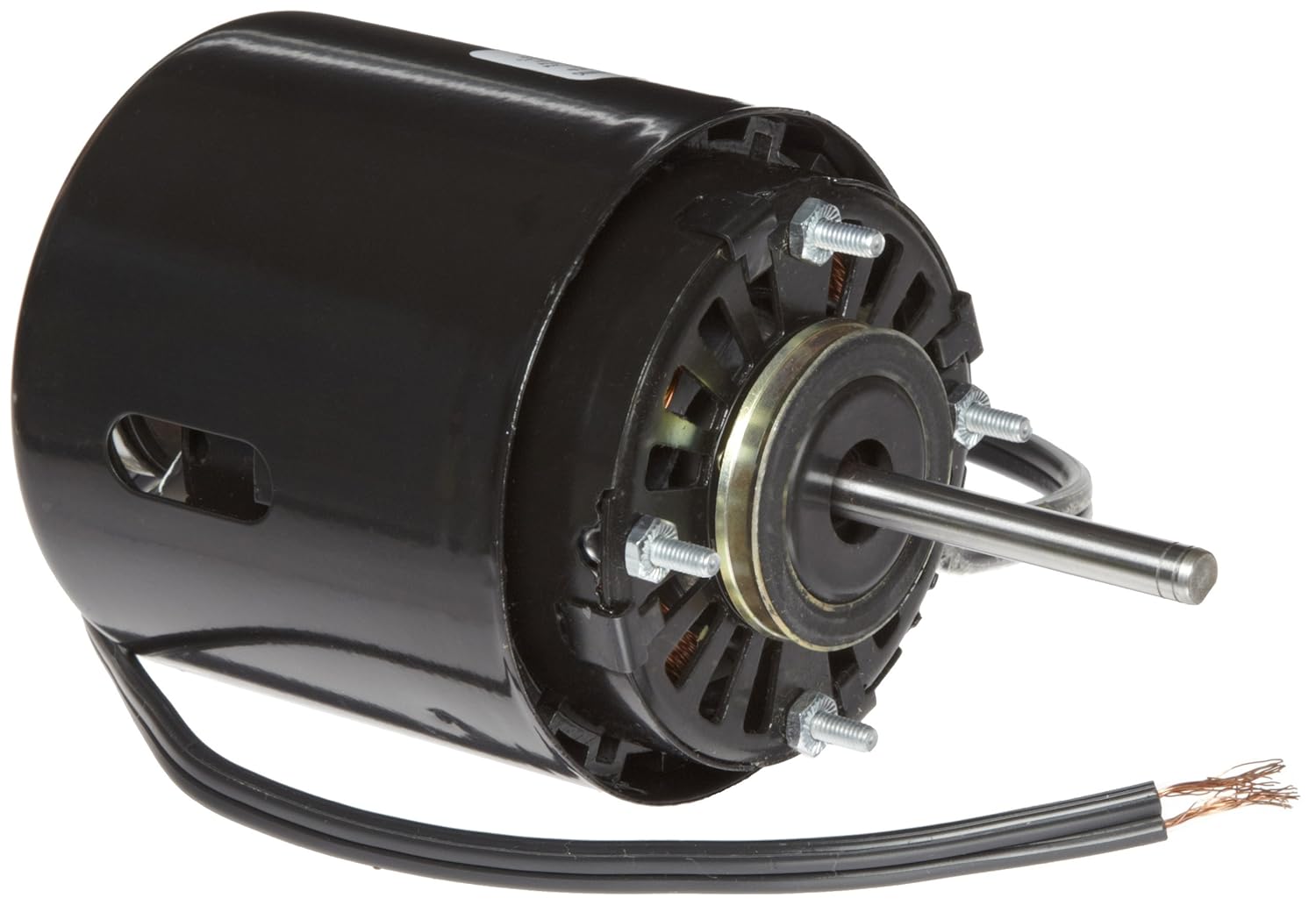

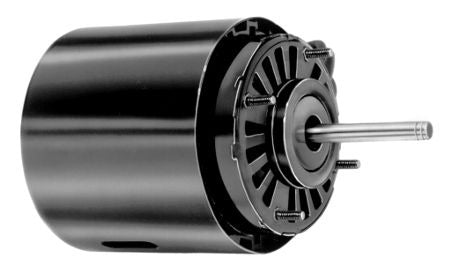

Fasco D473 Motor 1/20 HP 115V 1550 RPM Refrigeration

Product Description

The Fasco D473 motor is a shaded pole refrigeration fan motor with sleeve bearing. Designed with a 3.3-inch frame and an open ventilated enclosure, this motor operates at 1/20 horsepower and 1550 RPM. It runs on 115 volts and 60 Hz frequency.

• 1/20 HP power output
• 1550 RPM speed
• 115V operating voltage

Product Highlights

This Fasco motor is ideal for refrigeration applications. It features a counterclockwise shaft end rotation and is thermally protected for reliability and safety.

Product Information

Standard Information

• Brand: Fasco
• MPN: D473

Technical Specifications

• Model Name: D473
• Horsepower: 1/20 HP
• Speed: 1550 RPM
• Voltage: 115 Volts
• Amperage: 2.00 Amps
• Frequency: 60 Hz
• Frame Size: 3.3 inches
• Enclosure: Open Air Over
• Rotation: Counterclockwise Shaft End
• Bearing Type: Sleeve
• Mounting Type: Extended Studs
• Shaft Diameter: 5/16 inches
• Lead Length: 33 inches
• Ambient Temperature: 40 degrees C
• Insulation Class: B
• Motor Service Factor: 1
• Overall Length: 7.37 inches
• Weight: 4.6 lbs
