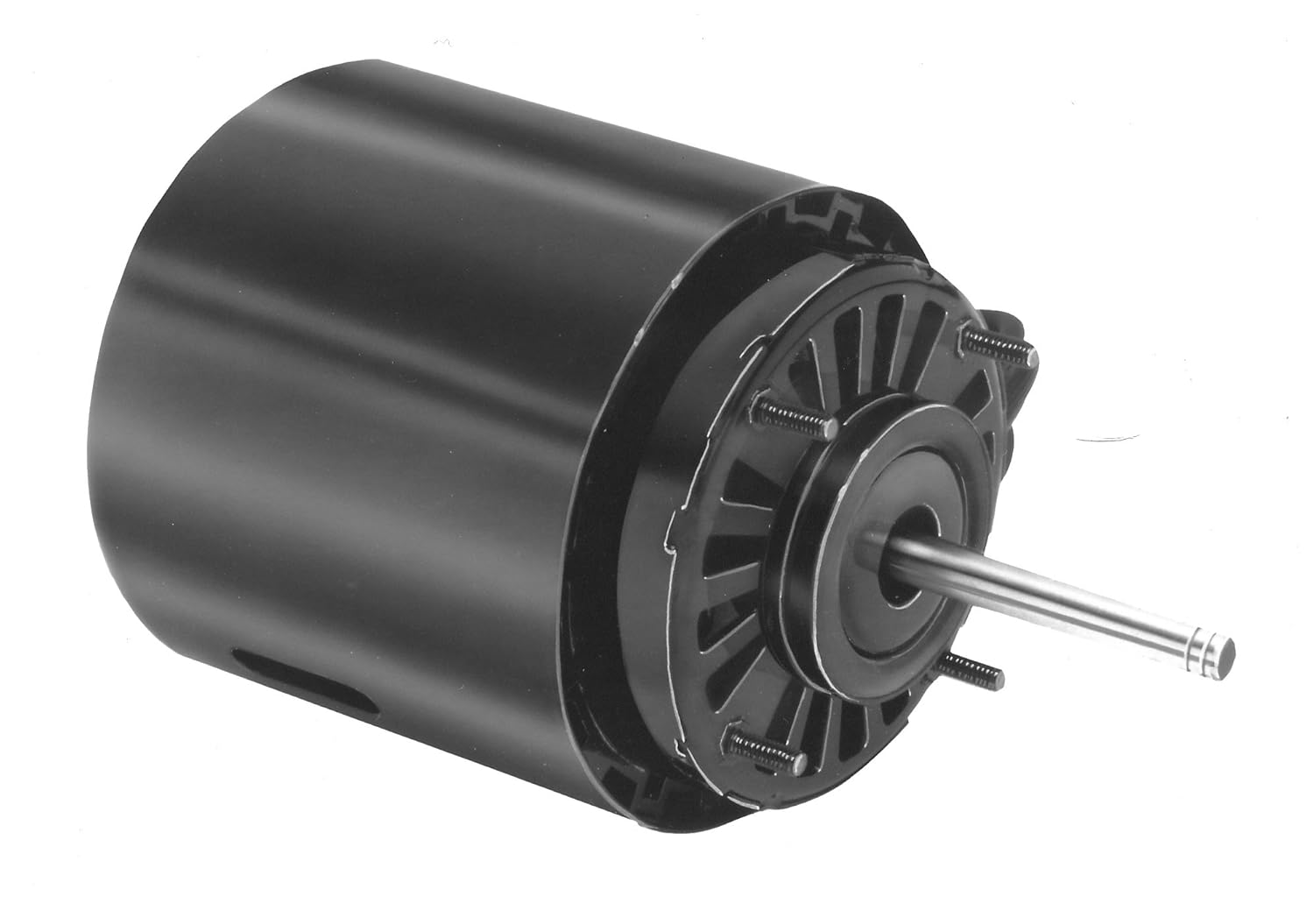

Fasco D472 3.3 Frame Open Ventilated Shaded Pole Refrigeration Fan Motor with Sleeve Bearing, 1/20HP, 1550RPM, 115V

Product Description

The Fasco D472 is a shaded pole refrigeration fan motor designed for various HVAC applications. This model operates at one-twentieth horsepower with a speed of one thousand five hundred fifty RPM at one hundred fifteen volts. Built with a sleeve bearing system, it is intended for durable performance in cooling systems.

• Power: 1/20 HP
• Voltage: 115V AC
• Speed: 1550 RPM

Product Highlights

This refrigeration motor is suitable for air-over applications, featuring an open air design for effective heat dissipation. It is equipped with an overload protection system, ensuring reliable operation under various thermal conditions.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model Number: D472
• Weight: 4.7 lbs

Technical Specifications

• Frame Size: 3.3 inches
• Amperage: 1.9 Amps
• Insulation Class: B
• Bearings Type: Sleeve
• Max Ambient Temperature: 40°C
• Mounting Type: Extended Studs
• Shaft Diameter: 0.313 inches
• Shaft Extension: 2.65 inches
