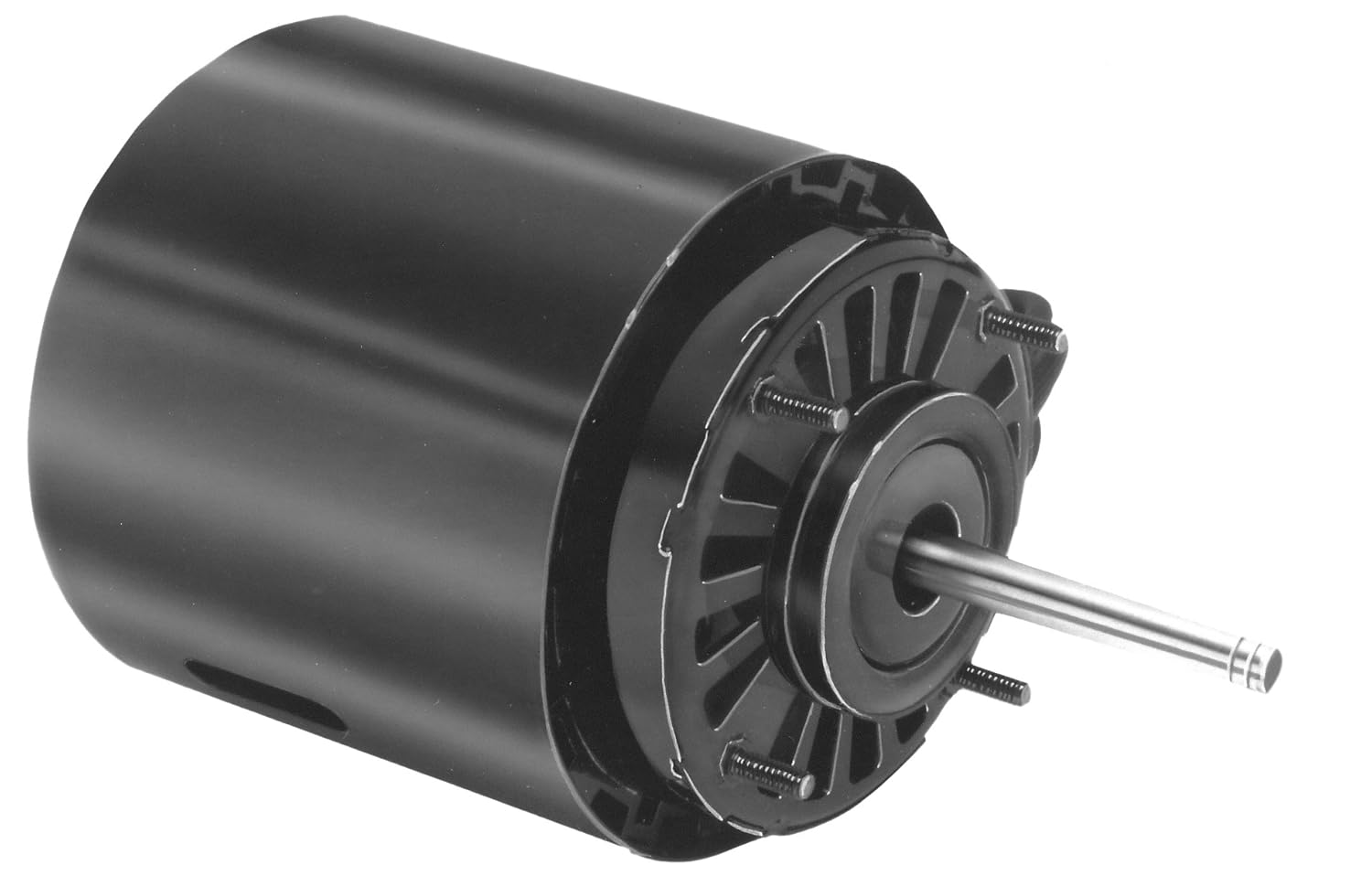

Fasco D470 Refrigeration Fan Motor 1/20 HP 1550 RPM 208-230V

Product Description

The Fasco D470 is a refrigeration fan motor with a horsepower rating of one-twentieth and operates at 1550 RPM. This single-phase motor design features a shaded pole configuration. It is rated for use at 208 to 230 volts and draws up to one amp during full load. This model is ideal for HVAC applications, providing efficient cooling.

• Single-phase operation
• 208-230 volts
• Lightweight design at approximately four pounds

Product Highlights

The D470 motor is thermally protected and features an open air-over enclosure, which enhances airflow. Its design allows for a maximum ambient temperature of 40 degrees Celsius. This motor also includes auto thermal protection and is compatible with 208 volts.

Product Information

Standard Information

• Brand: Fasco
• MPN: D470

Technical Specifications

• Voltage: 208-230 volts
• Horsepower: 1/20 HP
• RPM: 1550
• Frame Size: 3.3 inches
• Amperage: 1.00
• Mounting Type: Extended Studs
• Max Ambient Temperature: 40 degrees Celsius
• Insulation Class: B
• Shaft Type: Flat and Groove
• Thermal Protection: Auto
