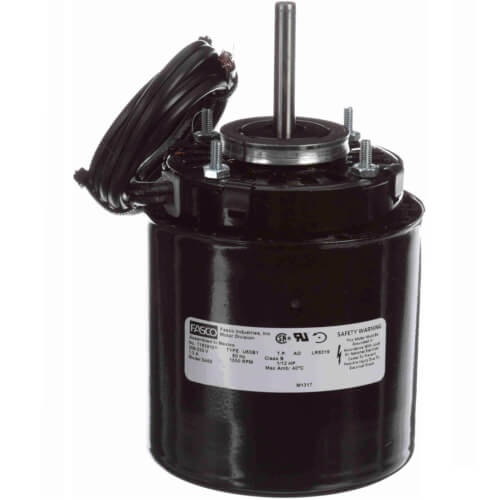

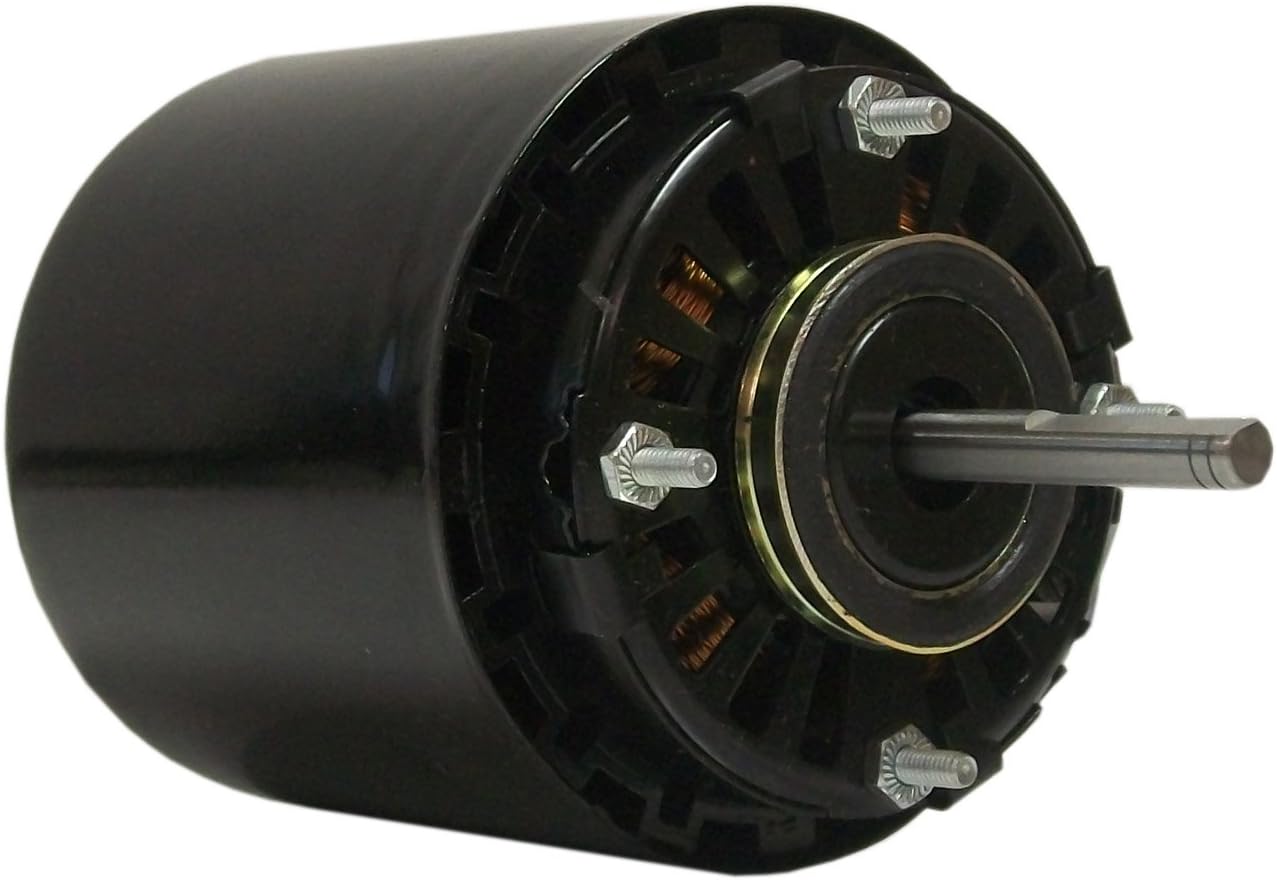

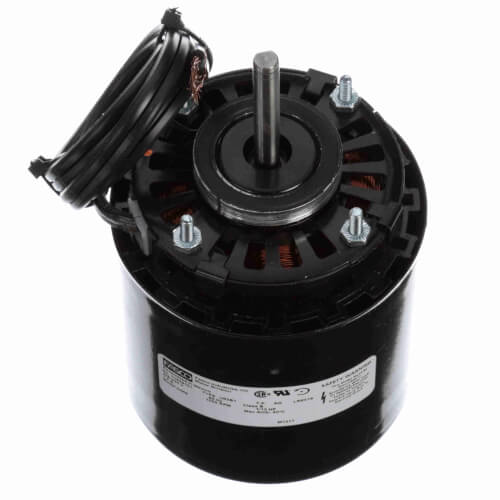

Fasco D469 Refrigeration Fan Motor 1/12 HP 208-230 Volts 1550 RPM OAO Enclosure CCWSE Rotation Sleeve Bearing

Product Description

The Fasco D469 Refrigeration Fan Motor, MPN D469, is a single-phase motor designed for refrigeration applications. It operates at 1550 RPM and is powered by 208-230 volts. This motor has a 1/12 HP rating, making it suitable for various refrigeration systems.

• 1/12 HP and 1550 RPM
• 208-230 Volts with 1.3 Amps
• Thermally protected with CCWSE rotation

Product Highlights

This shaded pole motor features an open air-over (OAO) enclosure and extended studs for mounting. Its sleeve bearing and flat & groove shaft design ensure reliable performance in cooling applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D469

Technical Specifications

• Voltage: 208-230 Volts
• Amperage: 1.3 Amps
• Horsepower: 1/12 HP
• Speed Rating: 1550 RPM
• Rotation: CCW Shaft End
• Bearings Type: Sleeve
• Enclosure: Open Air Over
• Frequency: 60 Hz
• Max Ambient Temperature: 40 Degrees C
• Mounting Type: Extended Studs
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.2 inches
• Insulation Class: B
• Standards: UL Recognized, CSA Certified
