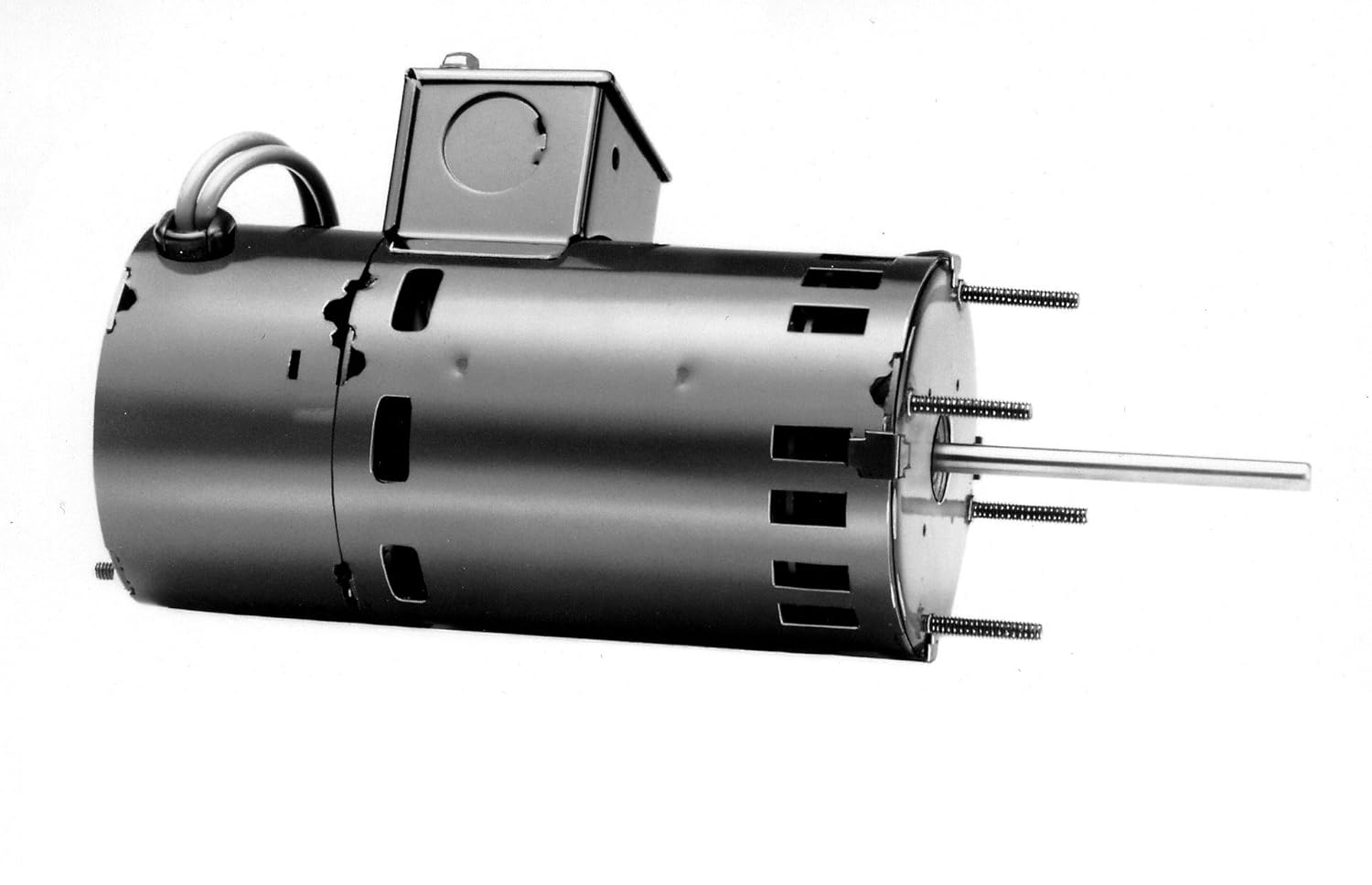

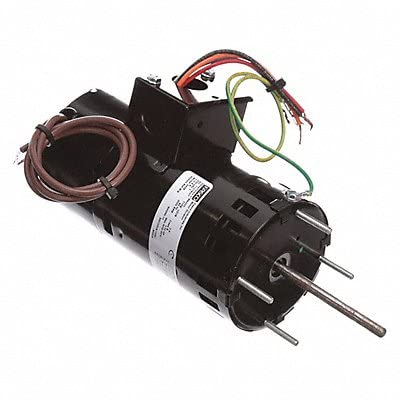

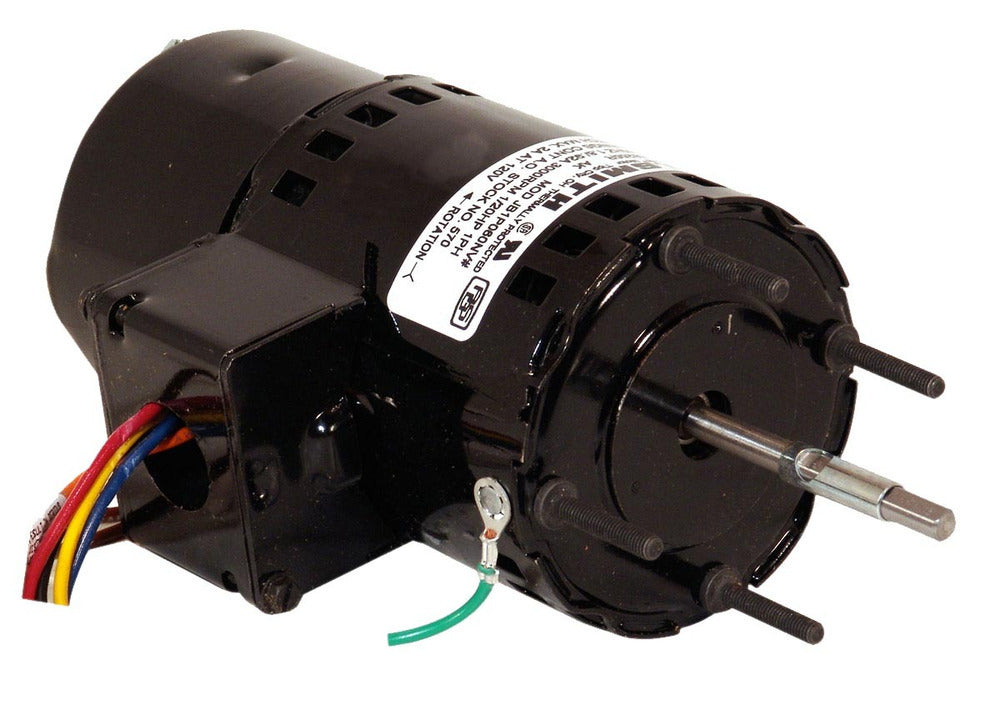

Fasco D459 OEM Replacement Motor 1/30HP 3000RPM 208-230V 60Hz

Product Description

The Fasco D459 OEM Replacement Motor is designed for use in HVAC systems, providing reliable performance with a shaded pole motor and ball bearing structure. MPN D459.

• Ideal for condenser fan applications
• Fits OEM replacement needs
• Thermally protected

Product Highlights

This OEM replacement motor is designed for use in HVAC systems, particularly as a condenser fan motor. It features a shaded pole motor design, ensuring durability and performance. The motor is thermally protected and operates at 3000 RPM.

Product Information

Standard Information

• Brand: Fasco
• MPN: D459

Technical Specifications

• Power: 1/30HP
• Speed: 3000 RPM
• Voltage: 208-230V
• Frequency: 60Hz
• Amperage: 1.2/0.6
• Phase: Single
• Shaft Rotation: Clockwise Shaft End
• Mounting Type: Extended Studs
• Enclosure: Open Air-Over
• Insulation Class: B
• Bearings: Ball
• Shaft Diameter: 0.25 inches
• Shaft Length: 3 inches
• Frame Diameter: 3.3 inches
• Max Ambient Temp: 40 degrees C
• Replacements: Carrier AB1S029
