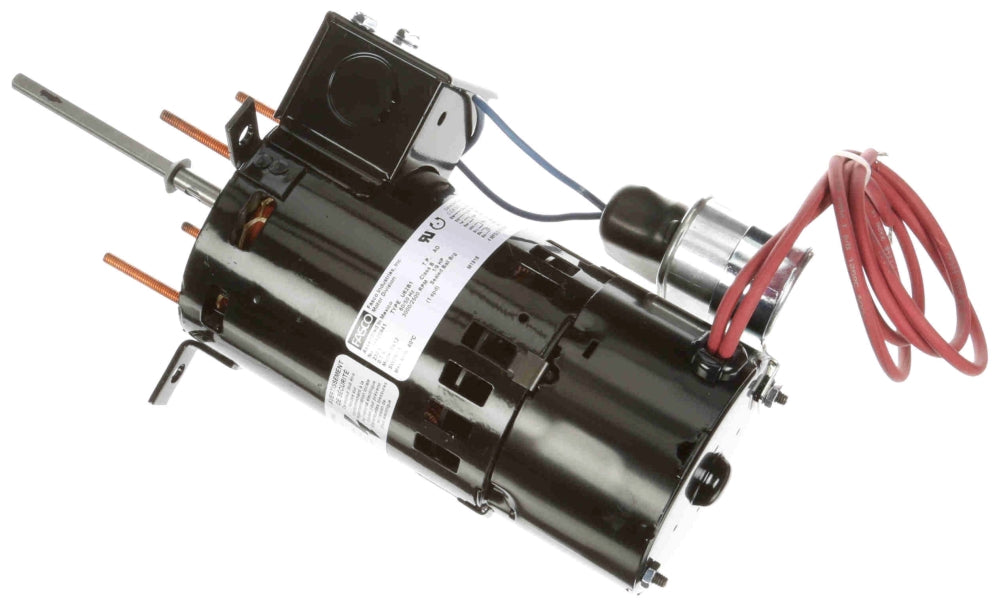

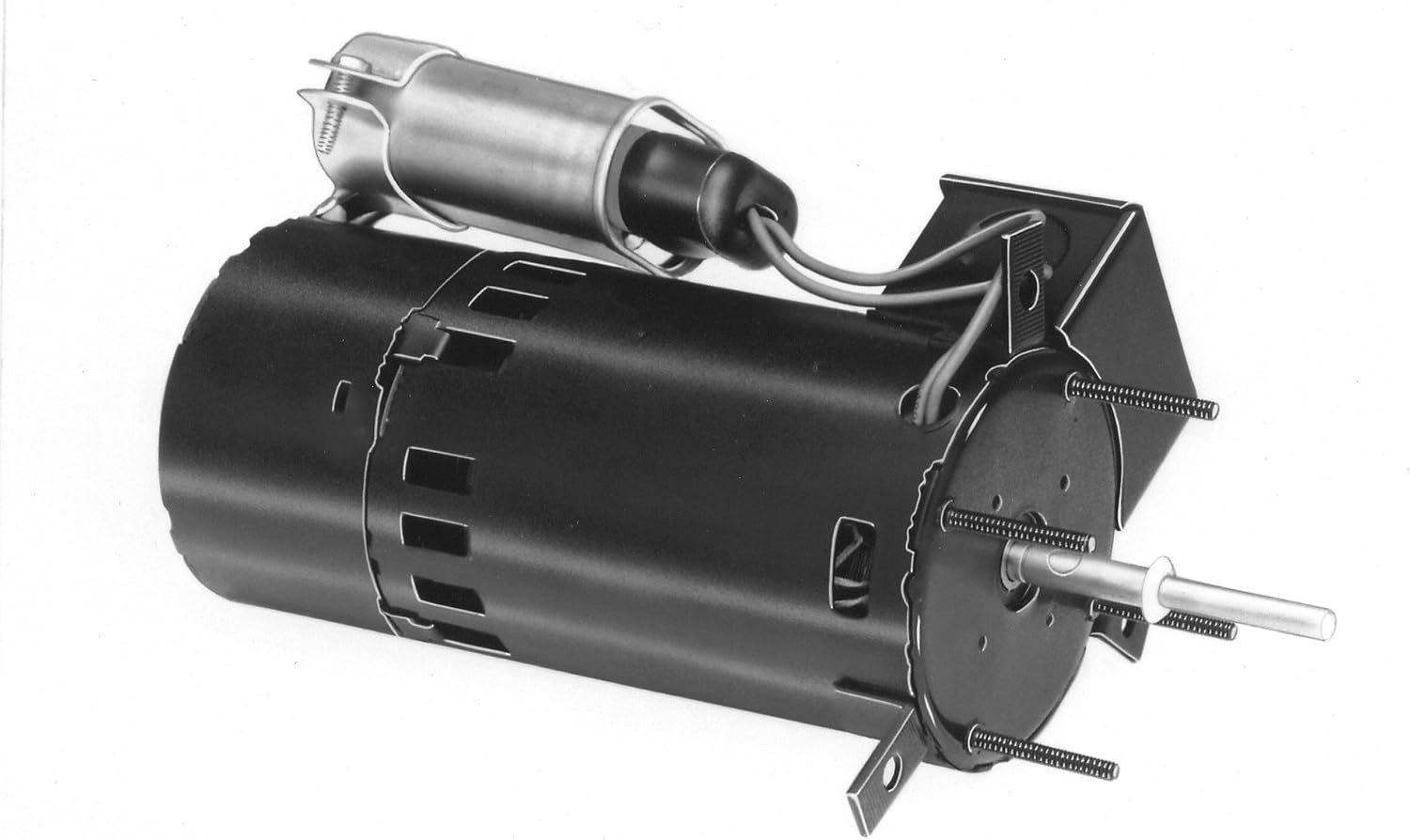

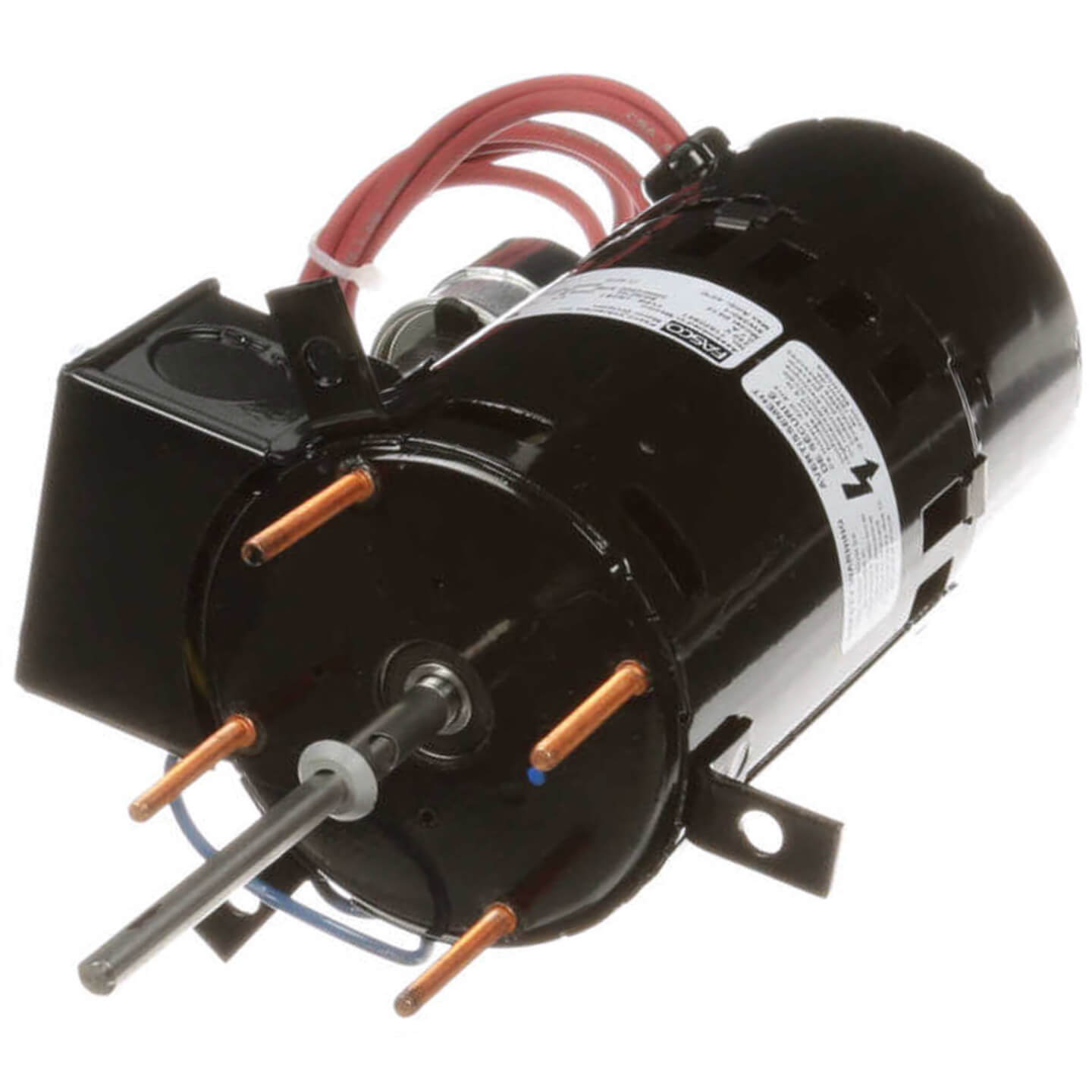

Fasco D412 1/9 HP 3000 RPM 230 Volts Fan Motor

Product Description

The Fasco D412 1/9 HP Fan Motor provides reliable performance for various applications. It operates at 3000 RPM and requires a 230-volt single-phase power supply. Featuring a permanent split capacitor design, this motor is thermally protected and offers reversible rotation.

• 1/9 HP power rating
• 3000/2500 RPM speed
• 230 Volts single-phase voltage

Product Highlights

This motor is ideal for HVAC and draft inducer applications, delivering consistent performance with a steel frame and flat shaft design.

Product Information

Standard Information

• Brand: Fasco
• MPN: D412

Technical Specifications

• Power Rating: 1/9 HP
• Voltage: 230 Volts AC 1-Phase
• Speed: 3000/2500 RPM
• Motor FLA: 0.7 Amp
• Insulation Class: B
• Mounting: Extended Studs
• Frame Material: Steel
• Shaft Type: Flat
• Bearings: Ball
• Enclosure Type: Semi Enclosed, Open Air-Over
• Application: Draft Inducer
• Approval: UL, CSA
• Weight: 6 Pounds
• Length: 13 inches
• Width: 5.5 inches
• Height: 4.56 inches
• Ambient Temperature Rating: 40 Degrees Celsius
• Frame Length: 4.5 inches
• Size: 3.3 inches Diameter x 10.57 inches Length
• Shaft Size: 0.25 inches Diameter x 3.8 inches Length (Extension)
• Starting Method: Across the Line
• Includes: 21 Inch Lead and Switch Lead
