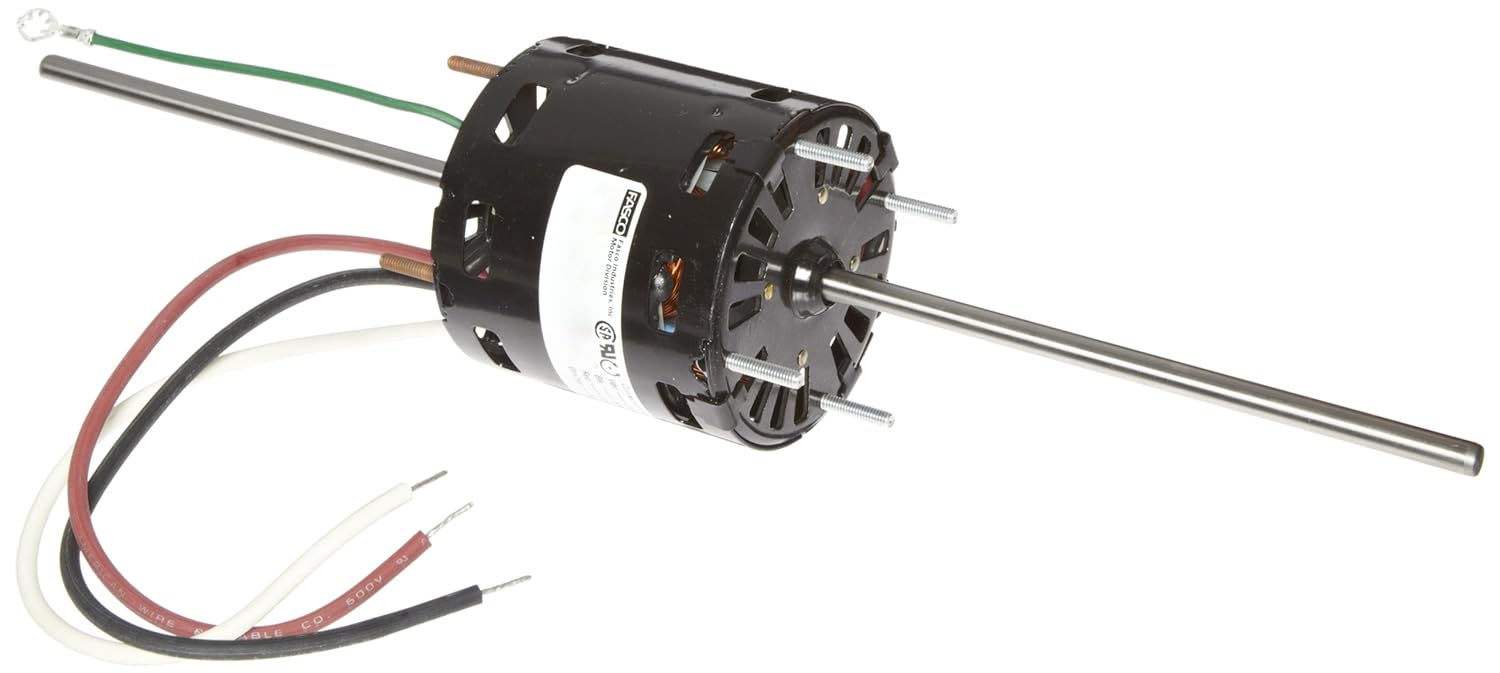

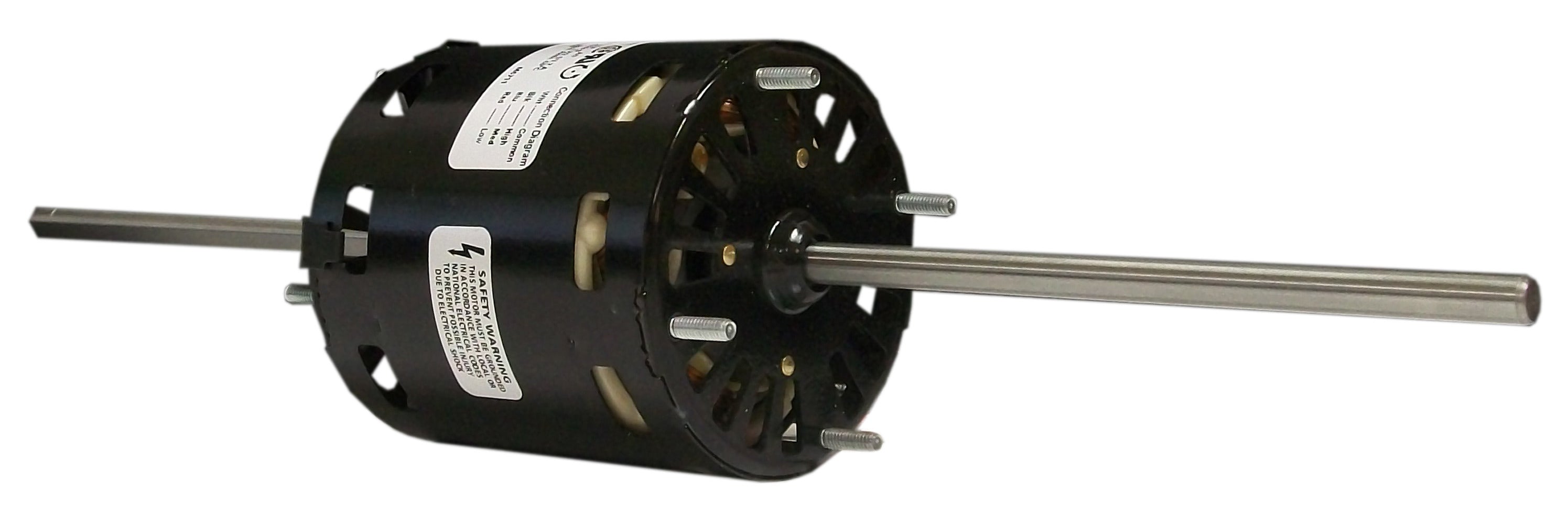

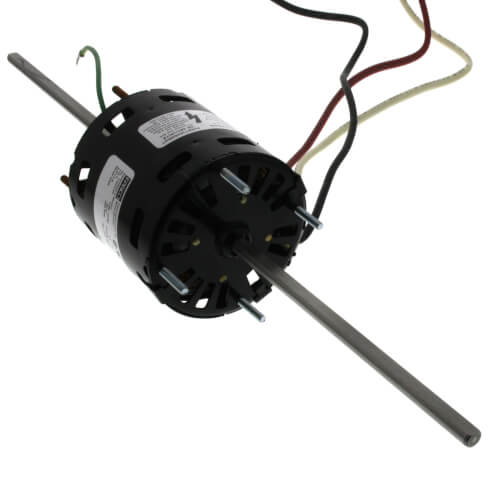

Fasco D366 3.3 Frame Open Ventilated Shaded Pole Window A/C Motor with Sleeve Bearing, 1/14-1/25HP, 1550rpm, 115V, 60Hz, 2.5-1.5 amps

Product Description

The Fasco D366 is a 3.3 frame open ventilated shaded pole window A/C motor with a sleeve bearing and an automatic thermal protector. This motor is a versatile choice for HVAC applications, offering a reliable solution with a double shaft end rotation. It is interchangeable with most window air-conditioner motors and certified by both UL and CSA.

• Sleeve bearing
• Thermally protected
• Double shaft end rotation

Product Highlights

This motor operates on 115V at 60Hz with a 1/14-1/25 horsepower rating. It features two speeds and an operational speed of 1550rpm, efficiently powering window air conditioners. Its open ventilated design ensures optimal cooling and prolonged motor life.

Product Information

Standard Information

• Brand: Fasco
• MPN: D366

Technical Specifications

• Horsepower: 1/14-1/25 HP
• Voltage: 115V
• Speed: 1550rpm
• Amperage: 2.5-1.5 amps
• Bearings: Sleeve bearing
• Rotation: Double shaft end
• Frame Size: 3.3
• Shaft Diameter: 0.313 inches
• Shaft Extension: 6.375 inches
• Certifications: UL, CSA
