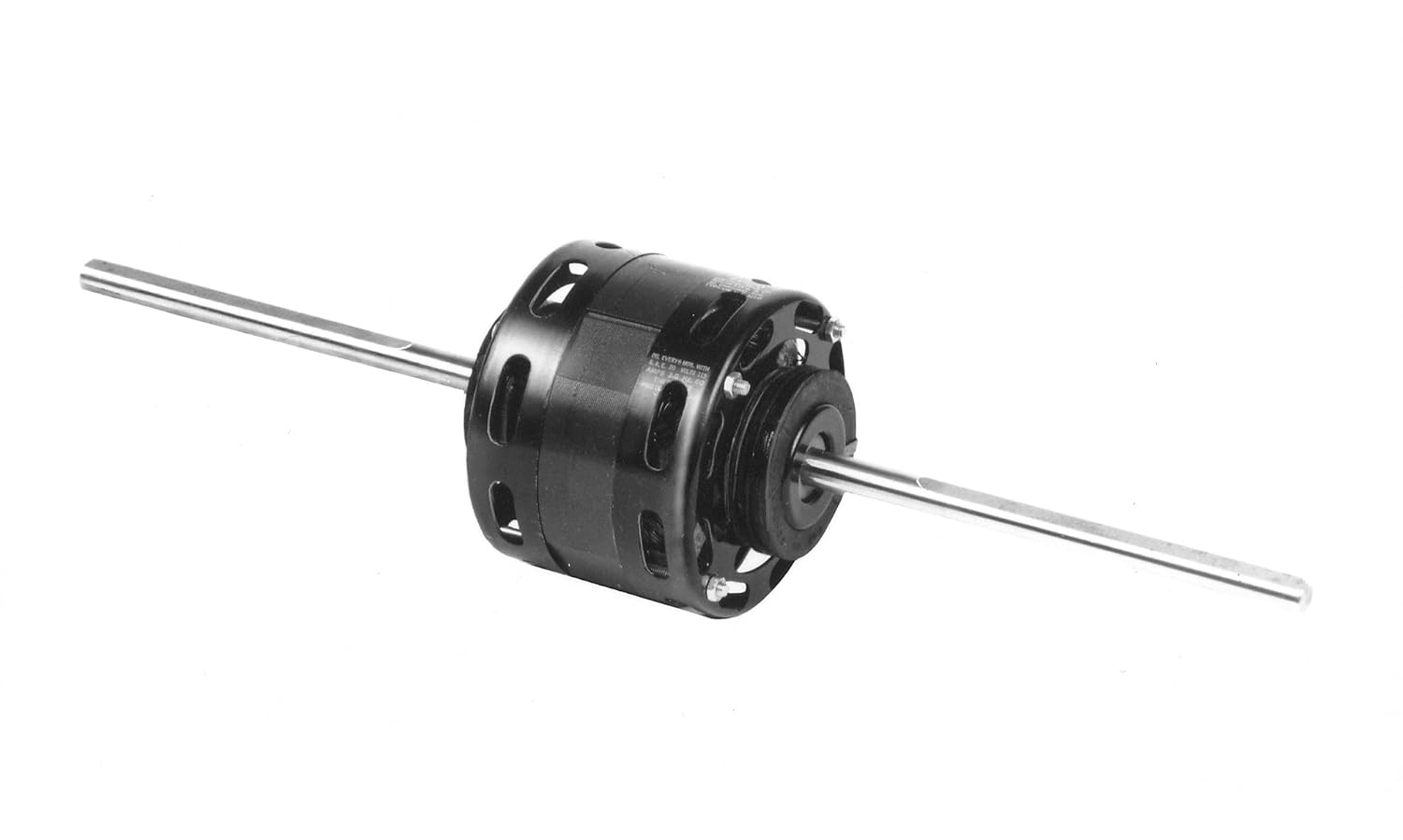

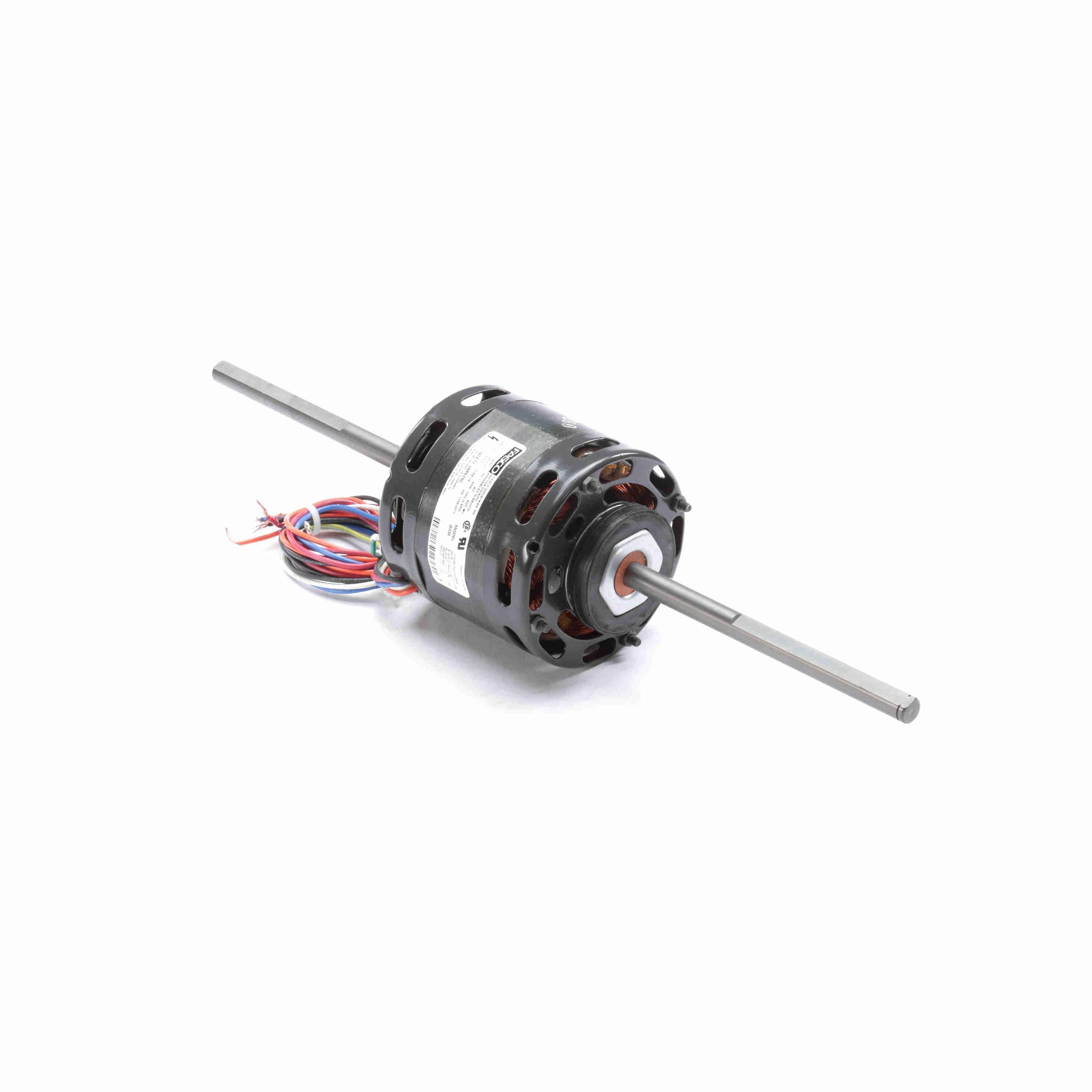

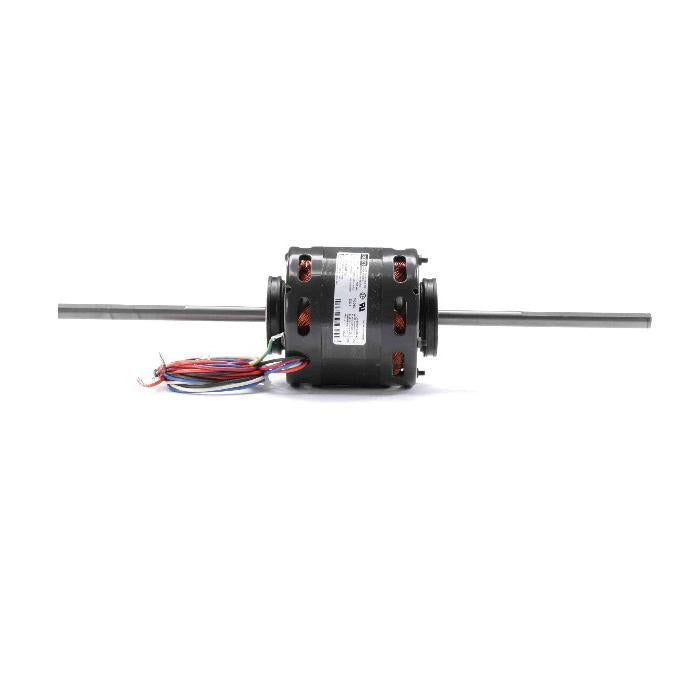

Fasco D338 HVAC/R Fan Coil Motor 115V 1/6-1/10-1/12-1/15 hp 1550 RPM

Product Description

The Fasco D338 is a versatile HVAC/R motor suitable for fan coil and air-conditioning applications. This 4-speed motor operates at 1550 RPM with a power range from 1/6 to 1/15 HP. Designed with an open air-over enclosure, it is thermally protected and features a reversible rotation.

• 115V, 60Hz, single phase
• 4-speed motor with 1550 RPM
• Thermally protected with sleeve bearing

Product Highlights

Ideal for HVAC and air conditioning systems, the Fasco D338 motor ensures reliable performance. Equipped with a resilient ring mounting, it provides stable operation. This motor is compliant with CSA and UL standards, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Fasco
• Model: D338
• Application: HVAC/R, fan coil, room air conditioner

Technical Specifications

• Frame: 4.4
• Voltage Rating: 115 V
• Speed: 1550 RPM
• Horsepower: 1/6 to 1/10 to 1/12 to 1/15 HP
• Phase: Single
• Amperage Rating: 5.4 to 3.2 to 2.5 to 2.1 A
• Frequency: 60 Hz
• Bearing Type: Sleeve
• Mounting Type: Resilient Ring
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Dimensions: 4.4 in Diameter x 18.63 in Length
• Shaft Size: 1/2 in Diameter x 7-1/4 in Length
• Service Factor: 1
• Insulation Class: Class A
• Country of Origin: Mexico
