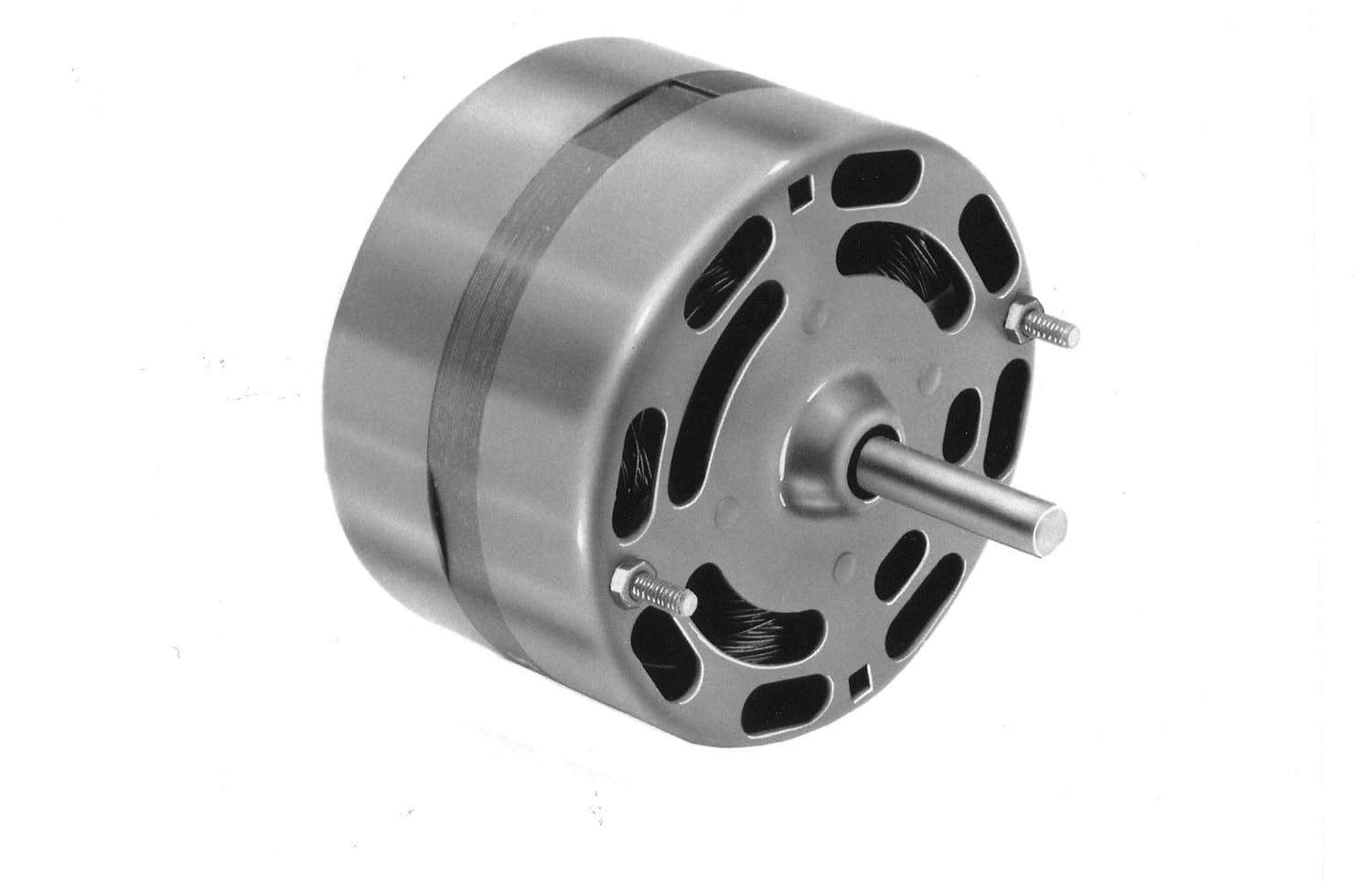

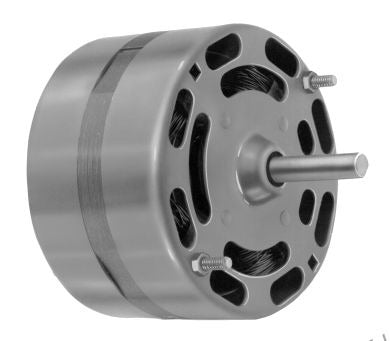

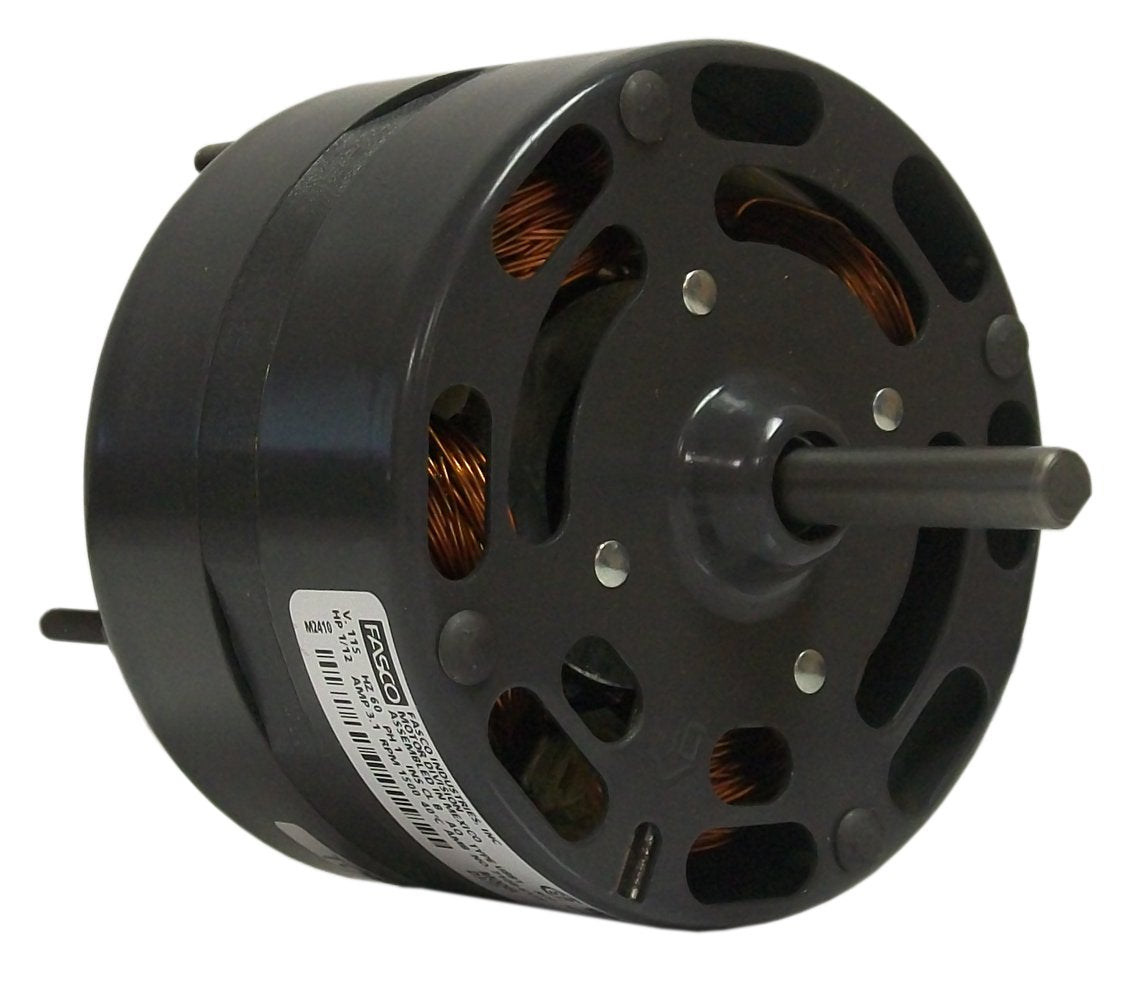

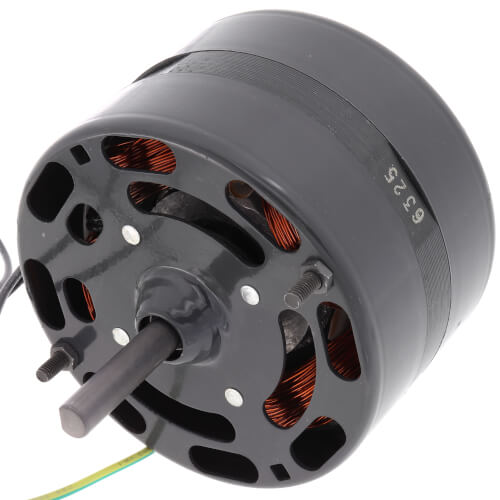

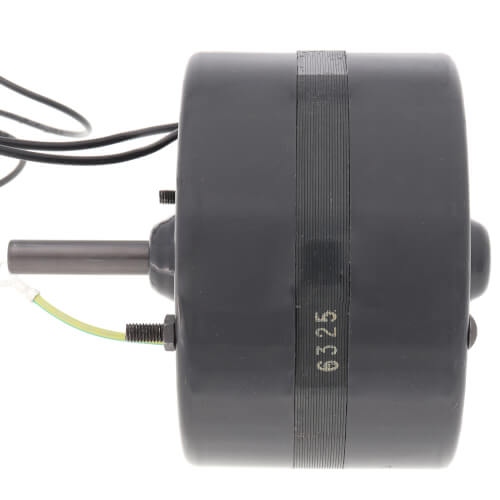

Fasco D310 Ventilated Shaded Pole Motor 1/12 HP 1550 RPM 115V 60Hz

Product Description

The Fasco D310 Ventilated Shaded Pole Motor is a versatile motor used in various applications. It is suitable for HVAC systems and other general-purpose uses. This product features a 1/12 horsepower motor operating at 1550 RPM with a voltage of 115V and frequency of 60Hz. The motor has a sleeve bearing and is thermally protected, making it reliable and efficient for prolonged use.

• Frame diameter 4.4 inches
• 1/12 HP
• 1550 RPM

Product Highlights

The Fasco D310 motor is designed for durability and efficiency. Its sleeve bearing ensures smooth operation, while the thermal protection safeguards the motor from overheating. Suitable for fan and blower applications, this motor is a reliable choice for trade professionals.

Product Information

Standard Information

• Motor Type: Shaded Pole
• HP: 1/12
• Voltage: 115V

Technical Specifications

• Speed: 1550 RPM
• Amperage: 4.0 amps
• Bearing Type: Sleeve
• Protection: Thermally Protected
• Rotation: Clockwise Shaft End
• Shaft Diameter: 0.375 inches
• Shaft Extension: 1.9 inches
• Insulation Class: A
