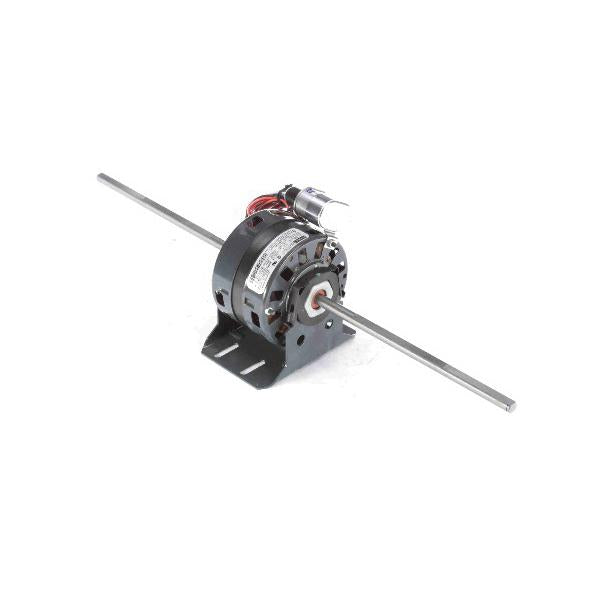

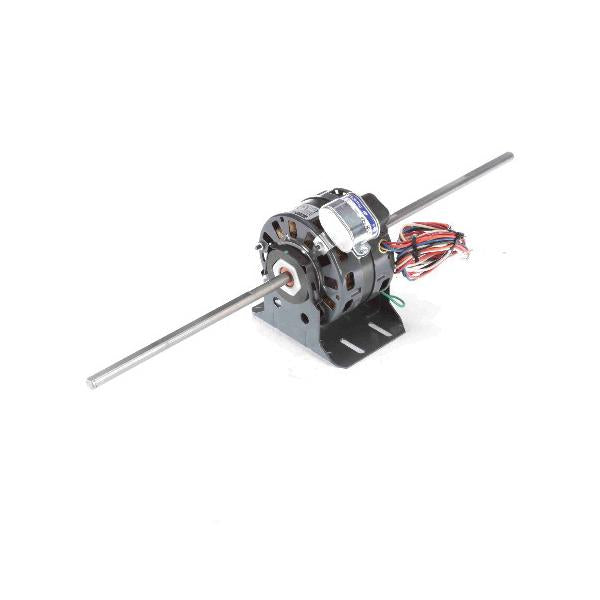

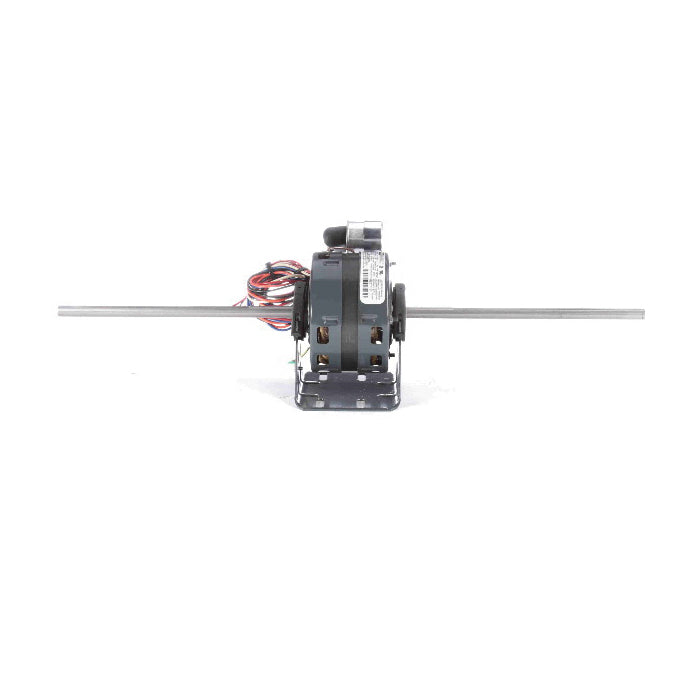

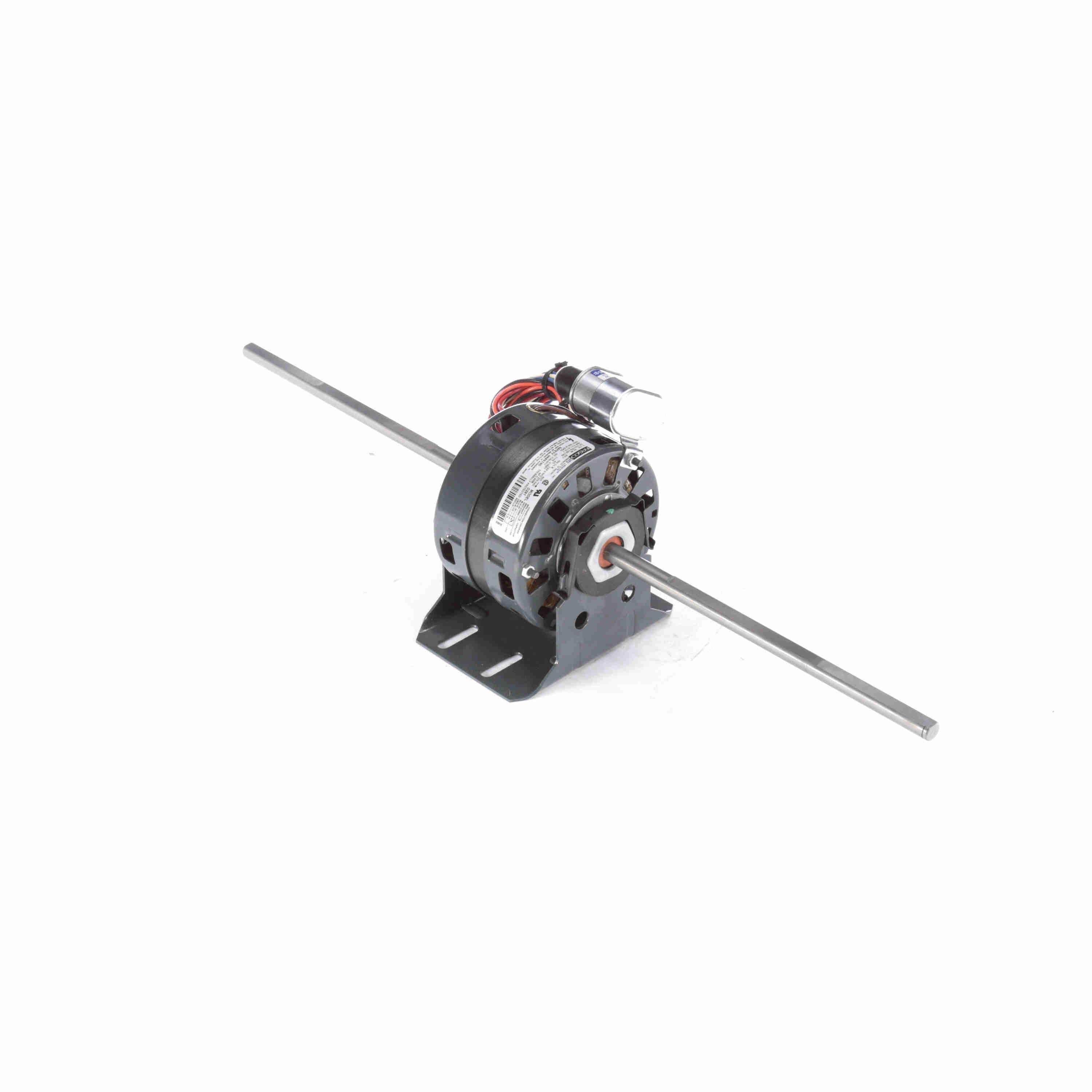

Fasco D291 6-Pole Continuous Duty HVAC/R Motor 1/10-1/15-1/25-1/40 hp

Product Description

The Fasco D291 6-Pole Continuous Duty HVAC/R Motor is designed for efficient performance in fan coil and room air conditioner applications. This motor operates with a range of horsepower from one-tenth to one-fortieth and supports various amperage ratings for flexible electrical usage. The motor features a 115 volt single-phase electrical input and operates at a speed of 1050 revolutions per minute, making it suitable for continuous duty applications.

• 4-speed operation for versatile airflow control
• Resilient base mounting for easy installation
• Thermally protected with automatic overload protection

Product Highlights

This motor is well-suited for HVAC systems, providing reliable airflow for cooling and heating applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D291

Technical Specifications

• Horsepower: 1/10 to 1/15 to 1/25 to 1/40 hp
• Voltage Rating: 115 V
• Phase: 1 phase
• Speed: 1050 rpm
• Frame Size: 42
• Enclosure Type: Open air over
• Mounting Type: Resilient base
• Amperage Rating: 2.2/1.4/1/0.7 A
• Temperature Rating: 40°C
• Insulation Class: Class B
• Shaft Size: 1/2 in diameter x 10-3/4 in length
• Rotation: CWLE
• Bearing Type: Sleeve bearing
