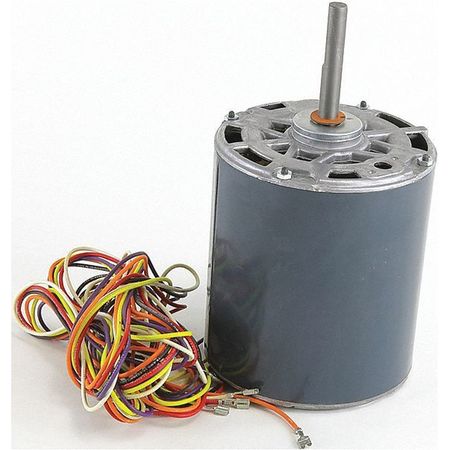

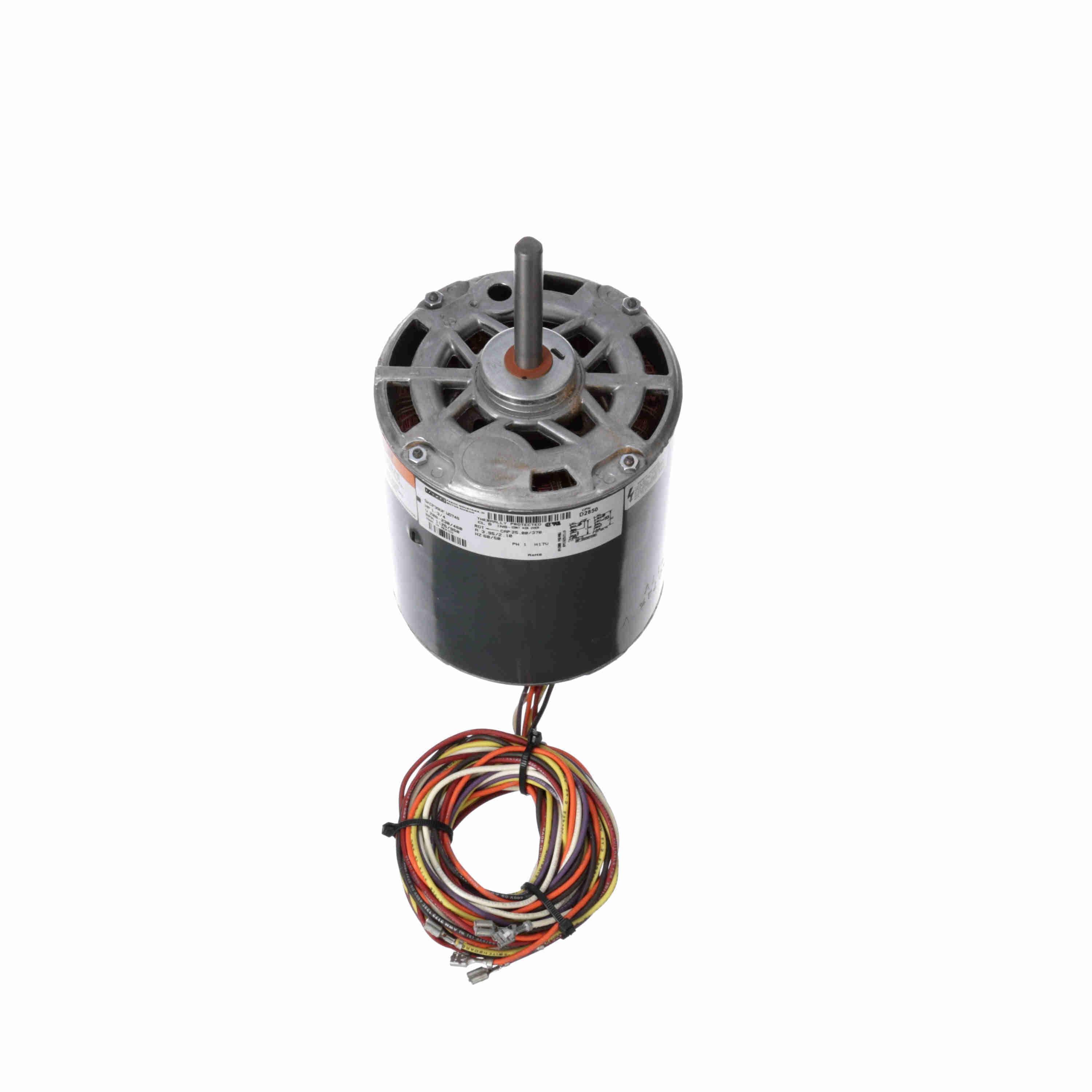

Fasco D2850 5.6 Frame Permanent Split Capacitor General Electric OEM Replacement Motor with Ball Bearing, 1-3/4 HP, 950/1125 RPM, 208-230/460V

Product Description

The Fasco D2850 is a permanent split capacitor motor designed for HVAC applications. This OEM replacement motor features a ball bearing design and operates at a horsepower rating of one and three quarters. It can function within a voltage range of two hundred eight to four hundred sixty volts and has a speed rating of nine hundred fifty to one thousand one hundred twenty-five RPM. The D2850 is thermally protected and suitable for various environments.

• OEM direct replacement motor
• Suitable for HVAC applications
• Permanent split capacitor type

Product Highlights

The D2850 motor is built for reliability and performance in HVAC systems. It is designed for open air over applications with a 48 frame size.

Product Information

Standard Information

• Brand: Fasco
• MPN: D2850

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Horsepower: 1 to 3/4 HP
• Speed: 950/1125 RPM
• Voltage Rating: 208 to 230/460 V
• Phase: Single Phase
• Amperage Rating: 3.95/2.1 A
• Frame Size: 48
• Enclosure Type: Open
• Rotation: Counterclockwise
• Shaft Diameter: 0.5 in
• Shaft Length: 2.92 in
• Insulation Class: Class B
• Temperature Rating: 65 deg C
• Weight: 24.35 lbs
