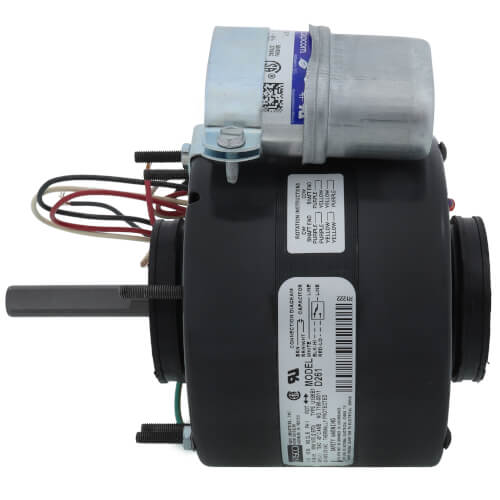

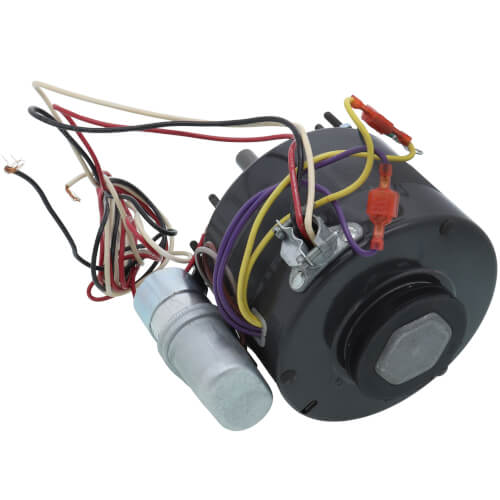

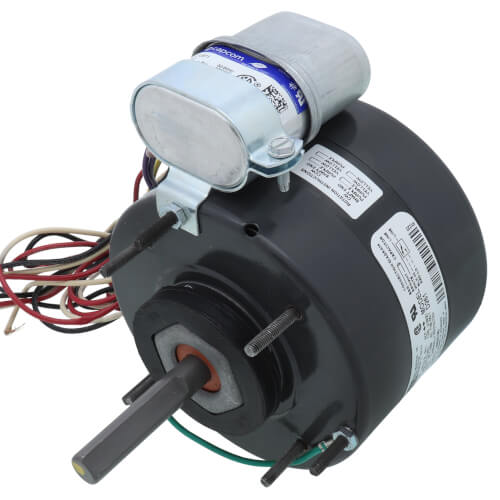

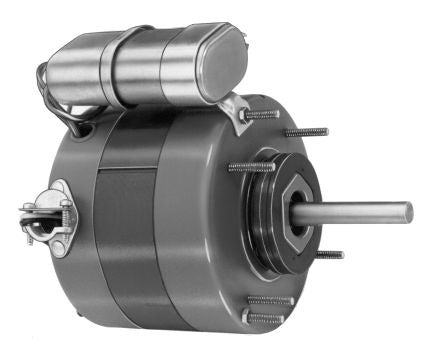

Fasco D261 Motor Unit Heater 1/8-1/5 Horsepower 1075 Revolutions per Minute 115 Volt

Product Description

The Fasco D261 is a unit heater motor with a rating of one-eighth to one-fifth horsepower. It operates at one thousand seventy-five revolutions per minute and requires one hundred fifteen volts. The motor features a permanent split capacitor design.

• Power: 1/8 - 1/5 HP
• Speed: 1075 RPM
• Voltage: 115V

Product Highlights

This motor is suitable for applications requiring a reliable and efficient unit heater. Its reversible rotation allows for versatility in installation. It features sleeve bearings and an open air over enclosure for improved cooling during operation.

Product Information

Standard Information

• Brand: Fasco
• Product Type: Unit Heater Motor

Technical Specifications

• Horsepower: 1/8-1/5 HP
• Speed: 1075 RPM
• Voltage: 115V
• Electrical Type: Permanent Split Capacitor
• Rotation: Reversible
• Bearing Type: Sleeve
• Enclosure: Open Air Over
• Amperage: 2.3/1.1 AMP
• Phase: 1
• Number of Poles: 6
• Overload Protection: Automatic
• Frame Type: 42
• Frequency: 60 HZ
• Duty: Continuous
• Shaft Type: Flat
• Mounting: Extended Studs
• Diameter: 5 inches
• Shipping Weight: 9 lbs
