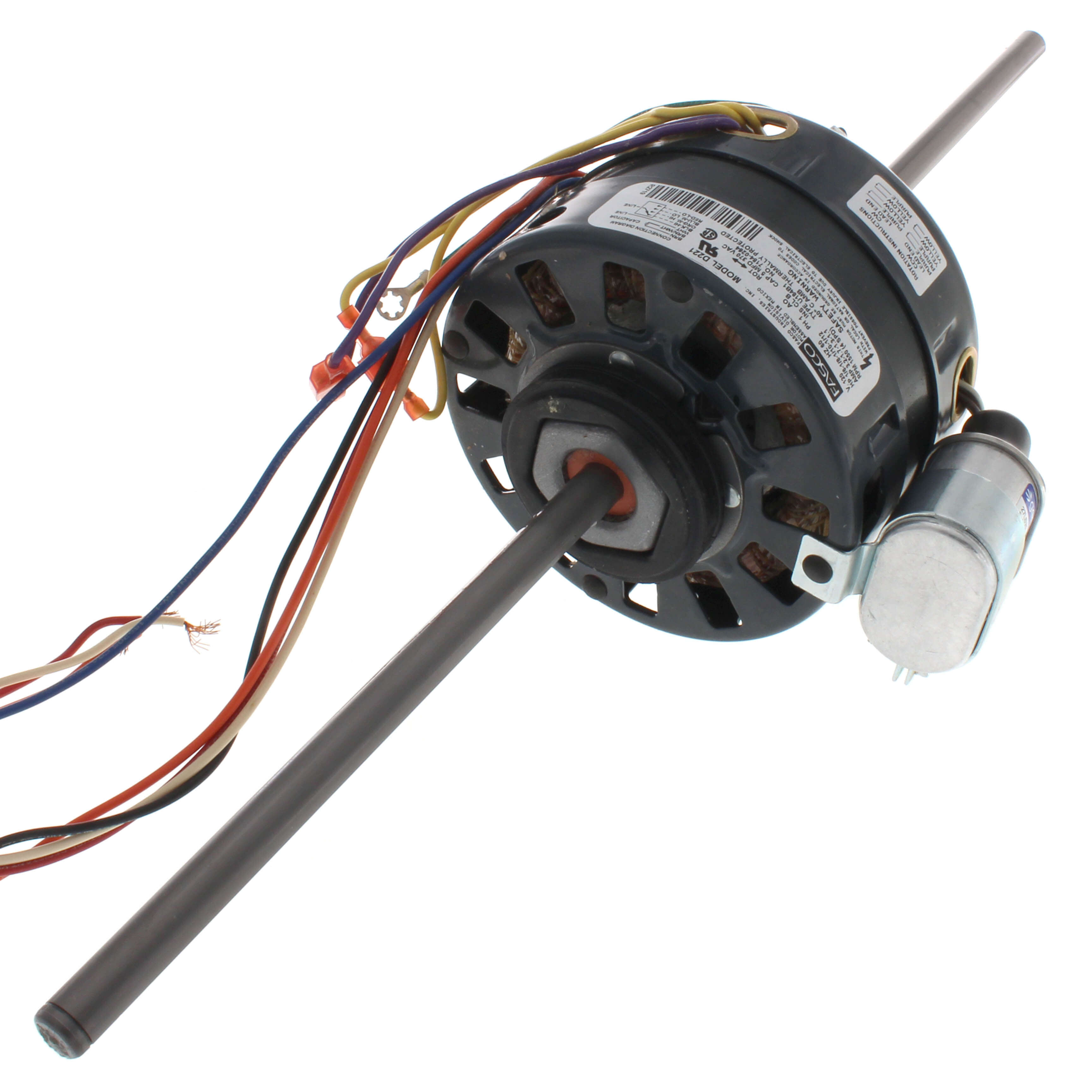

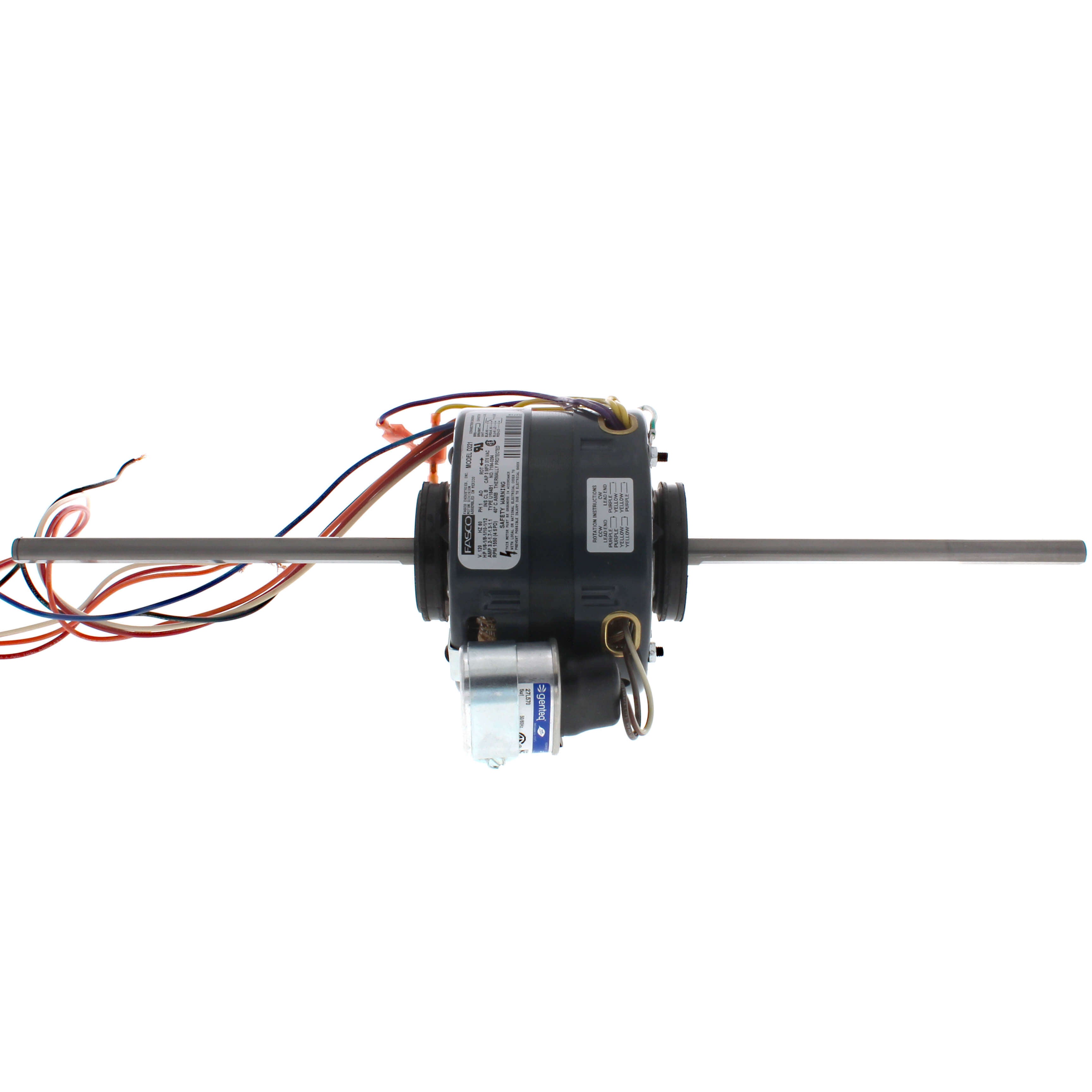

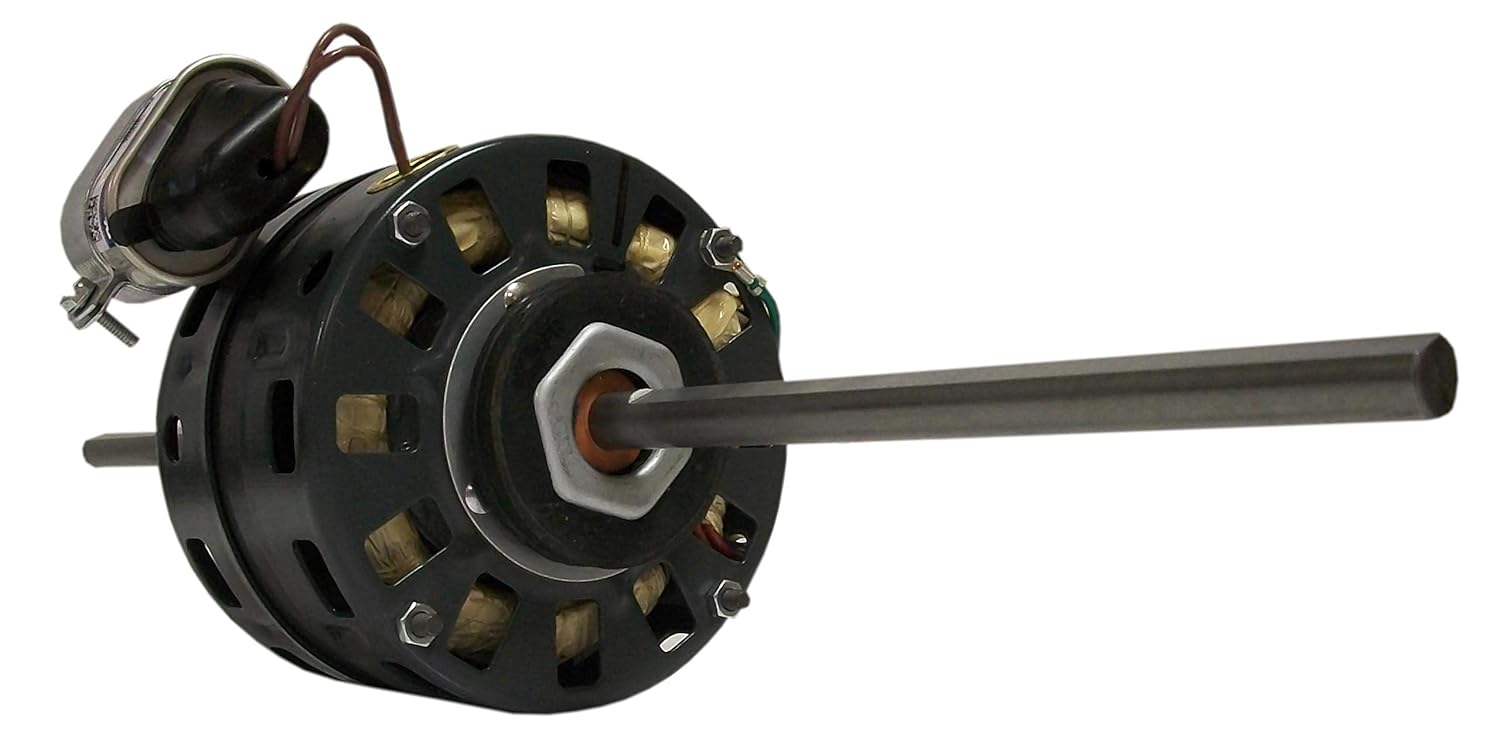

Fasco D221 Fan Coil Motor, 1/6, 1/10, 1/15, 1/17 HP, PSC, 1050 RPM, 115V

Product Description

The Fasco D221 Fan Coil Motor is designed to power air conditioning and heating units efficiently. This model operates at one-sixth to one-seventeenth horsepower and can handle a speed of one thousand fifty RPM. It functions with a permanent split capacitor and is rated for one hundred fifteen volts.

• Multi-speed operation with a range of horsepower options.
• Thermally protected for safety and reliability.
• Open air over design suited for various environments.

Product Highlights

Ideal for HVAC applications, the Fasco D221 motor is perfect for fan coil installations, ensuring effective air circulation and temperature control.

Product Information

Standard Information

• Manufacturer: Fasco
• MPN: D221

Technical Specifications

• Power Ratings: 1/6, 1/10, 1/15, 1/17 HP
• Voltage: 115 Volts
• Speed: 1050 RPM
• Type: Permanent Split Capacitor (PSC)
• Weight: 8.8 Pounds
• Phase: Single Phase
• Insulation Class: Class B
• Ambient Temperature: 40°C
• Overall Dimensions: 27 x 7 x 7 inches
• Mounting Type: Resilient Rings
• Bearing Type: Sleeve
