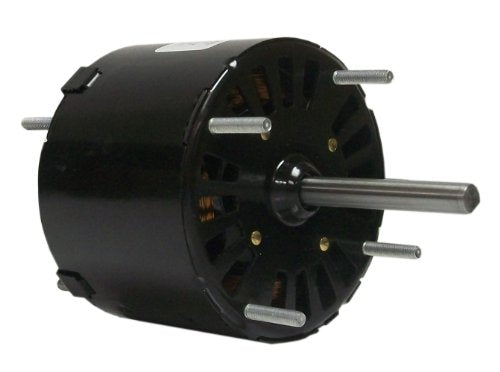

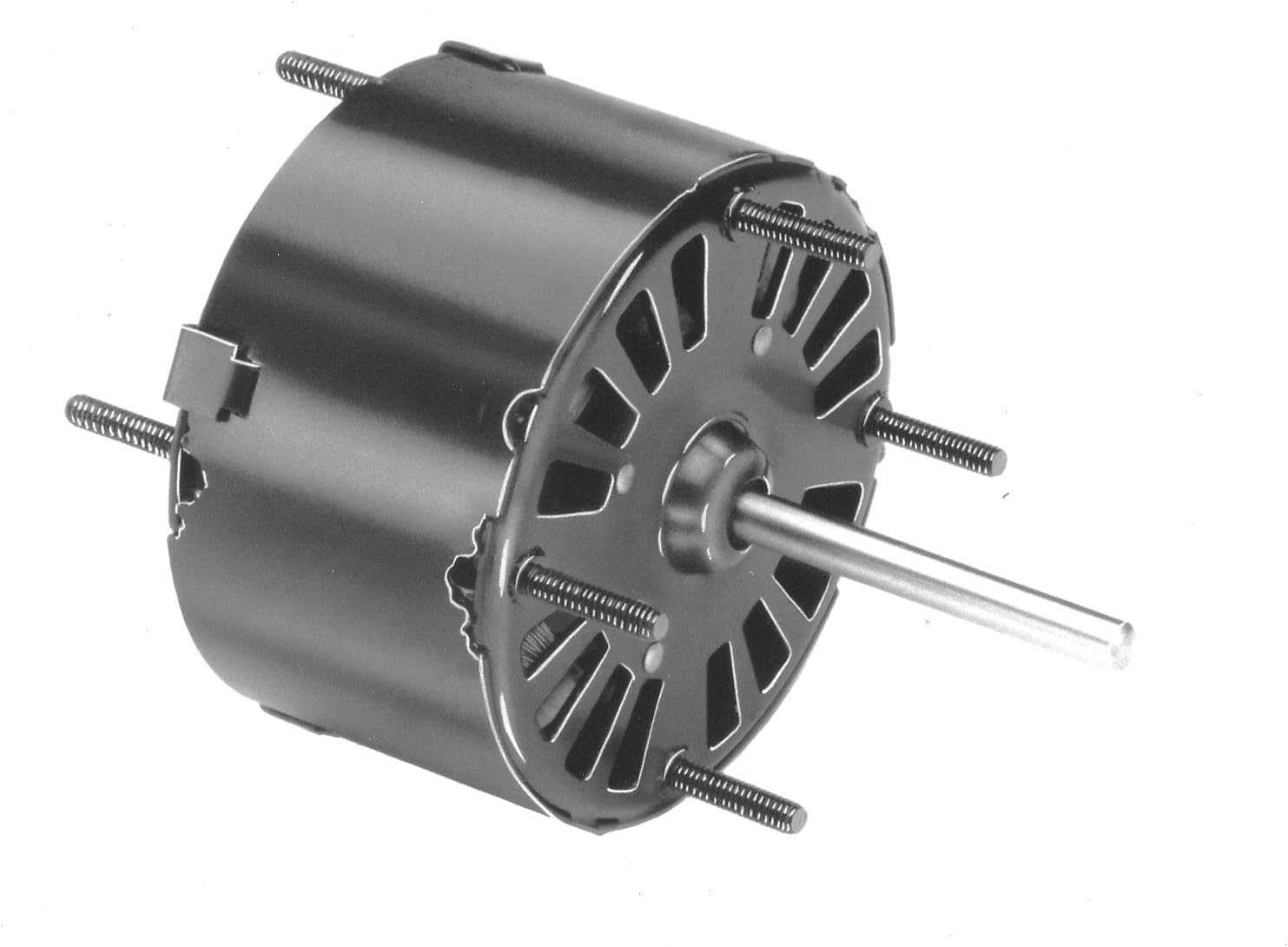

Fasco D181 HVAC Motor, 1/30 HP, 1500 RPM, 115V

Product Description

The Fasco HVAC Motor D181 is a reliable motor designed for air handling applications. It operates at one-thirtieth horsepower with a speed of fifteen hundred revolutions per minute and runs on one hundred fifteen volts of power. This motor is built with a shaded pole design and is perfect for use in ventilation, heating, and cooling systems.

• Horsepower: 1/30 HP
• Speed: 1500 RPM
• Voltage: 115V

Product Highlights

This motor features thermally protected operation, an open air-over enclosure, and extended stud mounting for versatile installation. The flat shaft design allows for easy integration into various HVAC systems.

Product Information

Standard Information

• Manufacturer: Fasco
• Model Number: D181

Technical Specifications

• Speed: 1500 RPM
• Voltage: 115 Volts
• Horsepower: 0.13 HP
• Amperage: 1.30/1.00 A
• Frame Size: 3.3 inches
• Weight: 7.5 pounds
• Dimensions: 7.25 x 2.75 x 2.75 inches
• Enclosure Type: Open Air Over
• Mounting Type: Extended Studs
• Ambient Temperature Max: 40 degrees C
• Insulation Class: B
• Number of Speeds: 2
