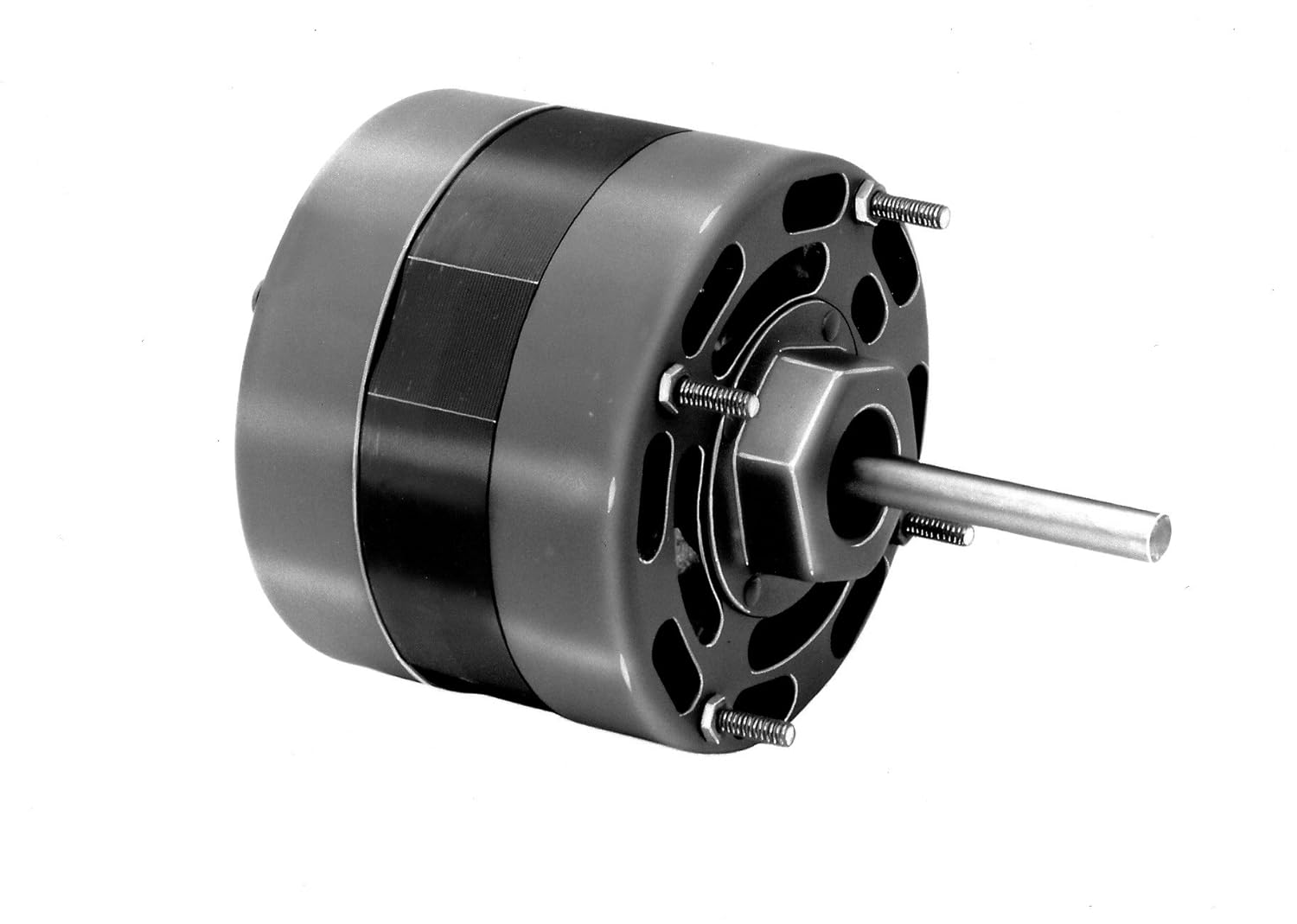

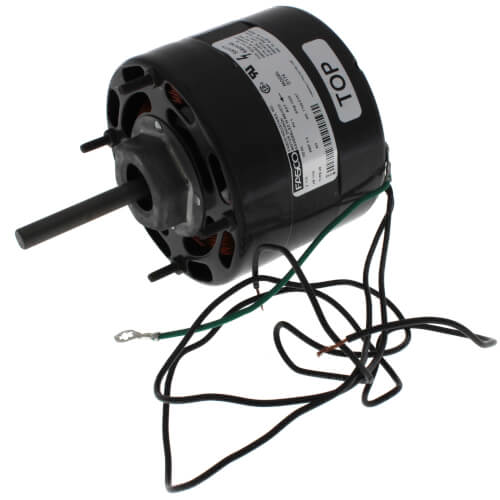

Fasco D174 4.4 Frame Ventilated Shaded Pole Motor 1/10HP 1500rpm 115V

Product Description

The Fasco D174 4.4 Frame Ventilated Shaded Pole Motor is built for diverse applications. It features a sleeve bearing and operates at 1500 rpm with 1/10HP. It runs on 115 volts and has a thermal protection system.

• Thermally protected for safety
• Sleeve bearing for smooth operation
• Clockwise shaft end rotation

Product Highlights

This motor is suitable for general purposes, including fan and blower applications. It is UL recognized and CSA certified, ensuring reliable performance.

Product Information

Standard Information

• Brand: Fasco
• Model: D174
• Part Number: D174

Technical Specifications

• Voltage: 115V
• Current: 3.5 A
• Horse Power: 1/10 HP
• Speed: 1500 rpm
• Frame Size: 4.4
• Shaft Diameter: 0.375 inches
• Shaft Length: 2.9 inches
• Rotation: Clockwise Shaft End
• Bearings: Sleeve
• Insulation Class: A
• Enclosure Type: Open Air Over
• Mounting Type: Extended Studs
• Frequency: 60 Hz
• Thermal Protection: Included
• Ambient Temperature: 40°C
