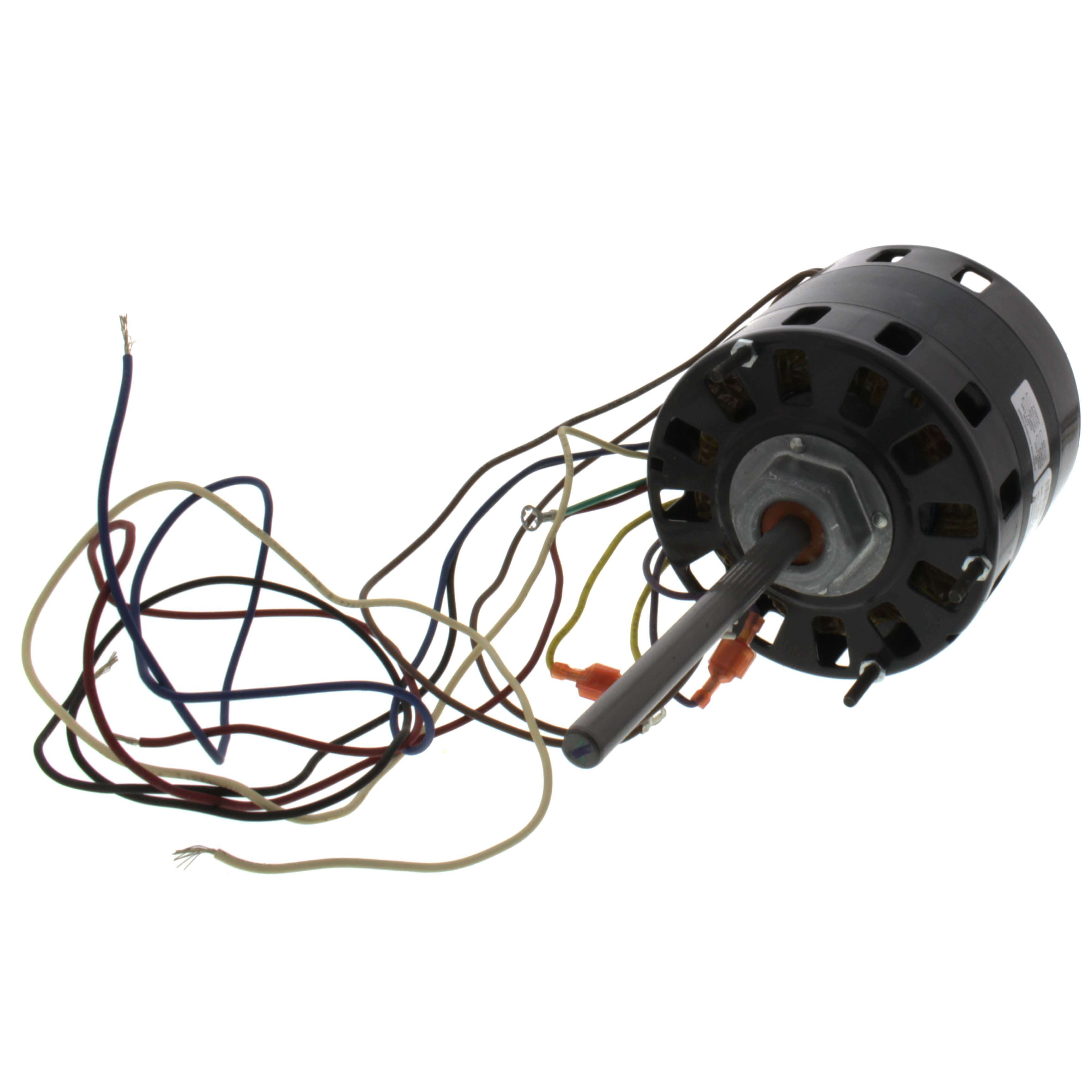

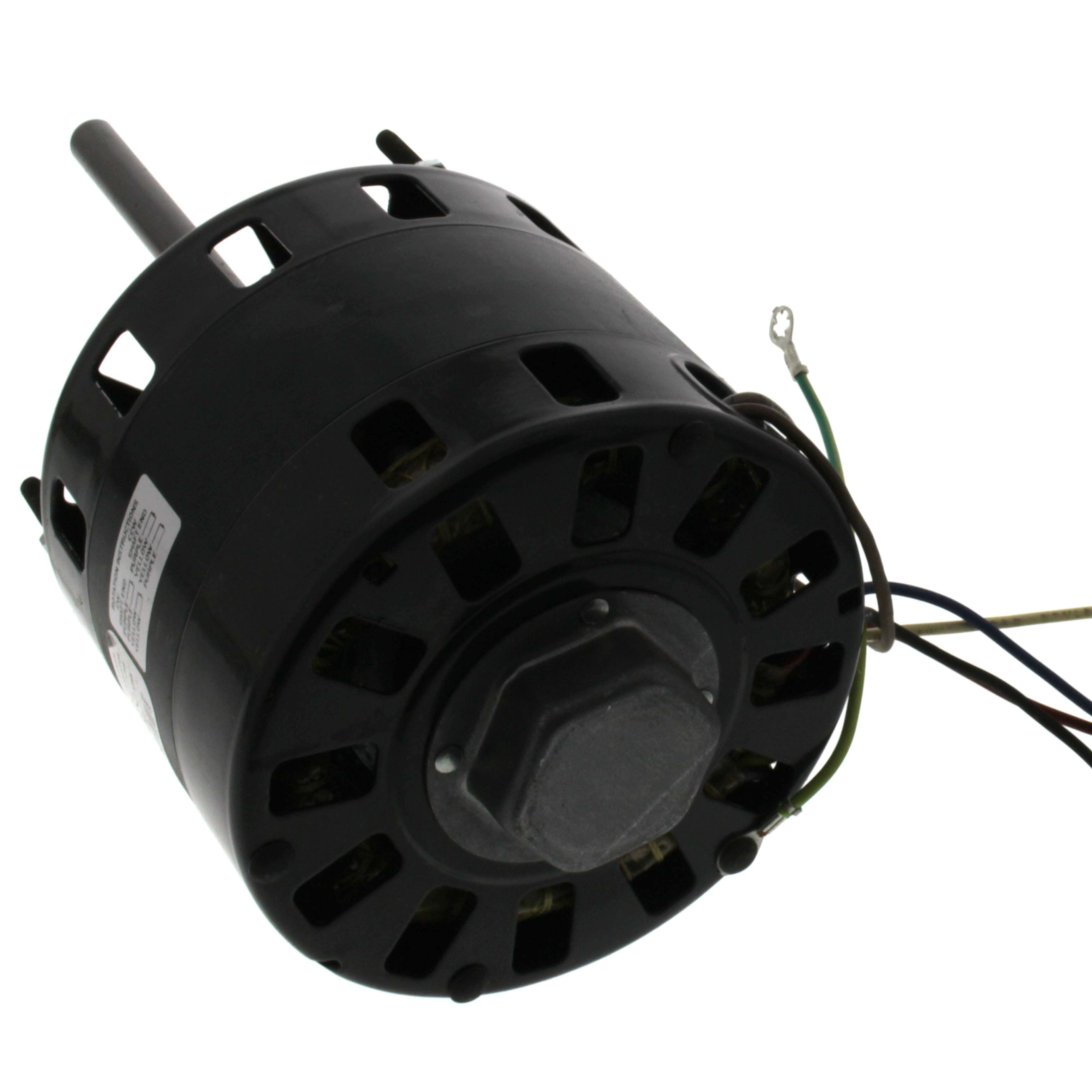

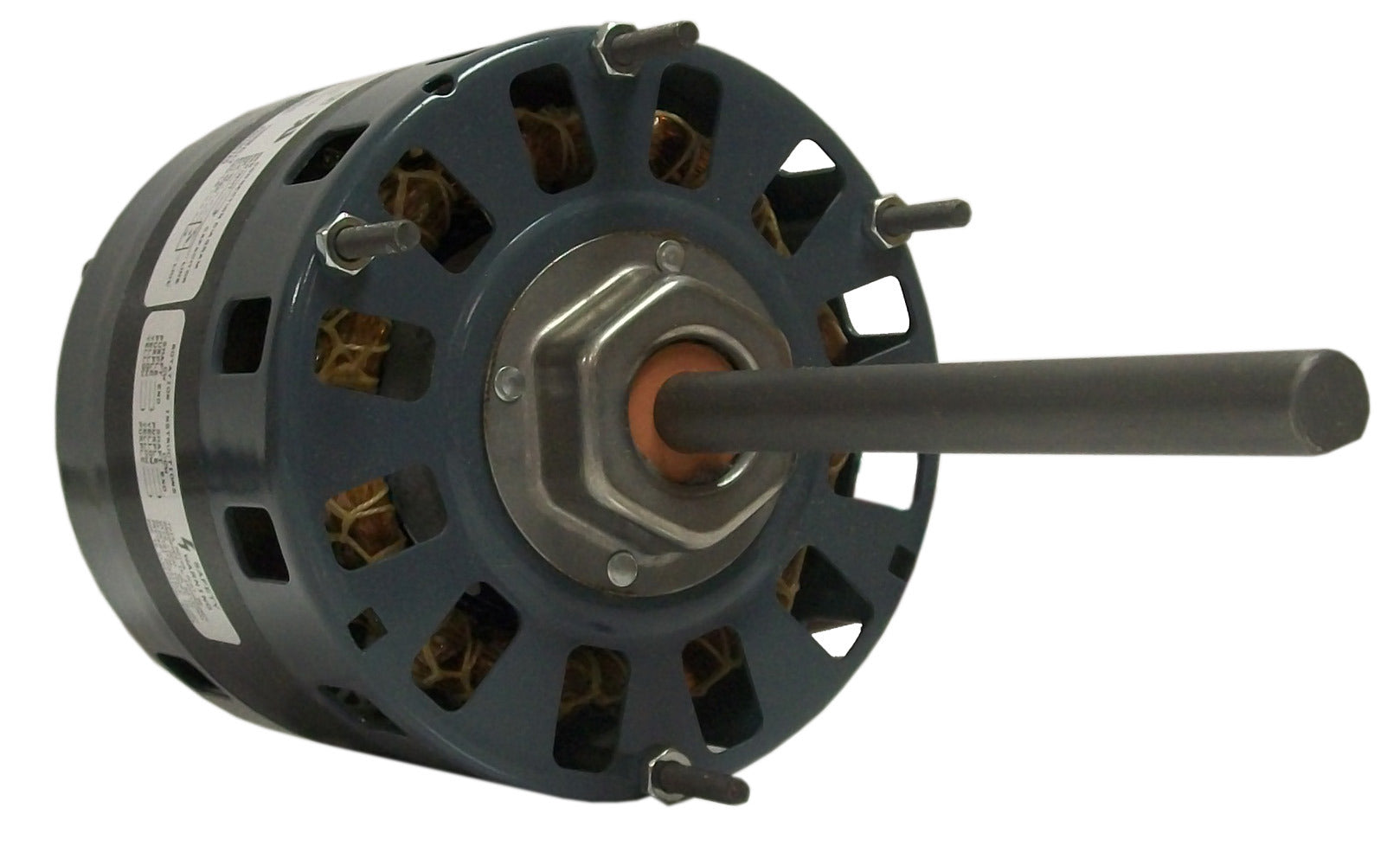

Fasco D150 Motor Fan/Blower 1/4-1/5-1/6 Horsepower 1050 Revolutions per Minute 115 Volt 5 Inch Permanent Split Capacitor

Product Description

The Fasco D150 is a motor fan and blower designed for various HVAC applications. This motor operates at a horsepower rating of 1/4-1/5-1/6, with a speed of 1050 revolutions per minute. It runs on 115 volts and features a permanent split capacitor for efficient performance.

• Horsepower: 1/4-1/5-1/6
• Speed: 1050 RPM
• Electrical Type: Permanent Split Capacitor

Product Highlights

The Fasco D150 motor features a reversible rotation and comes equipped with automatic overload protection. It is suitable for continuous duty and is thermally protected for safety and durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D150

Technical Specifications

• Duty: Continuous
• Voltage: 115V
• Speed: 1050 RPM
• Amperage: 4.1/3.2/2.5 AMP
• Phase: 1
• Number of Poles: 6
• Number of Speeds: 3
• Frame Type: 42
• Insulation Class: B
• Frequency: 60 HZ
• Shaft Type: Flat
• Mounting: Extended Studs
• Diameter: 5 IN
• Shipping Weight: 12.000 LBS
