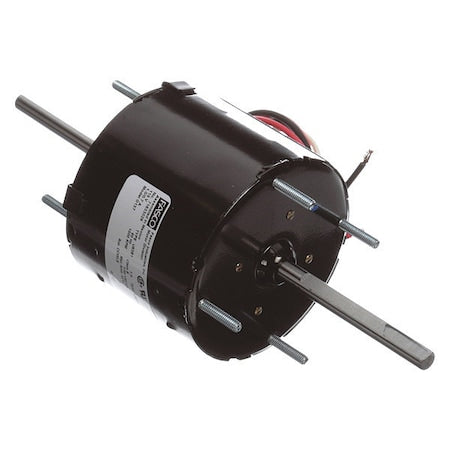

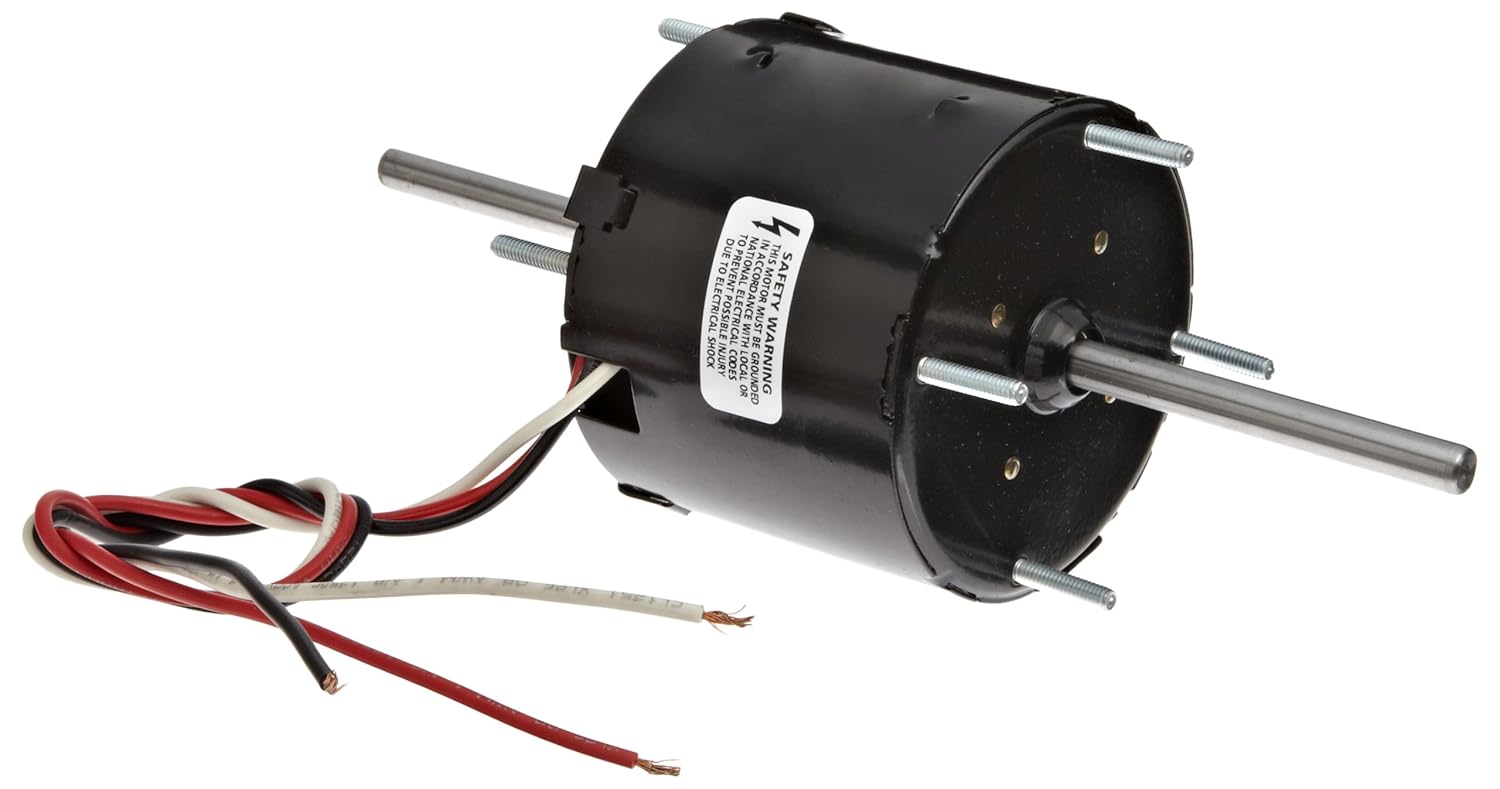

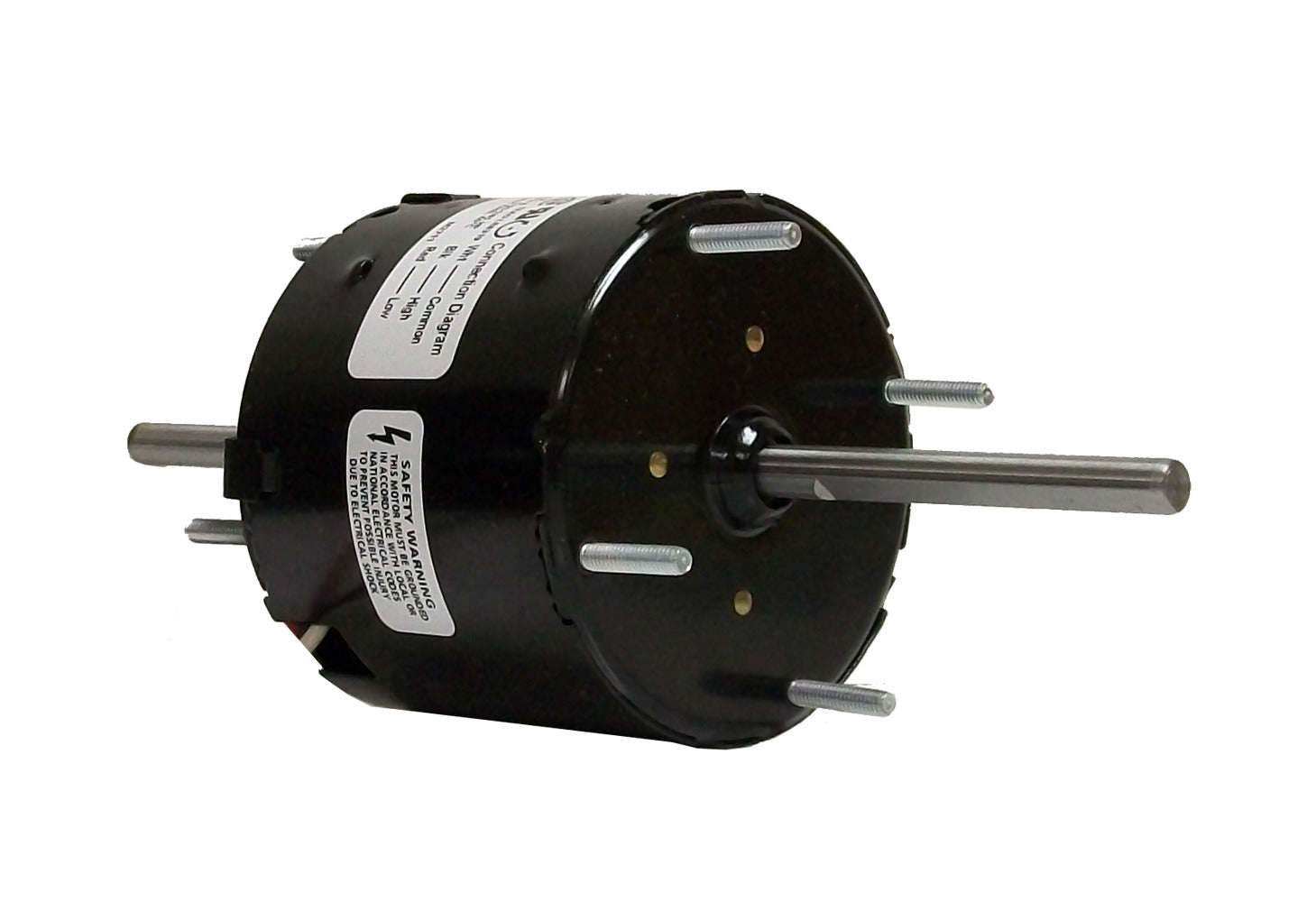

Fasco D137 3.3 Frame Motor 1/30-1/65HP 1500rpm 115V

Product Description

The Fasco D137 is a 3.3 frame, totally enclosed shaded pole general purpose motor with sleeve bearing. This motor operates at 1/30-1/65 horsepower, 1500 RPM, 115 volts, and 60 hertz. It draws 1.00 to 0.70 amps and features double shaft end rotation.

• Totally enclosed shaded pole motor
• Double shaft end rotation
• Thermally protected

Product Highlights

This Fasco motor is suitable for various HVAC and refrigeration applications. The double-shaft design allows for versatile mounting options, and the thermal protection ensures safe operation. It is UL recognized and CSA certified, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Fasco
• MPN: D137

Technical Specifications

• Horsepower: 1/30-1/65
• Speed: 1500 RPM
• Voltage: 115V
• Amperage: 1.00/0.70
• Frequency: 60 Hz
• Frame Size: 3.3 inches
• Rotation: Clockwise Shaft End
• Bearings: Sleeve
• Enclosure Type: Totally Enclosed Air Over
• Mounting Type: Extended Studs
• Insulation Class: B
• Thermal Protection: Automatic
• Material: Steel
• Ambient Temperature: 40°C
• Shaft Extension: 2.375 inches
• Shaft Diameter: 0.313 inches
• Dimensions: 8 x 5.88 x 5 inches
• Weight: 3.6 lbs
