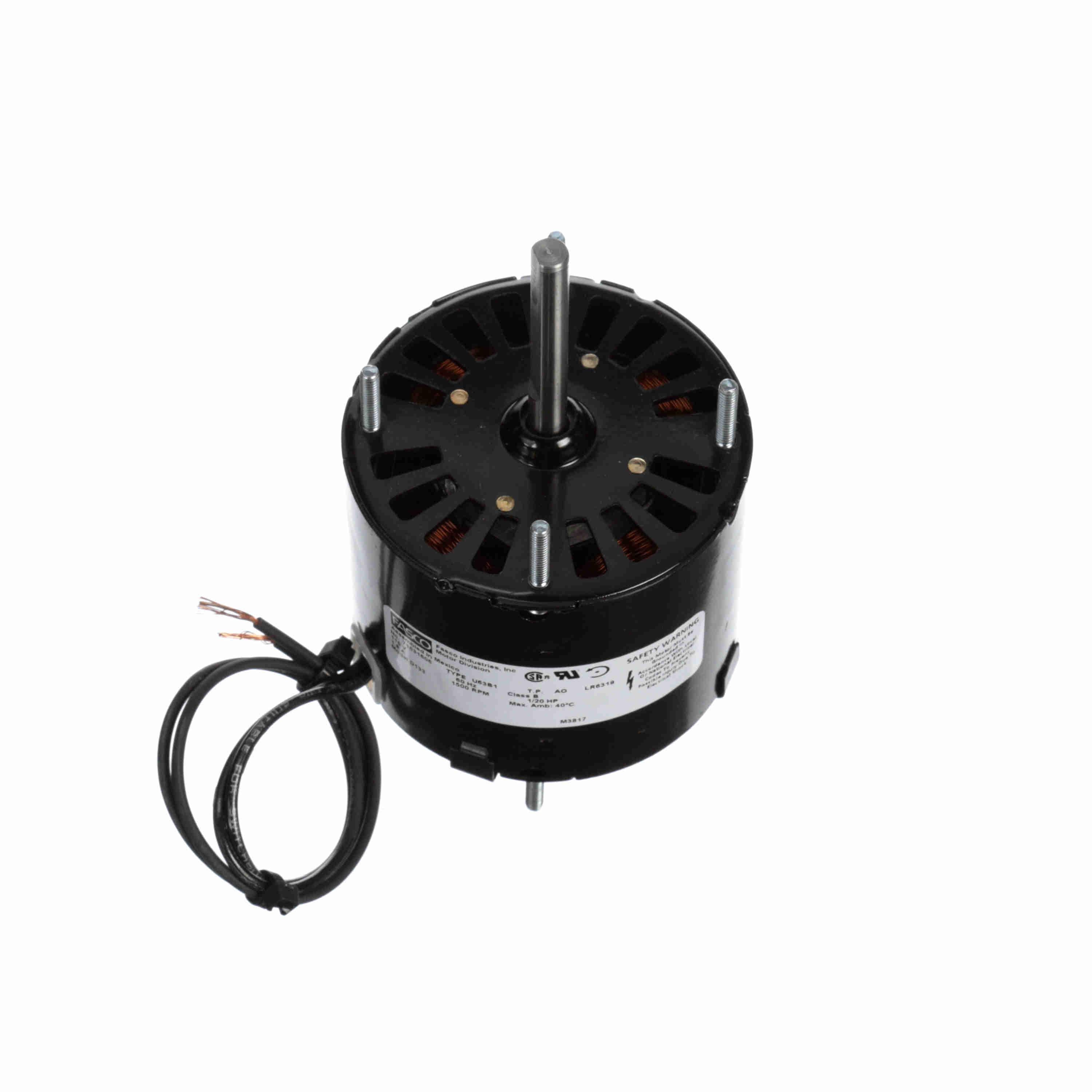

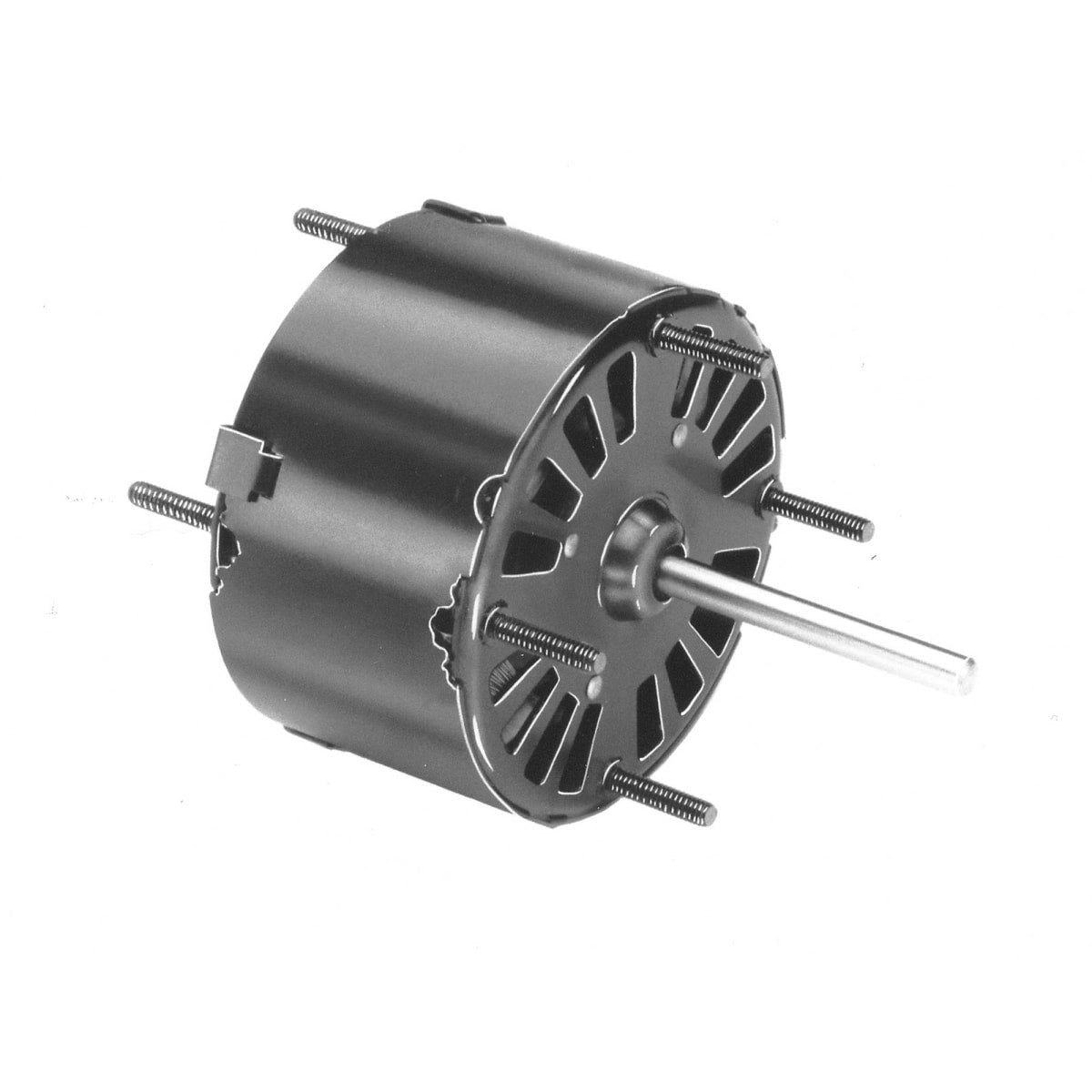

Fasco D133 3.3 Dia General Purpose Motor 1/20 HP 1500 rpm

Product Description

The Fasco D133 is a 3.3-inch diameter general purpose motor designed for HVAC applications. This motor has a power rating of 1/20 horsepower and operates at a speed of 1500 revolutions per minute. It features an open ventilated enclosure and counter-clockwise rotation, making it ideal for various air moving applications including furnace fans, air handlers, and blowers.

• Voltage: 115V
• Amperage: 1.8A
• Speed: 1500 RPM

Product Highlights

The D133 motor is thermally protected and has a shaded pole design. It is suitable for environments with a maximum ambient temperature of 40 degrees Celsius and features a sleeve bearing for durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D133

Technical Specifications

• Type: Shaded Pole
• Frame Size: 3.3
• HP Rating: 0.05 HP
• Dimensions: 5.41 inches long
• Shaft Diameter: 0.3125 inches
• Shaft Length: 2.25 inches
• Speed Rating: 1500 RPM
• Enclosure Type: Open Air Over
• Full Load Amperage: 1.8 A
