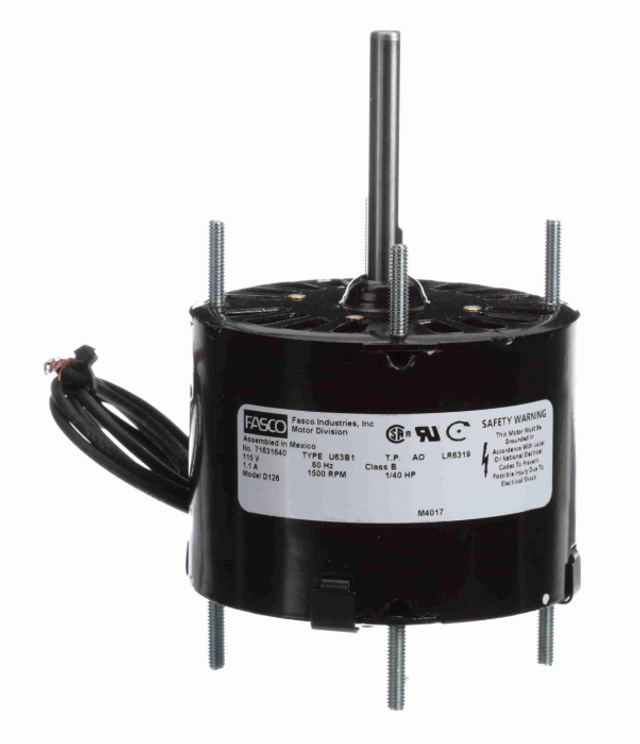

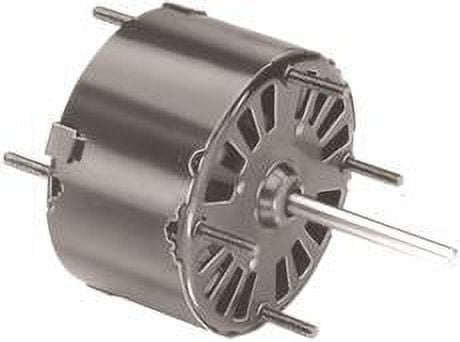

Genteq Motors D126 Motor Shaded Pole 1/40 Horsepower 115 Volt Clockwise 1500 Revolution per Minute 60 Hertz

Product Description

The GENTEQ MOTORS D126 is a motor shaded pole operating at 1/40 horsepower, 115 volts, with a clockwise rotation at 1500 revolutions per minute and 60 hertz. This general purpose motor features thermal protection and an open air over enclosure. It is designed with a 5/16" diameter shaft with flat and 12" leads.

• Thermally Protected
• Open Shaft End and Lead End, Enclosed Shell, Air Over
• 5/16" Diameter Shaft with Flat

Product Highlights

This motor is suitable for use in bath exhaust fans, kitchen range hood exhaust fans, humidifiers and dehumidifiers.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D126
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/40
• Voltage: 115 V
• Rotation: Clockwise Shaft End
• Speed: 1500 rpm
• Frequency: 60 Hz
• Brand: GENTEQ MOTORS
• Phase: 1
• Output HP: 1/40 Hp
• Output KW: 0.02 kW
• Service Factor: 1
• Frame: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 1.10 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 5.08 in
• Frame Length: 2.24 in
• Shaft Diameter: 0.313 in
• Shaft Extension: 2.30 in
• Packaged Length: 8.00 IN
• Packaged Width: 3.38 IN
• Packaged Height: 3.38 IN
• Amps: 1.1 Amps
