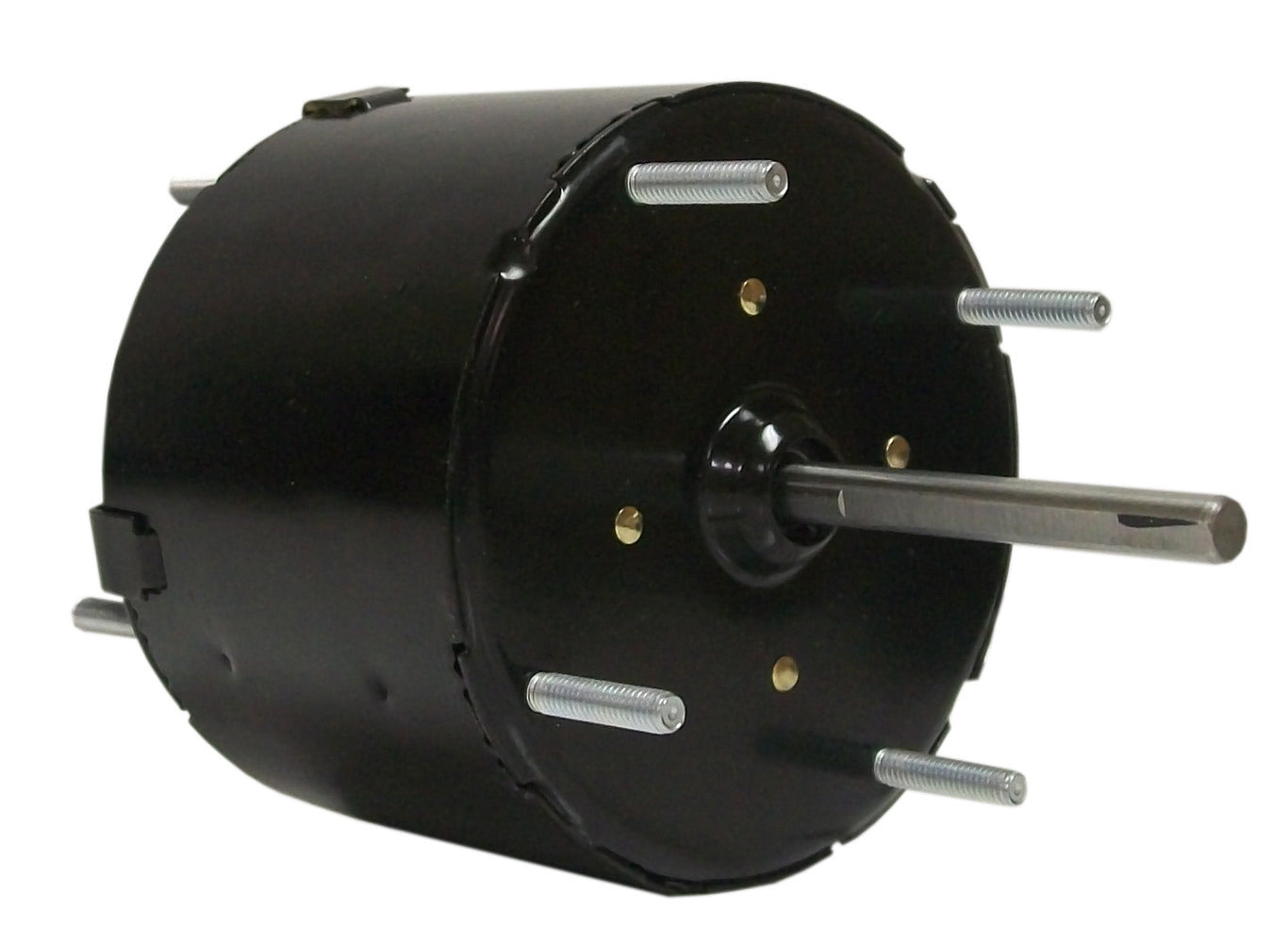

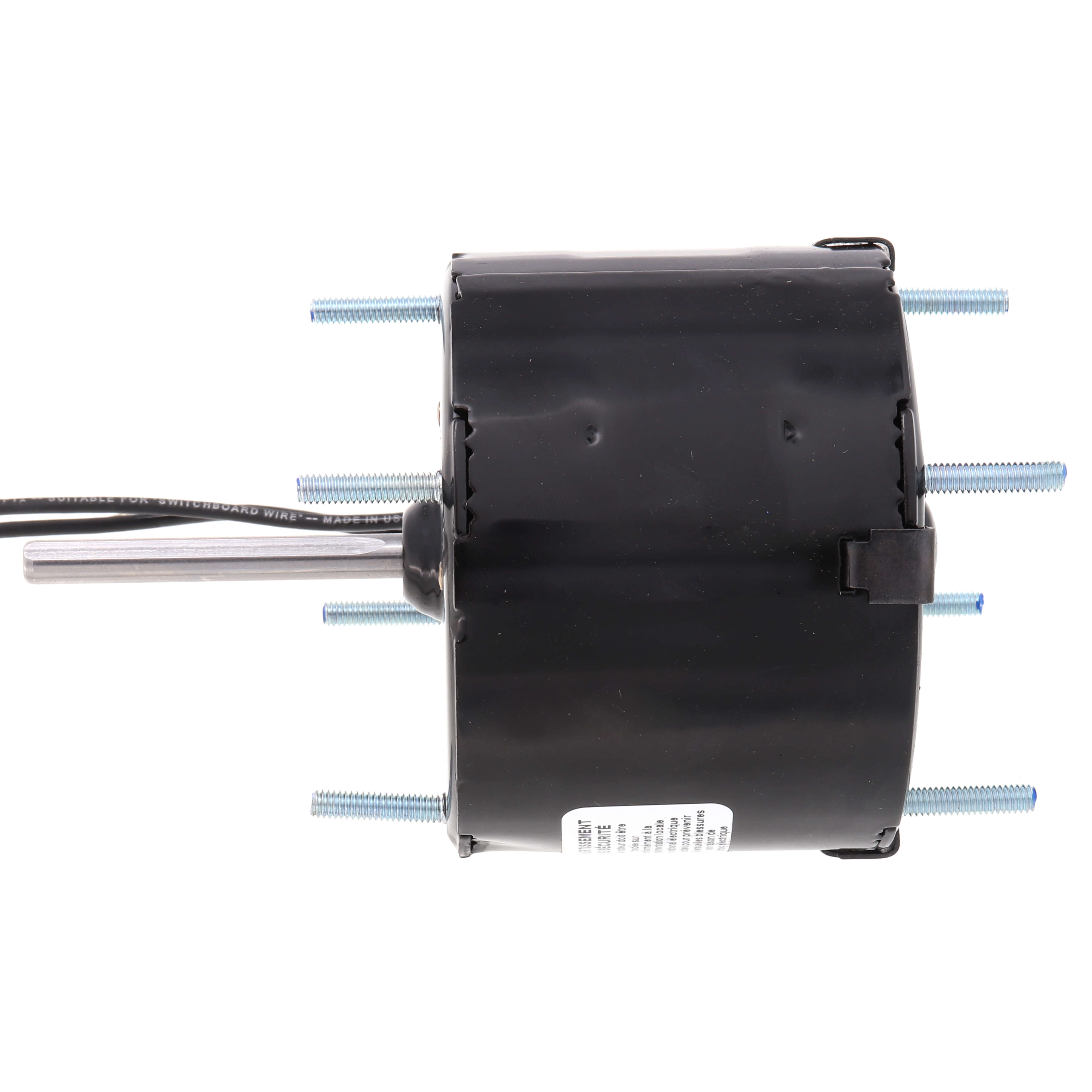

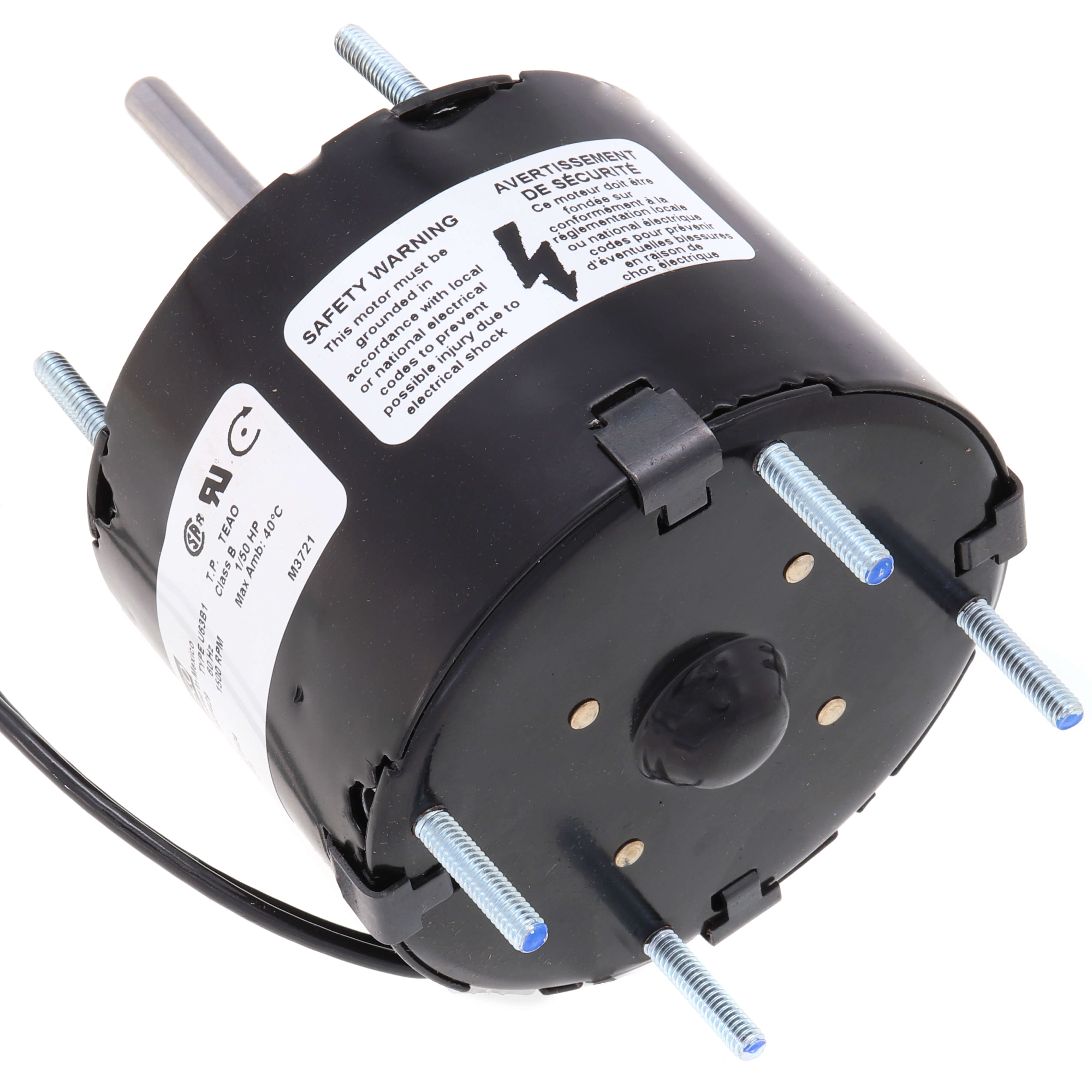

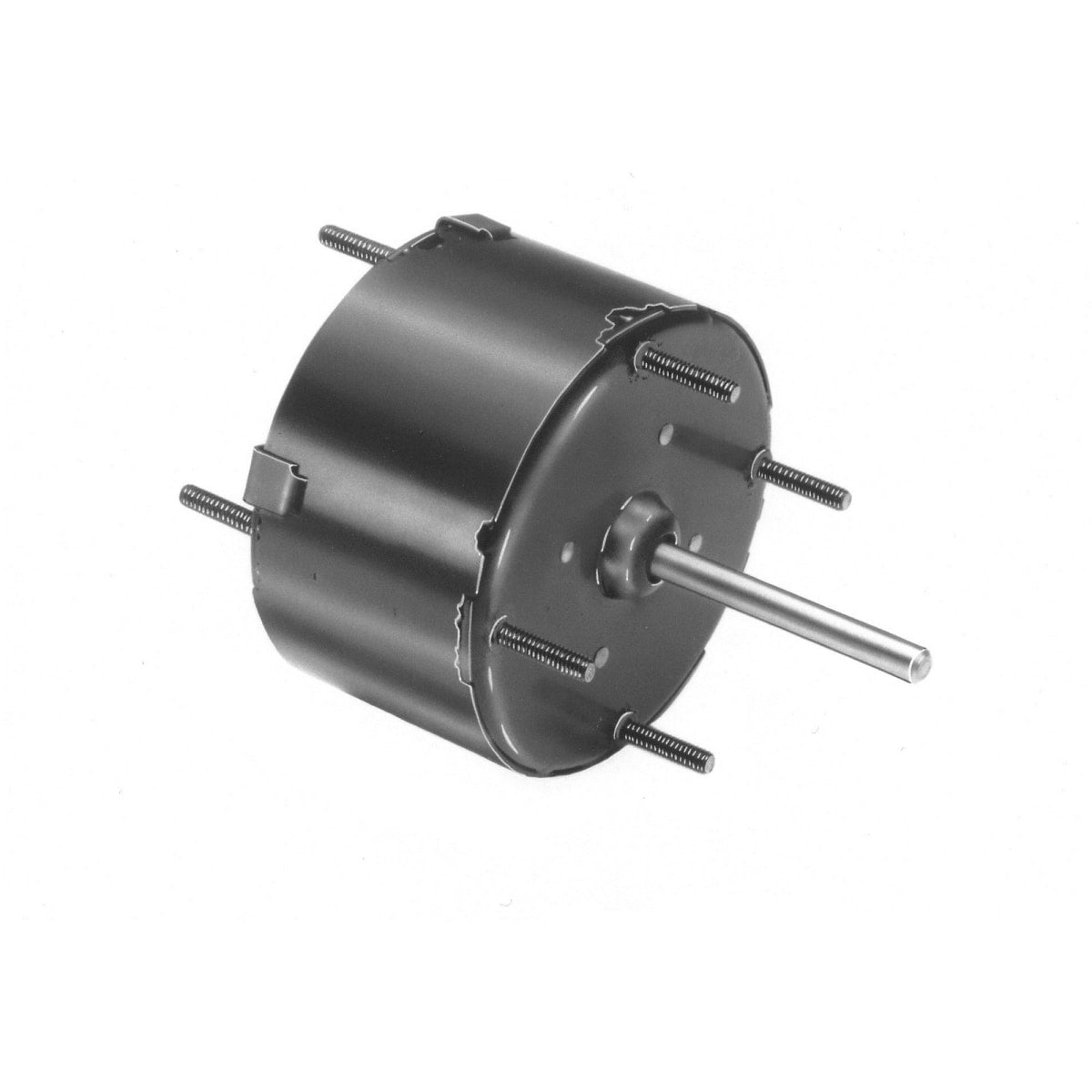

Fasco D124 HVAC Motor 1/50 HP 1500 RPM 115V 3.3

Product Description

The Fasco D124 HVAC Motor provides 1/50 HP power at 1500 RPM with 115V. It features a 3.3-inch diameter, making it ideal for various HVAC applications.

• Totally enclosed shaded pole design
• Thermally protected
• Clockwise shaft end rotation

Product Highlights

Designed for versatile installations, this motor has a shaded pole, 1/50 horsepower, and runs at 1500 RPM. It is thermally protected and features a totally enclosed air-over design for improved durability.

Product Information

Standard Information

• Brand: Fasco
• Item Number: D124
• Voltage: 115V

Technical Specifications

• Horsepower: 1/50 HP
• Speed: 1500 RPM
• Frame Size: 3.3 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Amperage: 0.8 amps
• Rotation: Clockwise Shaft End
• Bearing Type: Sleeve
• Mounting Type: Extended Studs
• Motor Length: 2.24 inches
• Shaft Diameter: 0.25 inches
• Shaft Extension: 2.3 inches
• Insulation Class: B
• Frequency: 60 Hz
• Protection: Thermally Protected
• Maximum Ambient Temperature: 104°F
• Certifications: UL Recognized, CSA Certified
