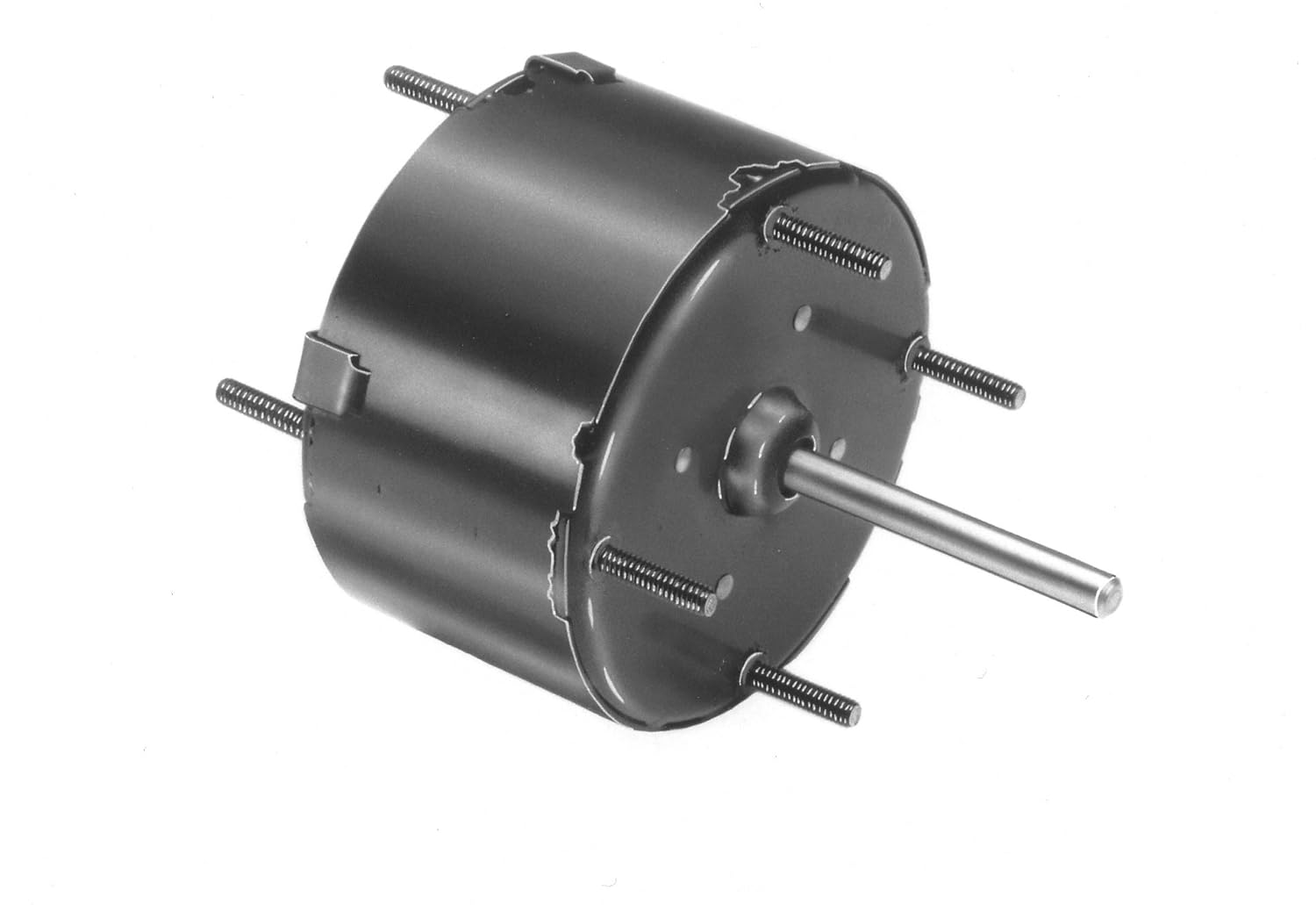

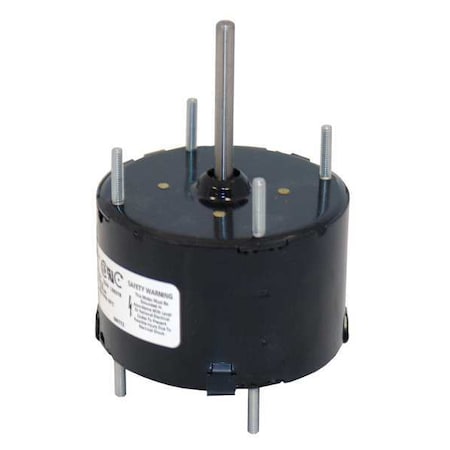

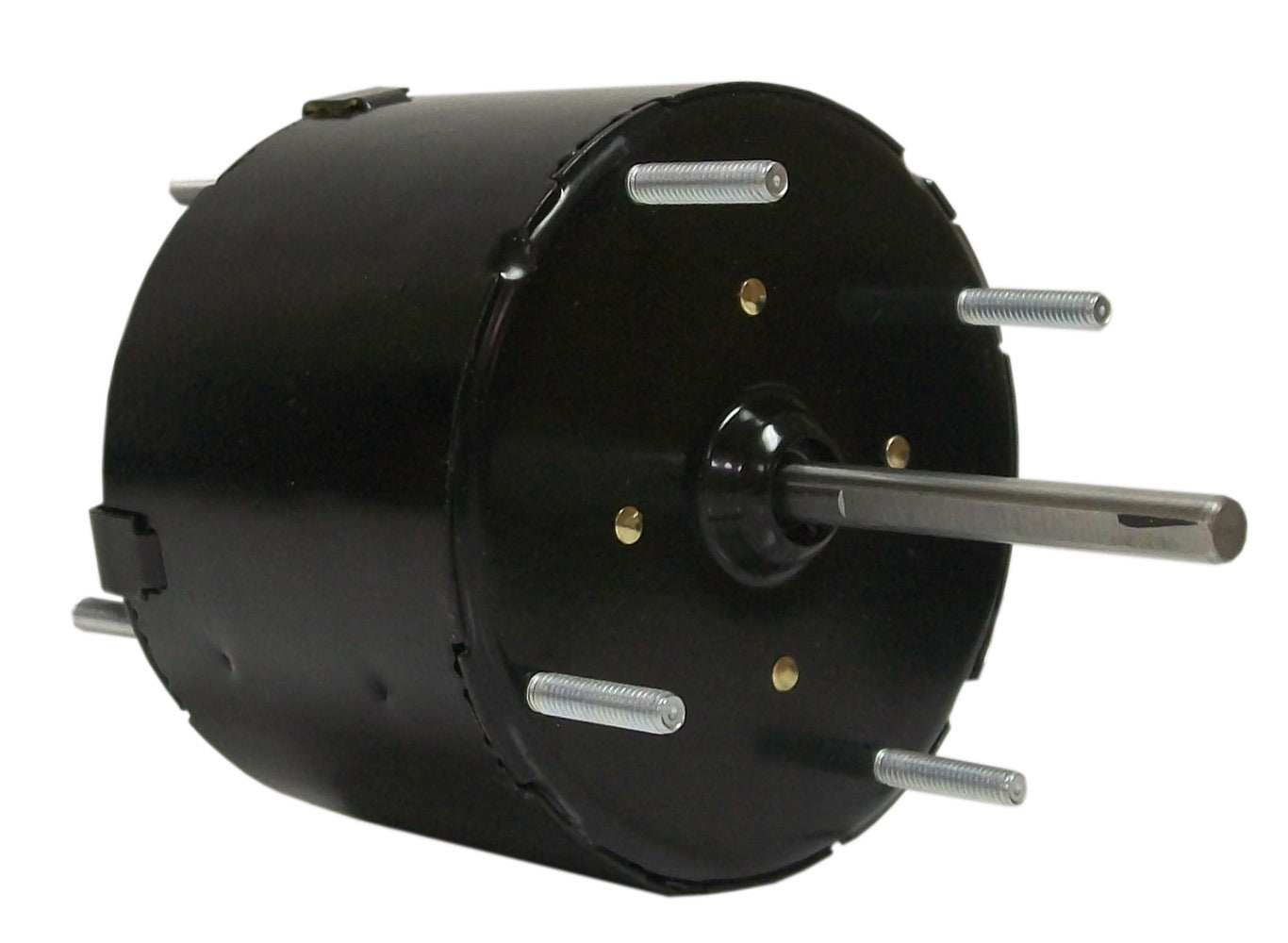

Fasco D122 Fan Motor 1/80HP 115V 1500 RPM Totally Enclosed

Product Description

The Fasco D122 Fan and Blower Motor is a reliable solution for your HVAC applications. This totally enclosed shaded pole motor is built with a sleeve bearing and is designed for general-purpose use.

• 1/80 horsepower motor
• Operates at 1500 RPM
• 115 volts, 60 Hz

Product Highlights

This motor has a thermally protected design, ensuring safety and durability. It rotates clockwise at the shaft end and features a totally enclosed air-over enclosure.

Product Information

Standard Information

• Manufacturer: Fasco
• Brand: Fasco
• Model: D122
• Motor Type: Fan and Blower Motor

Technical Specifications

• Horsepower: 1/80 HP
• Rotation: Clockwise Shaft End
• Speed: 1500 RPM
• Voltage: 115V
• Current: 0.6 amps
• Electrical Type: Shaded Pole
• Shaft Diameter: 0.25 inches
• Shaft Length: 2.25 inches
• Bearing Type: Sleeve
• Frame Size: 3.3 inches
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Ambient Temperature: 40 degrees C
• Mounting: Extended Studs
• Weight: 2.29 lb
