Product Description

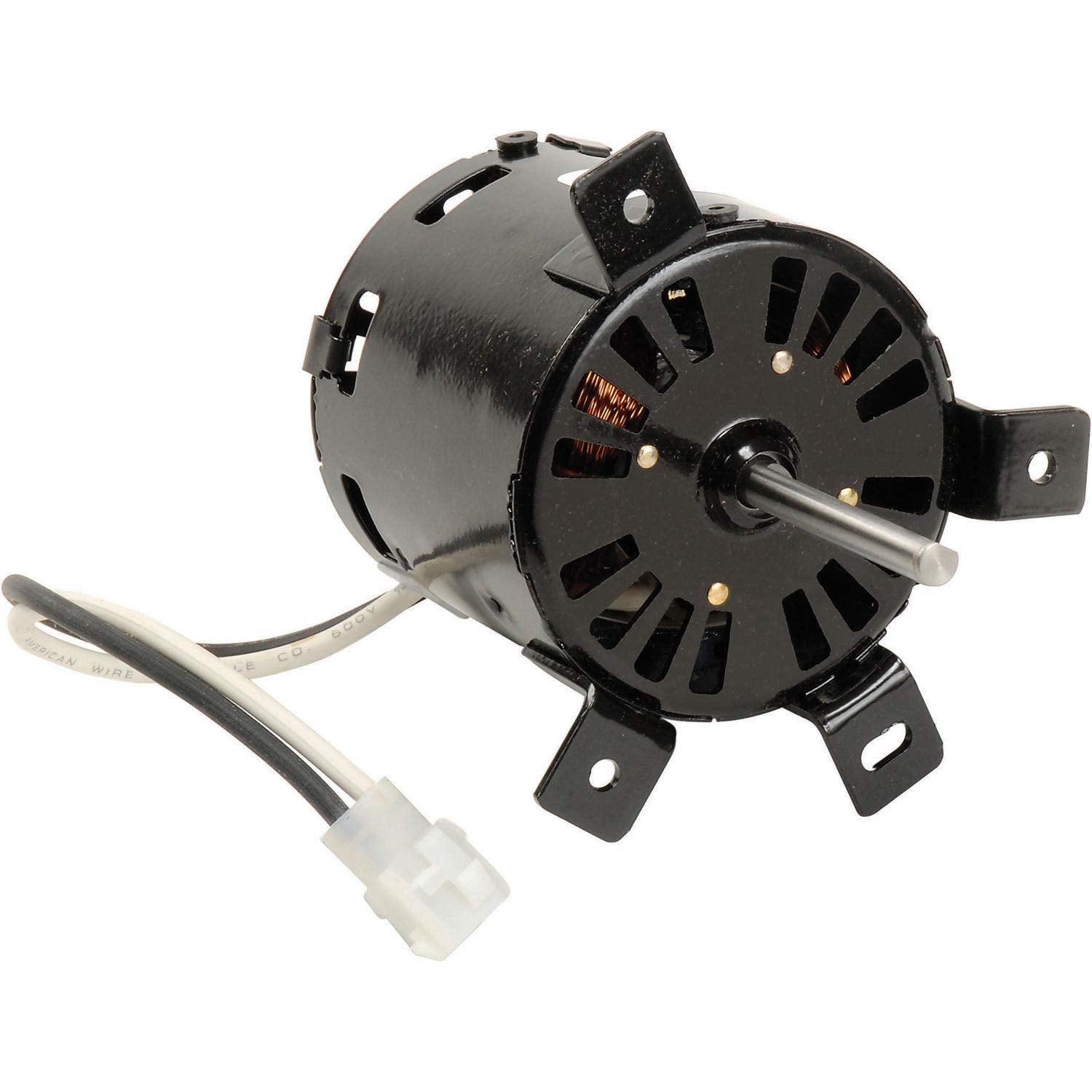

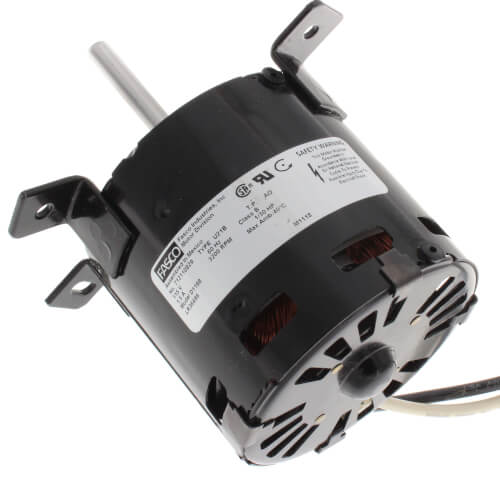

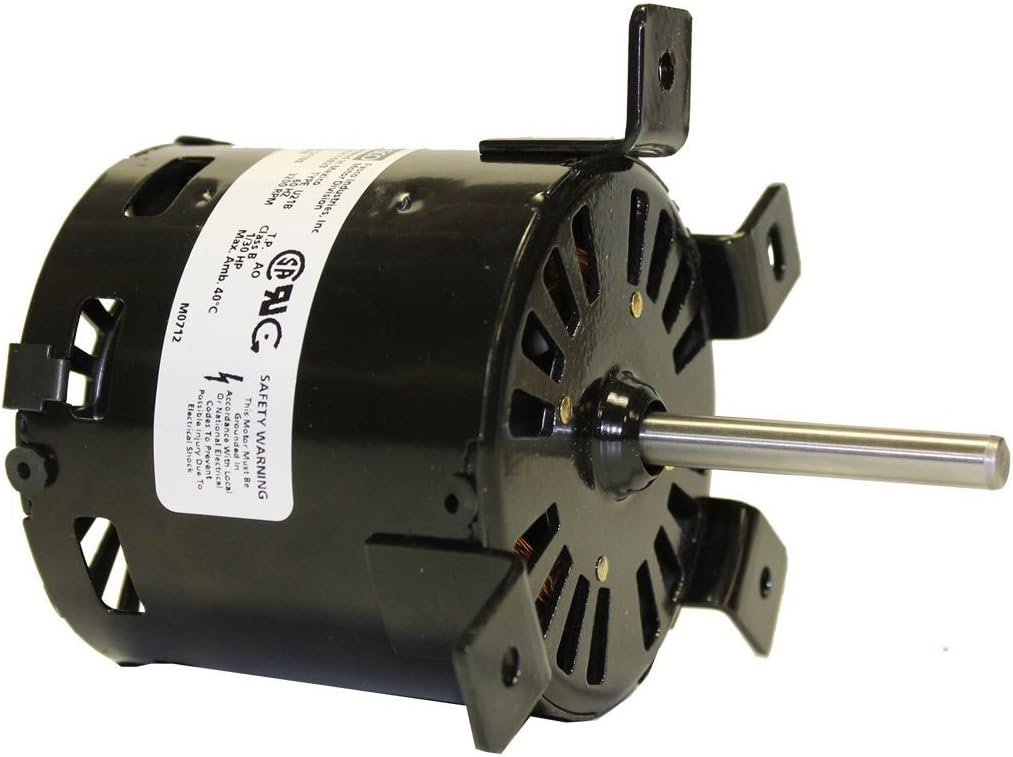

The Fasco D1198 Shaded Pole Motor is designed for high performance and reliability. This motor operates at 3200 RPM with a 1/30 HP power rating, making it suitable for various fan and blower applications. The motor runs on 115 volts and has a current draw of 1.5 amps. It features a counterclockwise shaft end (CCWSE) rotation and includes thermal protection for added safety.
- 3200 RPM speed
- 1/30 HP power rating
- 115 volts, 1.5 amps
Product Highlights
The Fasco D1198 ensures consistent performance in demanding environments. It is an ideal replacement motor compatible with Lennox 7121-8774. The open air-over design and sleeve bearings contribute to its durability and low maintenance requirements.
Product Information
Standard Information
Technical Specifications
-
Horsepower: 1/30 HP
-
Speed: 3200 RPM
-
Voltage: 115 Volts
-
Amperage: 1.5 Amps
-
Frame Size: 3.3 inches
-
Rotation: Counterclockwise Shaft End
-
Enclosure Type: Open Air Over
-
Mounting Type: Lug
-
Bearings Type: Sleeve
-
Thermal Protection: Automatic
-
Insulation Class: B
-
Shaft Diameter: 5/16 inches
-
Shaft Extension: 2.3 inches
-
Max Ambient Temperature: 40 Degrees C
-
Country of Origin: Mexico
-
Weight: 3.57 pounds
