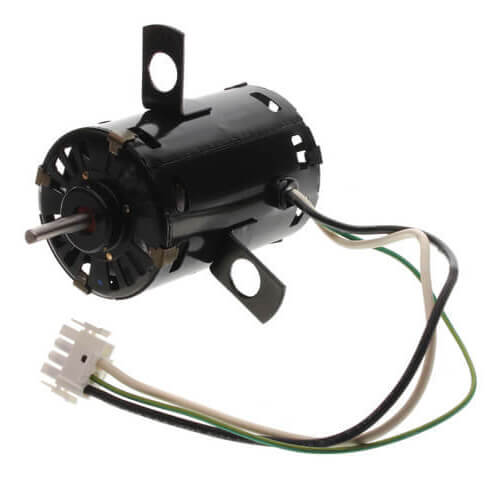

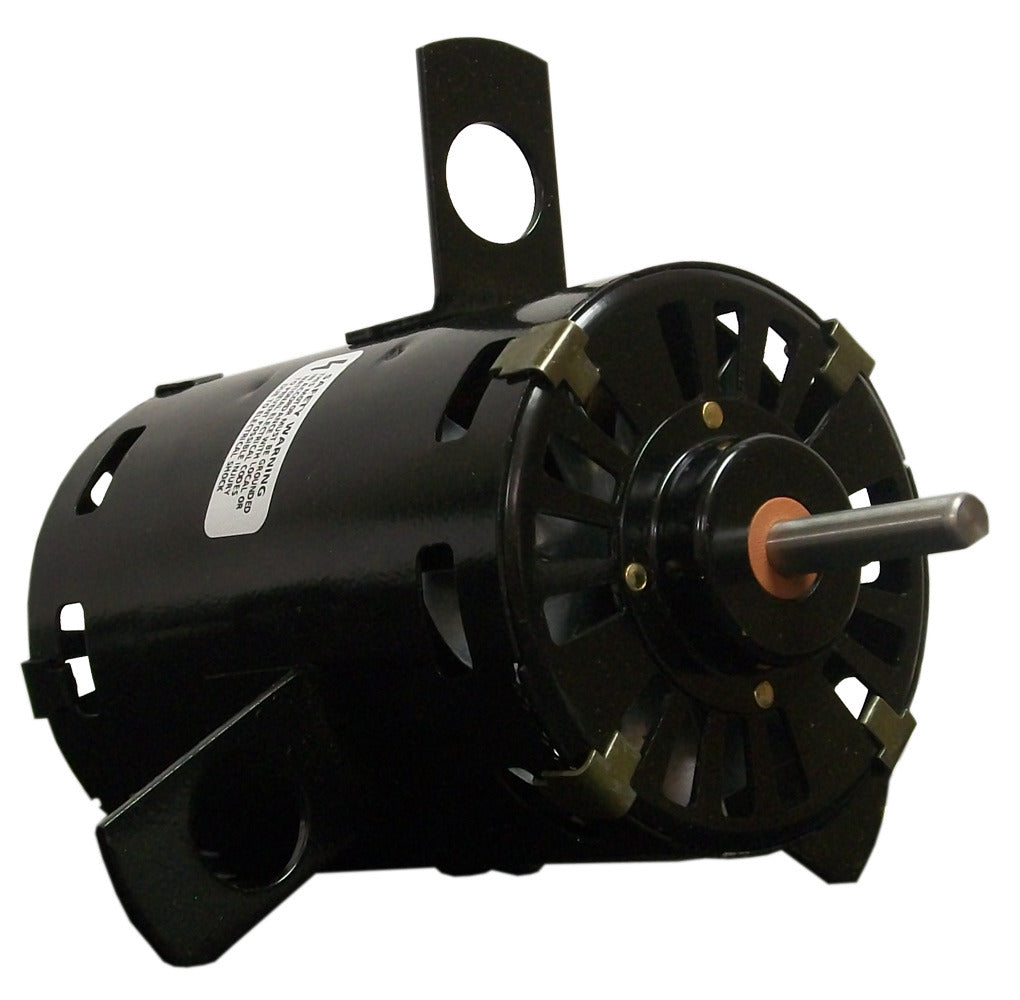

Fasco D1190 1/30HP 3000RPM CW 115/230V Replacement Motor

Product Description

The Fasco D1190 is a 1/30 HP motor operating at 3300 RPM. It works at both 115 and 230 volts, making it versatile for various applications. Designed primarily for HVAC systems, this motor is suitable for air over duty and features a shaded pole design for energy efficiency. The product is thermally protected, ensuring safety during operation, and has a clockwise rotation.

• Horsepower: 1/30 HP
• Speed: 3300 RPM
• Voltage: 115/230V

Product Highlights

This motor is an OEM replacement for various brands, particularly suitable for systems requiring a compact and reliable motor solution.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1190

Technical Specifications

• Application: HVAC
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Clockwise
• Shaft Type: Flat
• Mounting: Lug Bracket
• Amperage: 1.55 A
• Shaft Diameter: 0.313 inches
• Shaft Extension: 1.75 inches
• Insulation Class: B
• Max Ambient Temperature: 104°F
