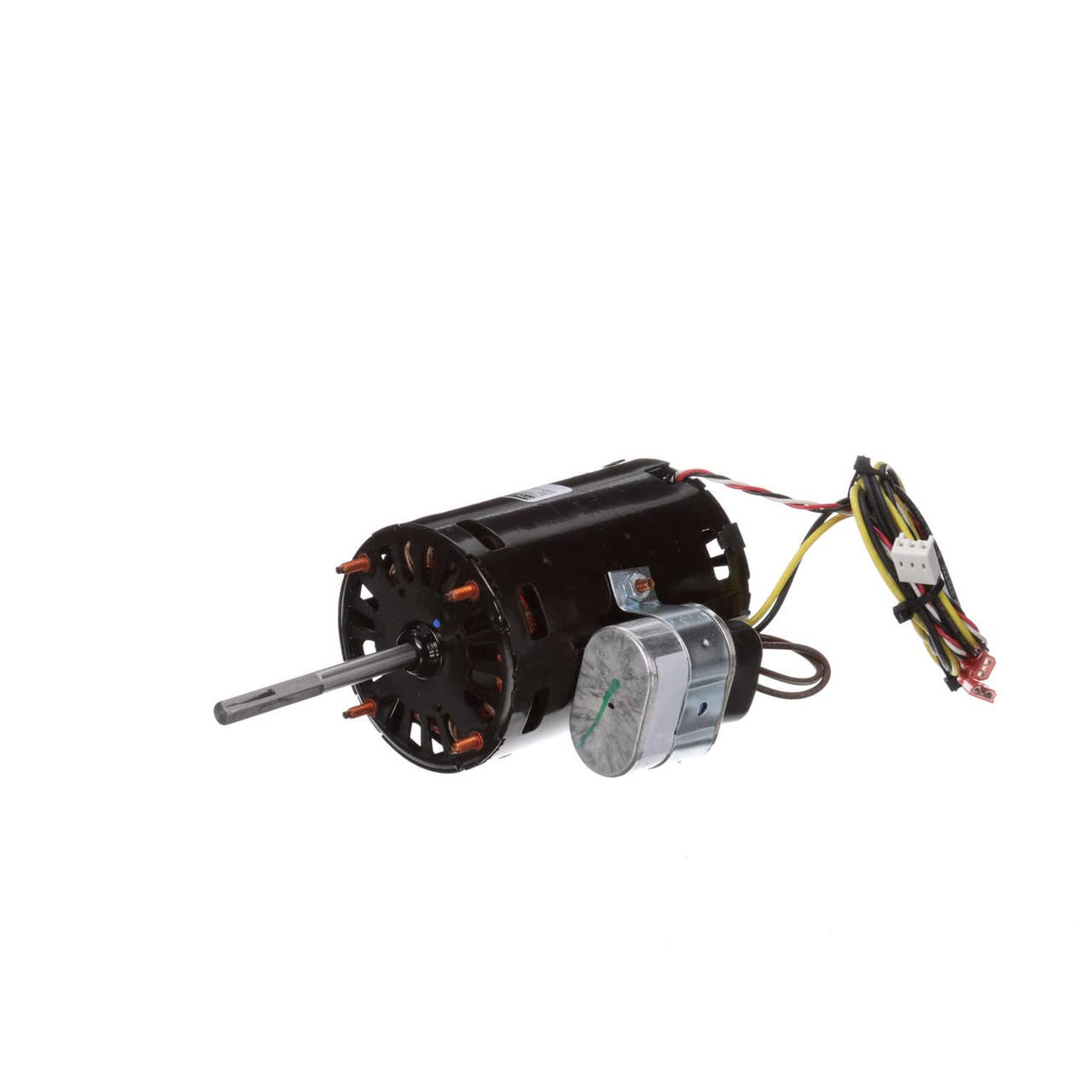

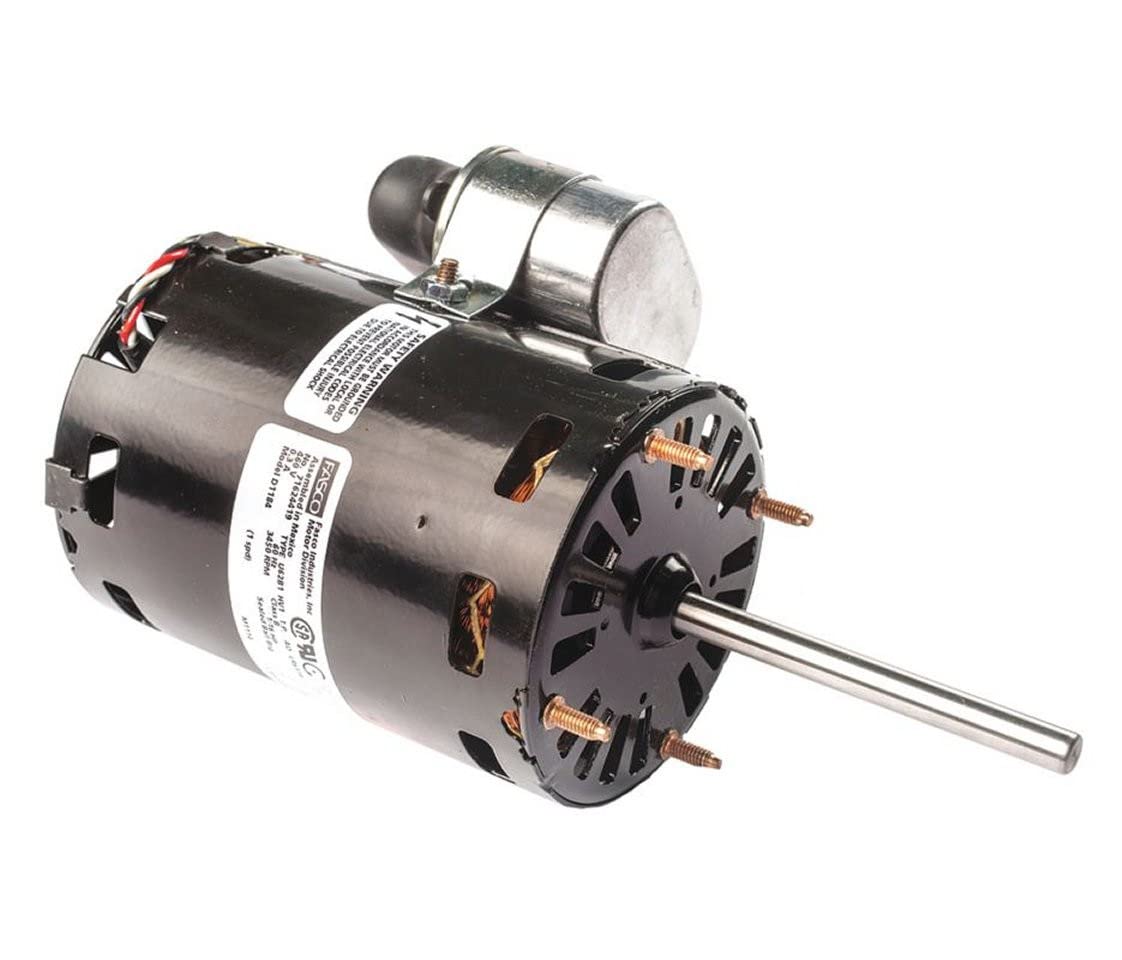

Fasco D1184 1/16hp 3450RPM 460 Volts Fan Motor

Product Description

The Fasco Draft Inducer Blower Motor, model D1184, operates at one-sixteenth horsepower with a speed of three thousand four hundred fifty RPM. It is designed for applications requiring effective airflow and is suitable for use in various HVAC systems.

• Voltage: Four hundred sixty volts
• Frame Diameter: Three point three inches
• Rotation: Counterclockwise shaft end

Product Highlights

This motor is built for efficiency and reliability in air handling systems. It features a permanent split capacitor design that ensures stable performance.

Product Information

Standard Information

• Manufacturer: Fasco
• Motor Type: Draft Inducer Blower Motor

Technical Specifications

• MPN: D1184
• Horsepower: 1/16 hp
• Speed: 3450 RPM
• Voltage: 460 V
• Amperage: 0.3 A
• Frame Diameter: 3.3 inches
• Shaft Diameter: 0.312 inches
• Insulation Class: B
• Maximum Ambient Temperature: 40 °C
• Motor Enclosure Design: Open air-over
• Bearings Type: Ball
• Mounting Type: Extended studs
• Capacitor Required: Supplied with motor
