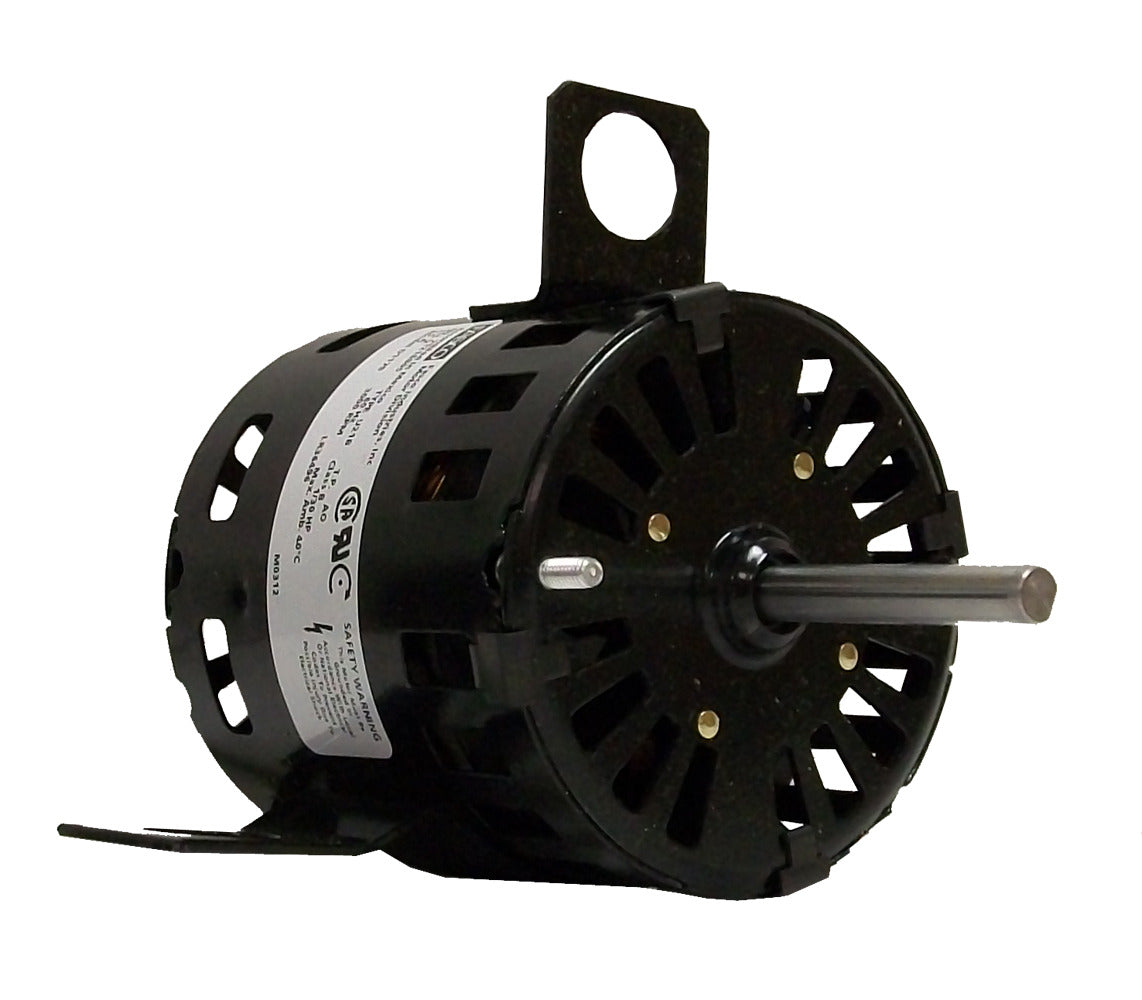

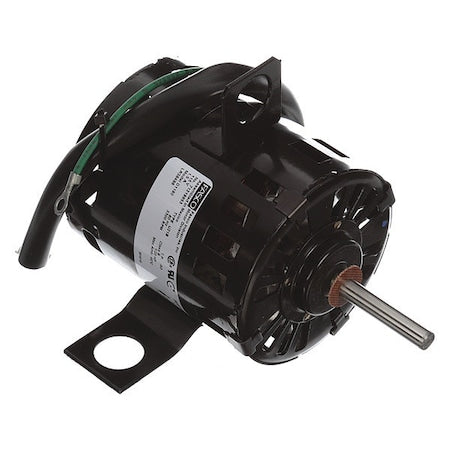

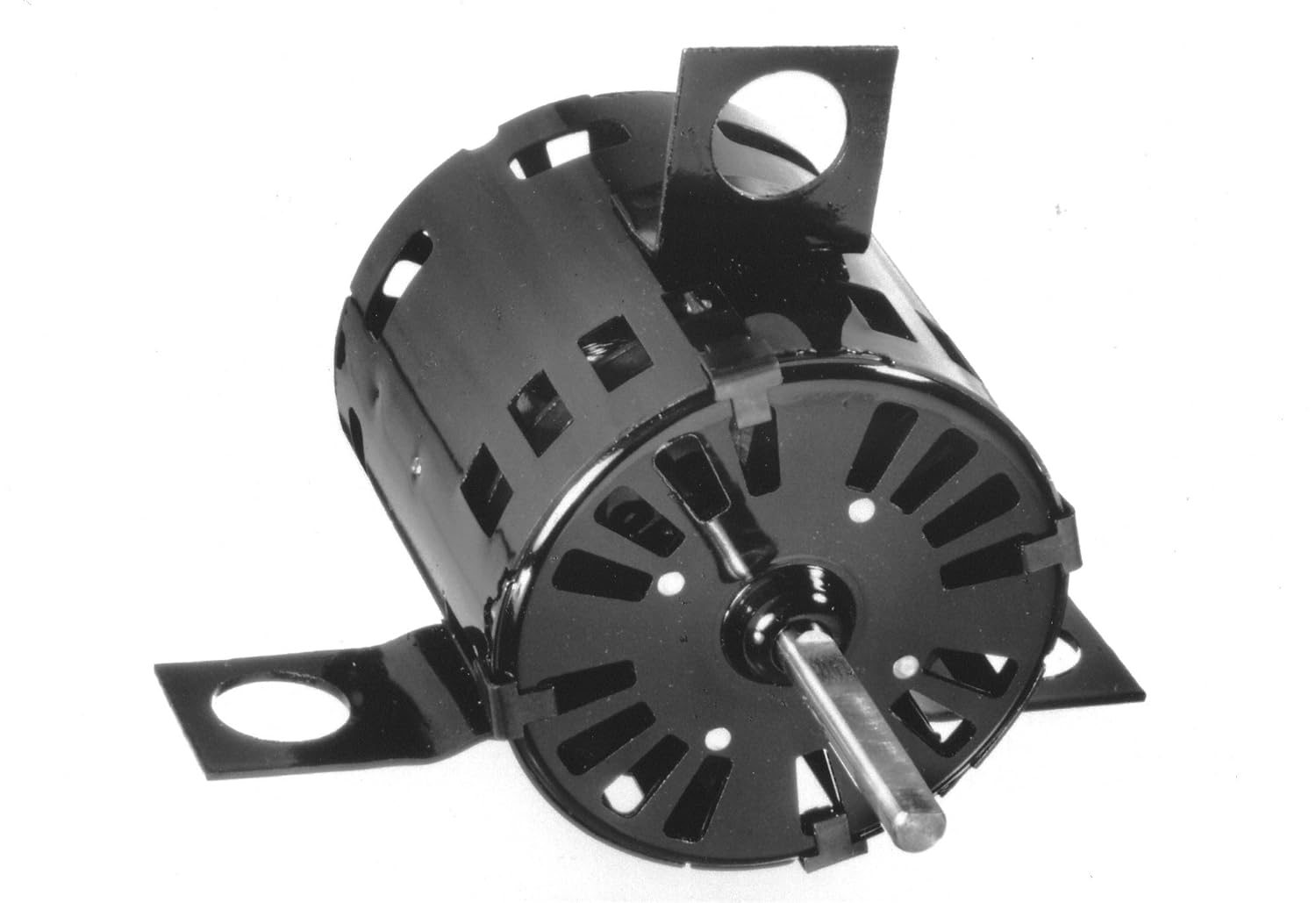

Fasco D1180 3.3 Frame Open Ventilated Shaded Pole Flue Exhaust and Draft Booster Blower Motor, 1/20HP, 3300rpm, 115V, 60Hz, 1.9 amps

Product Description

The Fasco D1180 is a 3.3 frame open ventilated shaded pole flue exhaust and draft booster blower motor with sleeve bearing. It is designed for various exhaust applications, offering robust performance and reliability.

• Open ventilated shaded pole flue exhaust and draft booster blower motor
• Clockwise shaft end rotation
• Thermally protected for safety

Product Highlights

This motor is ideal for use in flue exhaust systems and draft booster applications. It features a stainless steel shaft and is thermally protected, ensuring reliable performance and durability. The motor rotates in a clockwise direction at the shaft end and operates at a speed of 3300 RPM, providing efficient airflow.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1180
• Voltage: 115 Volts
• Horsepower: 0.05 hp
• RPM: 3300

Technical Specifications

• Speed: 3300 RPM
• Voltage: 115 Volts
• Material: Stainless Steel
• Horsepower: 0.05 hp
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.1 inches
• Frame: 3.3 inches
• Frequency: 60 Hz
• Insulation Class: B
• Bearing Type: Sleeve
• Amperage: 1.5 A
• Rotation: Clockwise Shaft End
• Enclosure: Open Air Over
• Mounting Type: Lug
• Protection: Thermally Protected
