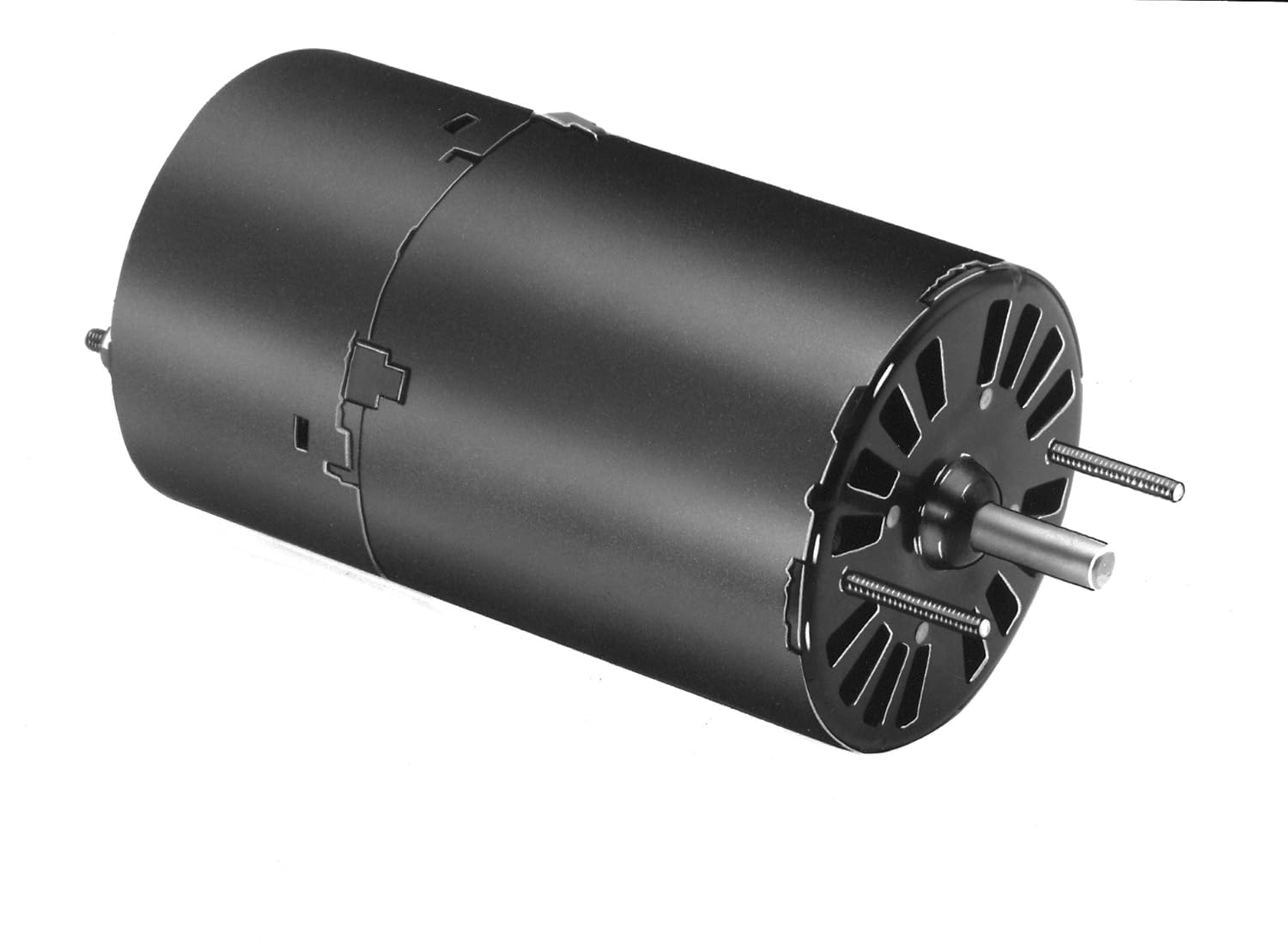

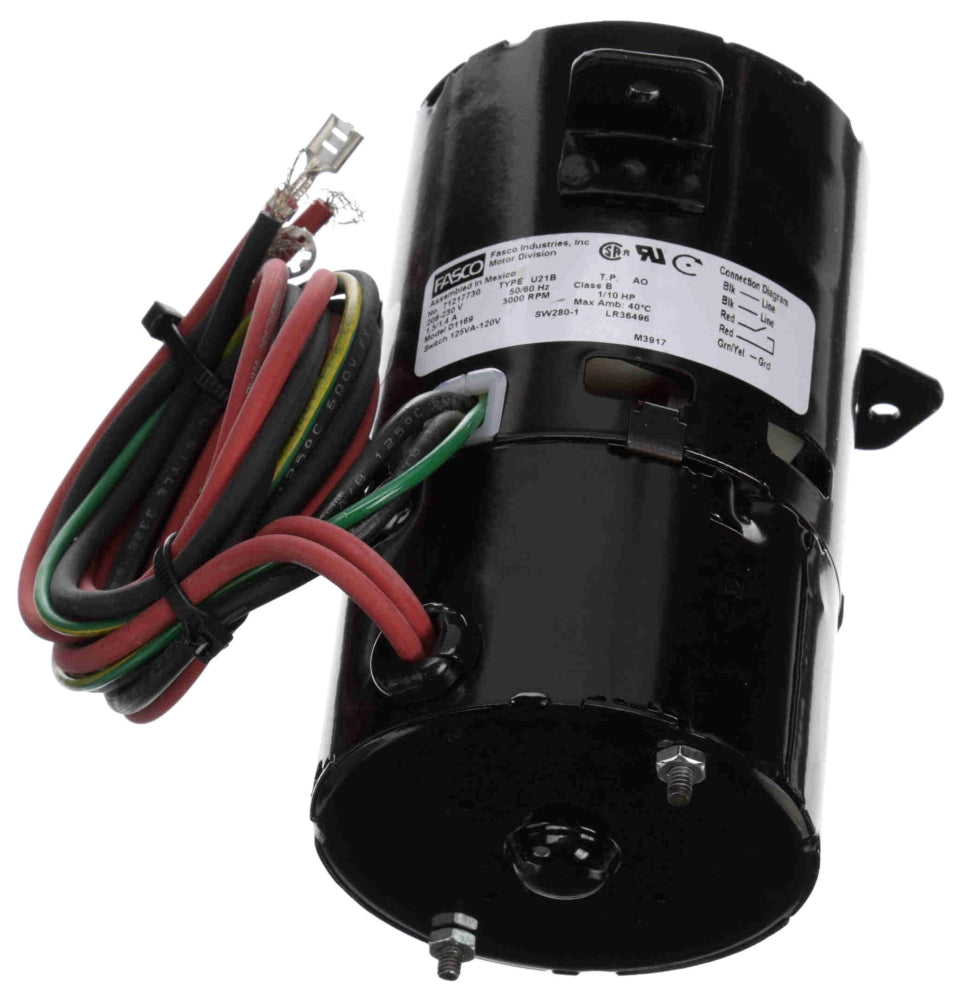

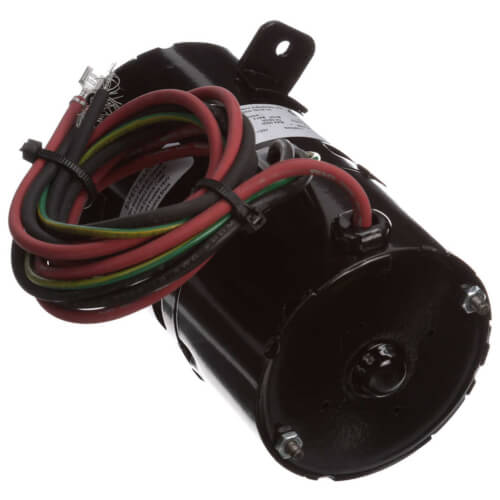

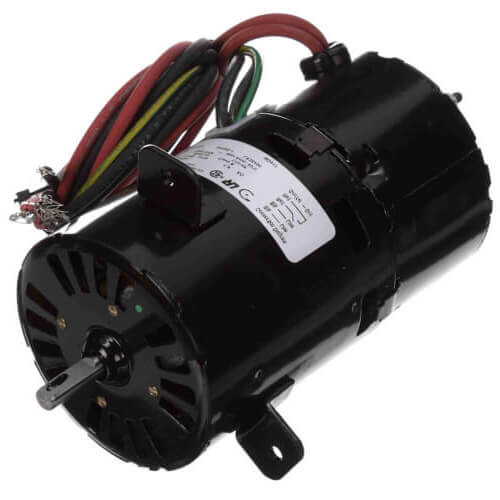

Fasco D1169 1/10HP 3000RPM CCW 3.3 Diameter 208-230 Volts Draft Inducer Motor

Product Description

The Fasco D1169 Draft Inducer Motor, MPN D1169, is engineered for reliable performance in HVAC applications. It's a 1/10 horsepower motor with a 3000 RPM speed and operates on 208-230 volts. Designed with counterclockwise shaft end rotation, this motor is suitable for various fan and blower systems.

• 1/10 horsepower motor
• 3000 RPM speed
• 208-230 volts operating range

Product Highlights

This motor features a semi-enclosed, open air-over design and a shaded pole construction, making it thermally protected and CSA certified. The motor includes sleeve bearings and a steel frame for durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1169

Technical Specifications

• Power Rating: 1/10 HP
• Speed Rating: 3000 RPM
• Voltage Rating: 208-230 Volt AC 1-Phase
• Amperage: 1.5/1.4 Amp
• Insulation Class: B
• Frame Material: Steel
• Mounting: Lug
• Enclosure Type: Semi Enclosed, Open Air-Over
• Rotation Type: Counter Clockwise Shaft End
• Bearing Type: Sleeve
• Ambient Temperature Rating: 40 Degrees C
• Number of Poles: 2
• Approvals: UL, CSA
