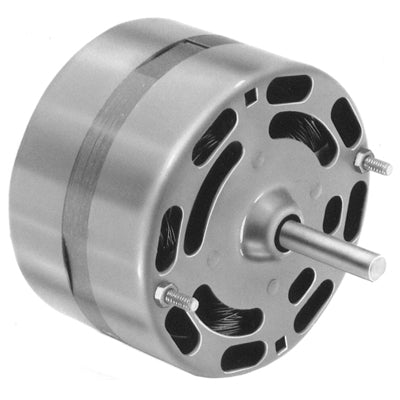

Genteq Motors D1167 Motor 230v 1/40

Product Description

The GENTEQ MOTORS D1167 motor is a 230V, 1/40 HP replacement motor. It features a shaded pole design, thermal protection, and open air over enclosure. This motor is suitable for various applications requiring a compact and efficient power source, such as draft inducers.

• OEM Direct Replacement Motor
• 3.3" Diameter
• Thermally Protected

Product Highlights

The GENTEQ MOTORS D1167 is a reliable replacement motor with a shaded pole design and thermal protection.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D1167
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/40 Hp
• Output KW: 0.02 kW
• Voltage: 208-230 V
• Speed: 3000 rpm
• Frame: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: .55 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Shaft End
• Mounting: Lug
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Double Flat
• Overall Length: 6.18 in
• Frame Length: 2.50 in
• Shaft Diameter: 0.313 in
• Shaft Extension: 1 in
