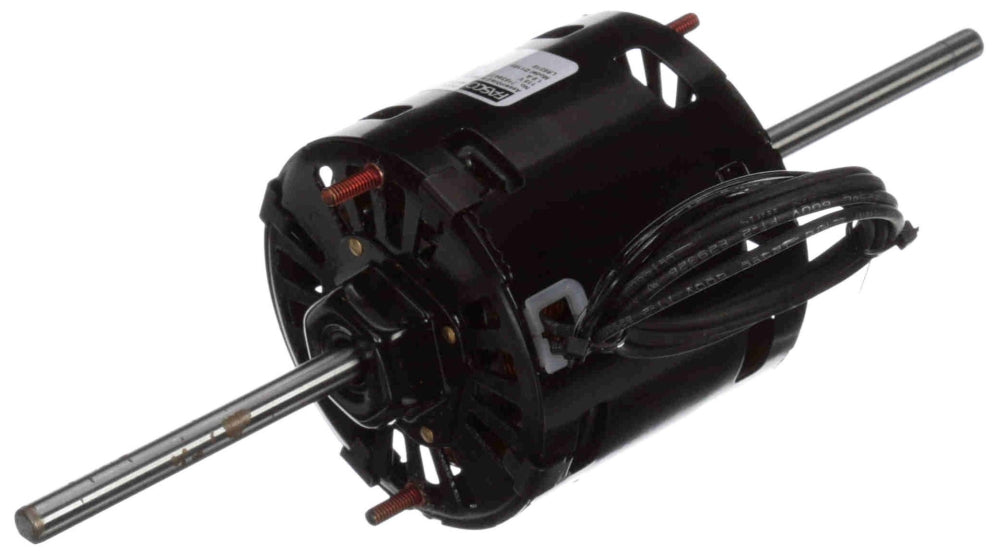

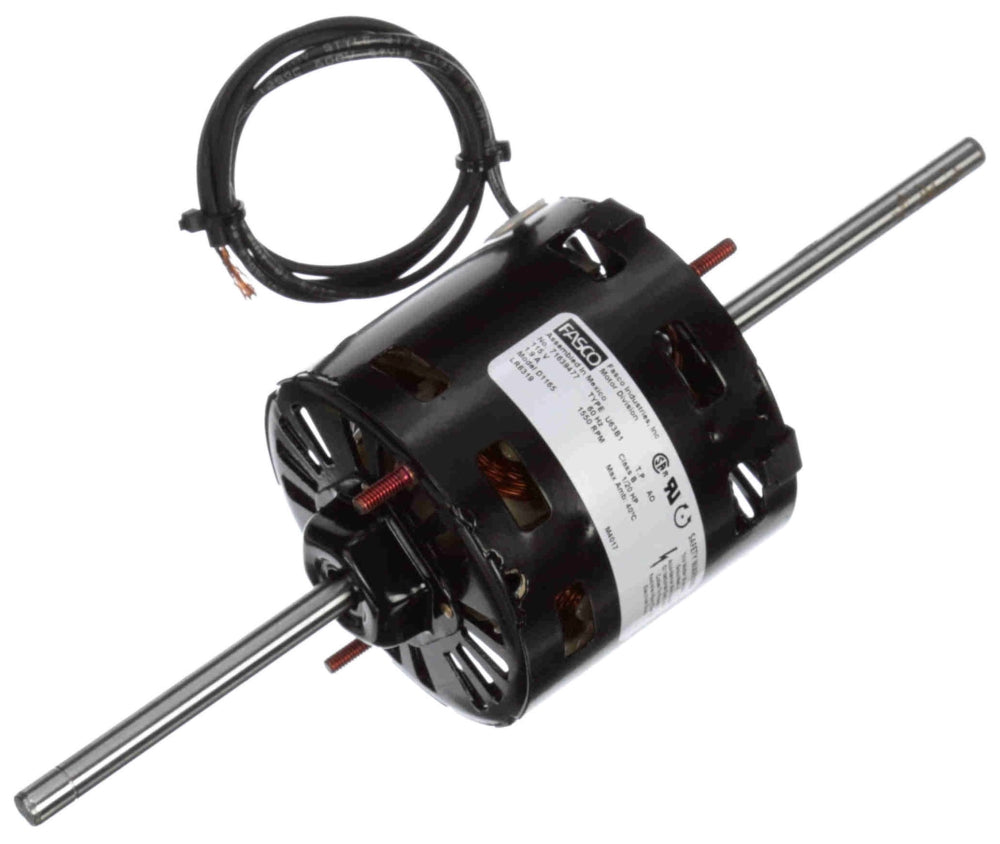

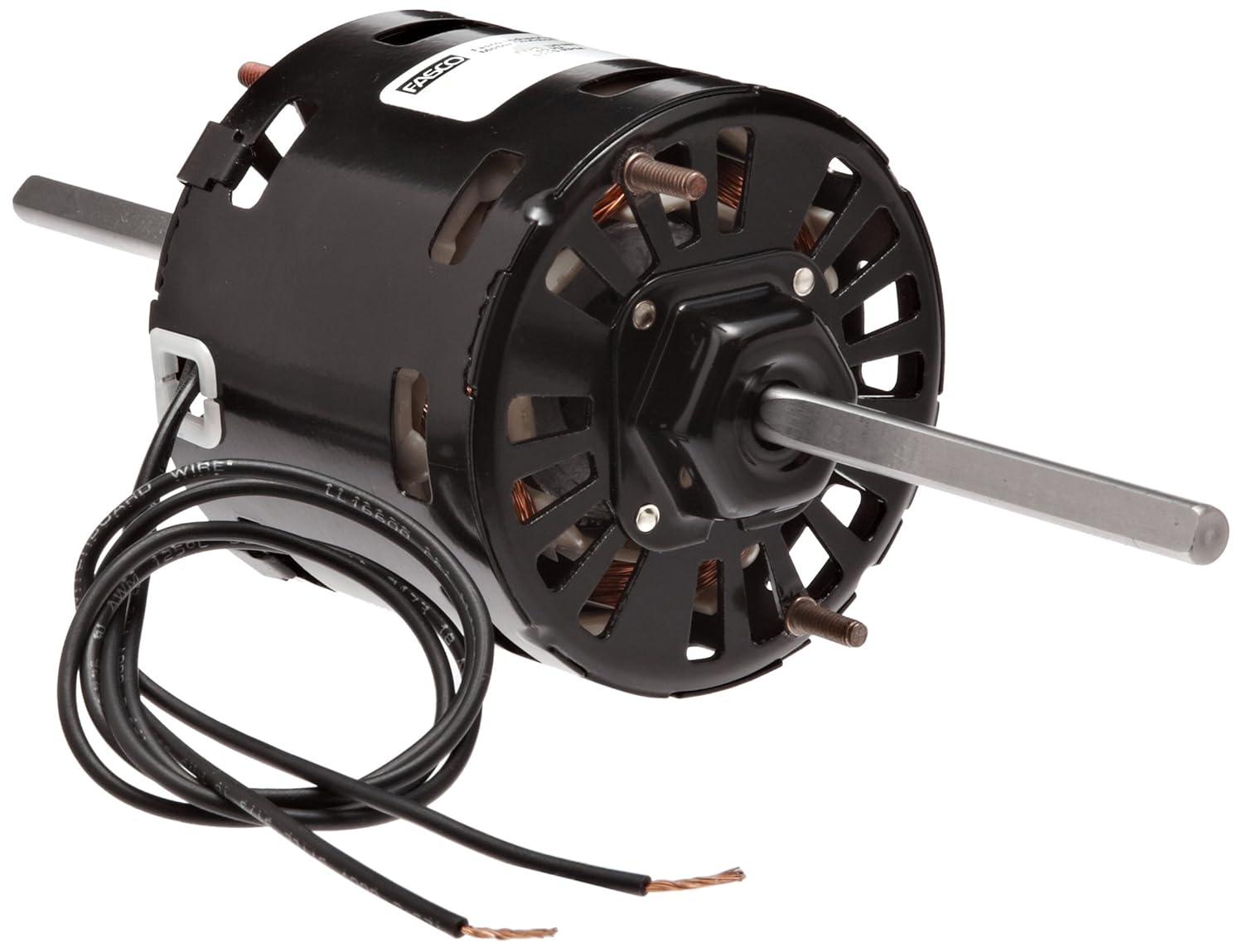

Fasco D1165 OEM Replacement Motor 1/20HP 1550RPM 115V

Product Description

The Fasco D1165 OEM Replacement Motor is an efficient and reliable motor ideal for various applications. This motor has a 1/20 horsepower and operates at 1550 RPM with a voltage of 115V. It's designed with a shaded pole and completely enclosed air-over protection.

• 1/20 HP power rating
• 115V voltage
• 1550 RPM speed

Product Highlights

This motor includes thermal protection and a double shaft end rotation. It's CSA certified and UL recognized, ensuring high standards and safety.

Product Information

Standard Information

• Manufacturer: Fasco
• Brand: Fasco

Technical Specifications

• Power Rating: 1/20 HP
• Speed Rating: 1550 RPM
• Voltage Rating: 115V AC
• Insulation Class: B
• Frame Material: Steel
• Mounting Type: Extended Studs
• Weight: 4 pounds
• Approval: UL, CSA
• Shaft Size: 0.313 inches diameter x 3.5 inches length
• Rotation Type: Clockwise Lead End
• Bearing Type: Sleeve
• Number of Poles: 4
• Ambient Temperature Rating: 40 degrees Celsius
• Motor FLA: 1.9 Amp
