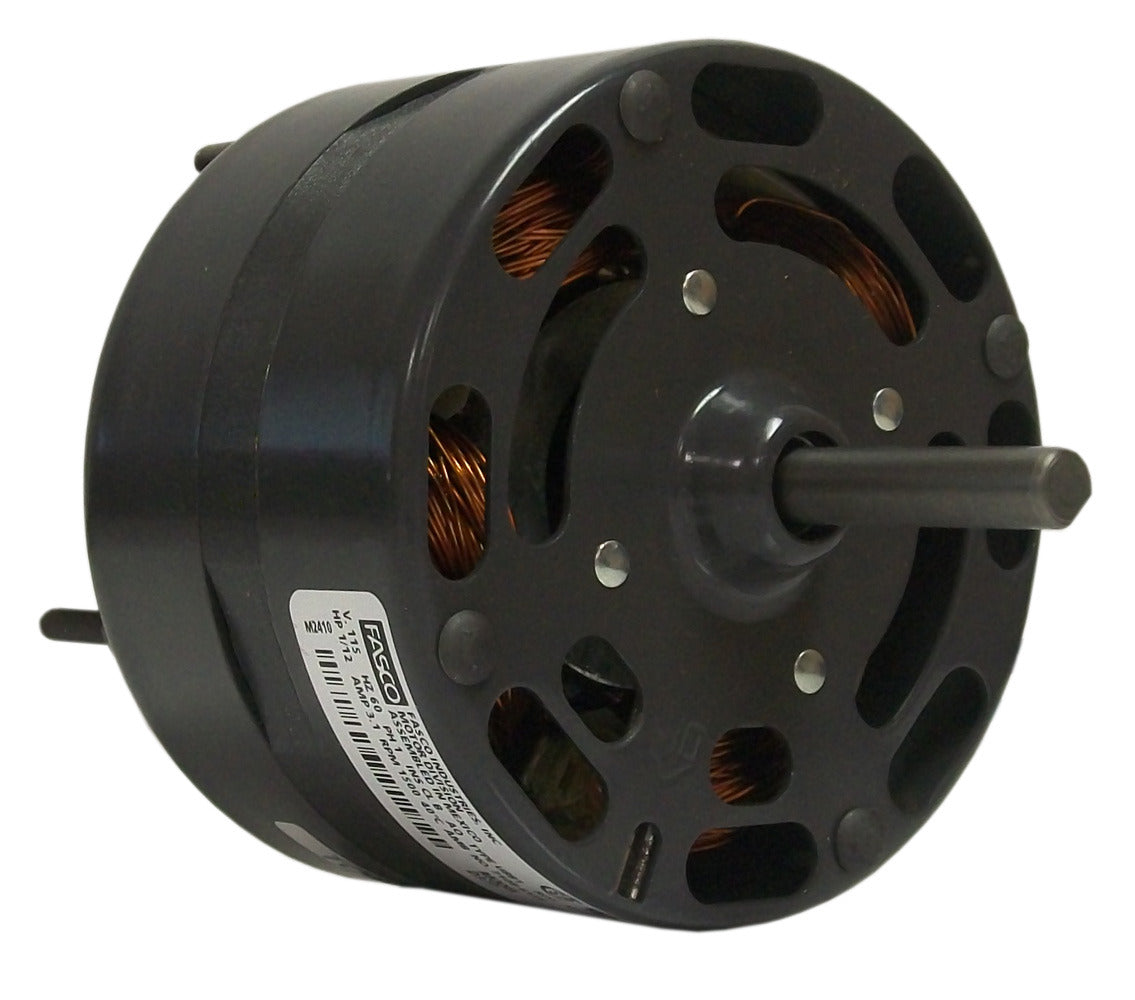

Fasco D116 Motor Fan/Blower 1/15 Horsepower 1500 Revolutions per Minute 115 Volt 4.4 Inch Shaded Pole Motor

Product Description

The Fasco D116 is a shaded pole motor designed for HVAC applications, providing reliable performance with a 1/15 horsepower rating and operating at 1500 revolutions per minute. This motor is suitable for use in various systems requiring consistent air flow. Its compact design with a diameter of four point four inches allows for easy installation in tight spaces.

• Low-profile design for easy installation in tight spaces.
• Operates at 1500 RPM with a 1/15 HP output.
• Thermally protected for enhanced safety.

Product Highlights

This motor features a clockwise rotation shaft end and is ideal for running fans and blowers in many HVAC systems. The D116 is thermally protected to prevent overheating, providing peace of mind during operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D116

Technical Specifications

• Horsepower: 1/15 HP
• Voltage: 115 V
• Speed: 1500 RPM
• Electrical Type: Shaded Pole Motor
• Rotation: Clockwise Shaft End
• Diameter: 4.4 inches
• Amperage: 2.4 A
• Phase: 1
• Number of Poles: 4
• Overload Protection: Thermally Protected
• Enclosure: Open Air Over
• Insulation Class: A
• Frequency: 60 Hz
• Mounting: Extended Studs
• Shipping Weight: 5 lbs
