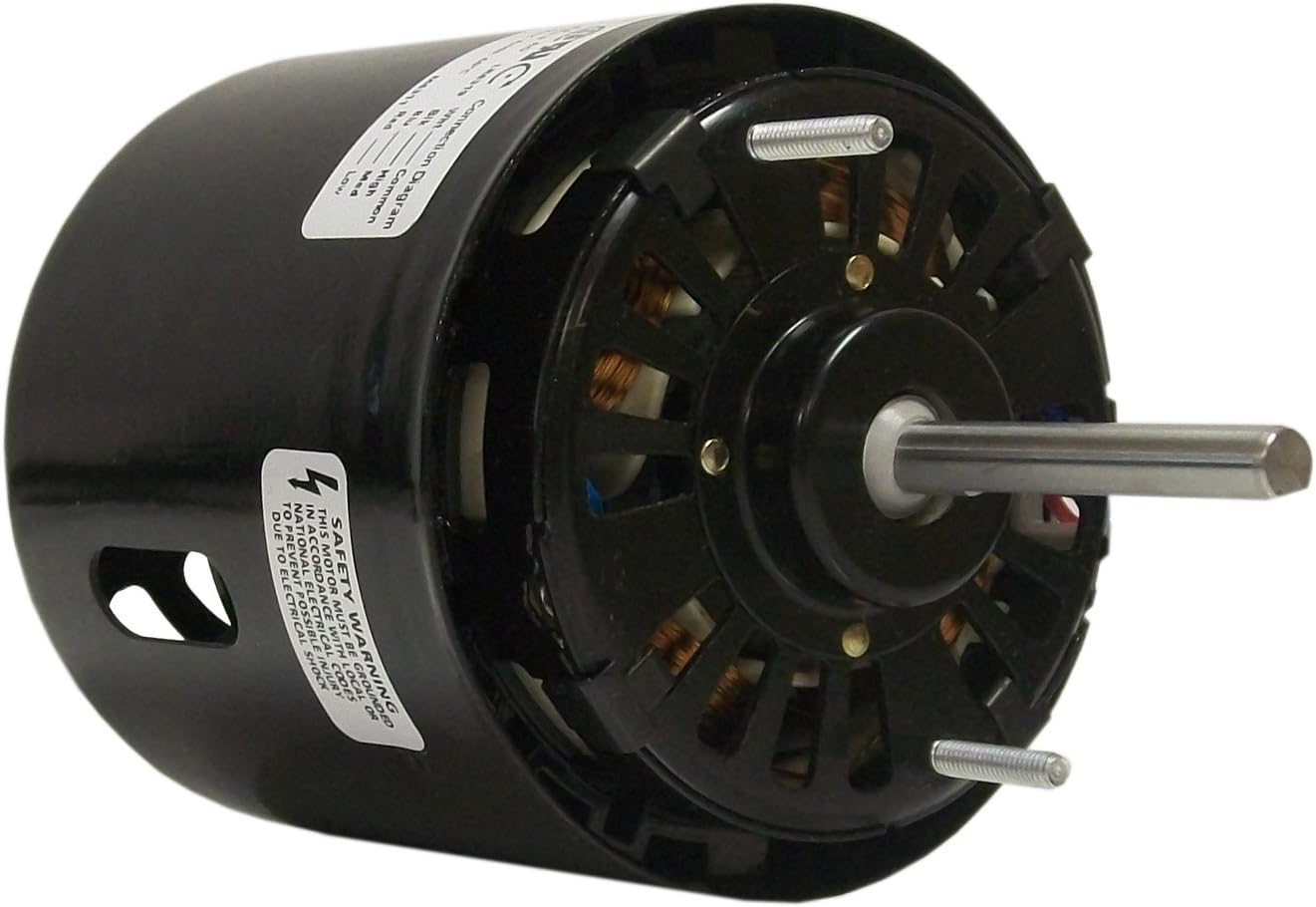

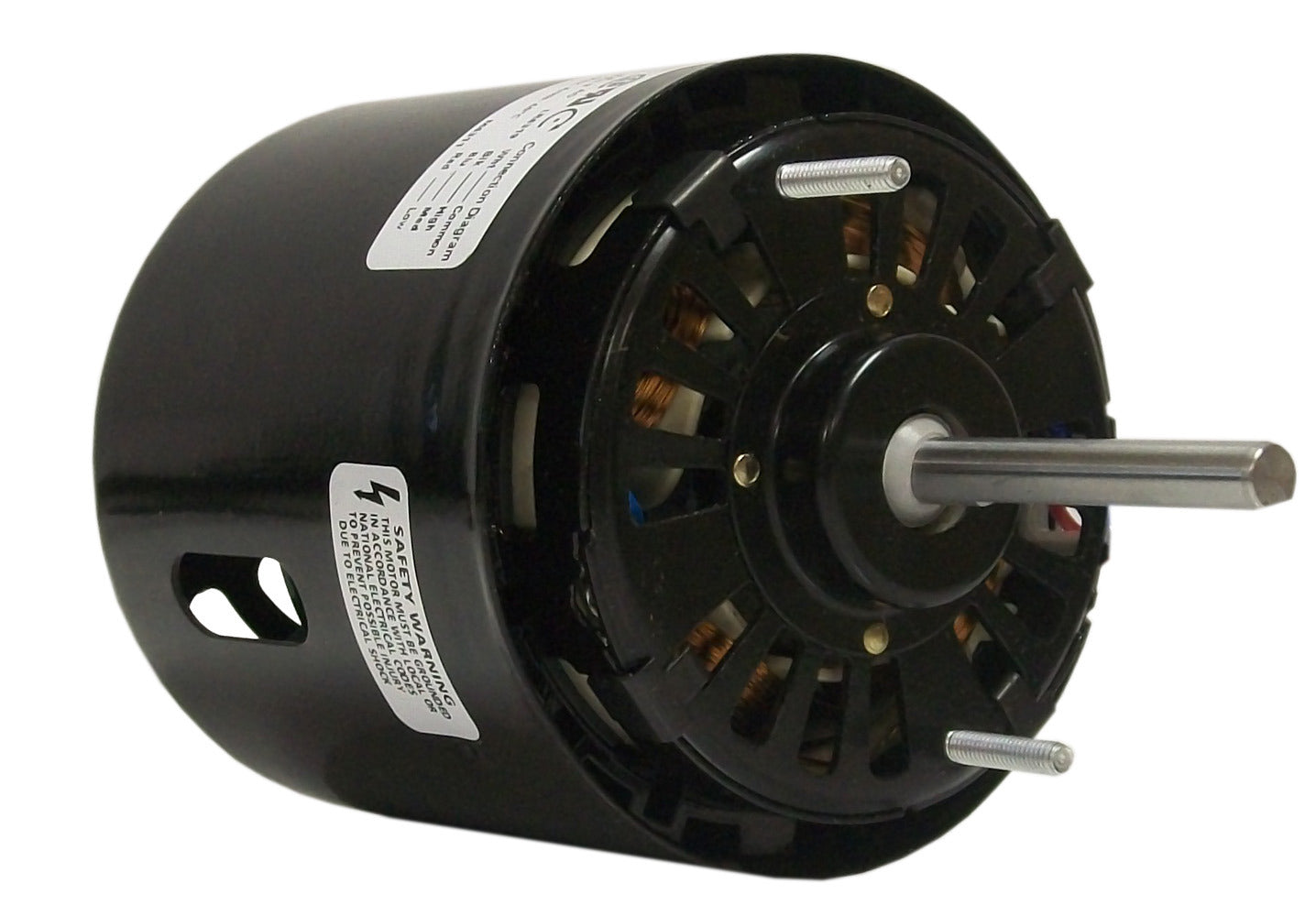

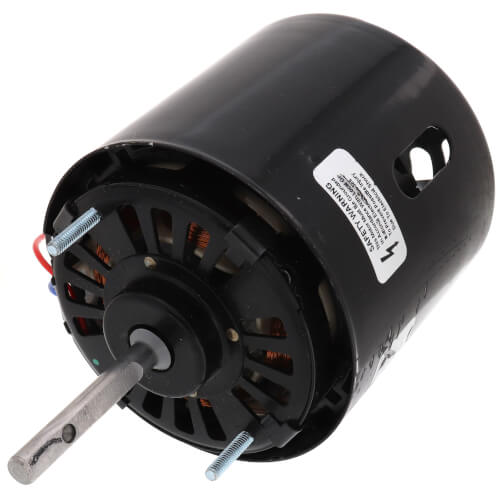

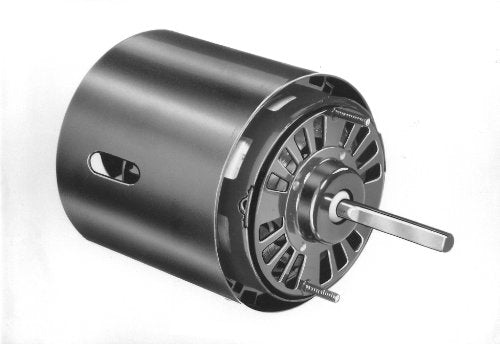

Fasco D1138 3-Speed Shaded Pole Motor 1550 RPM 115V 1/50-1/80-1/140 HP

Product Description

The Fasco D1138 3-Speed Shaded Pole Motor is a versatile and efficient motor designed for various applications. With a 3.3-inch diameter and 115 volts, this motor provides a reliable performance for HVAC and fan motor uses. It operates at 1550 RPM, offering three different horsepower options: 1/50, 1/80, and 1/140.

• Open ventilated shaded pole motor with sleeve bearing
• Thermally protected
• Clockwise shaft end rotation

Product Highlights

This motor features an open ventilated design, self-cooling mechanism, and is UL recognized and CSA certified. It is suitable for mechanical duty applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1138
• Voltage: 115
• Horsepower: 1/50, 1/80, 1/140
• Speed: 1550 RPM
• Amperage: 0.9/0.6/0.5
• Rotation: Clockwise Shaft End

Technical Specifications

• Shaft Diameter: 0.313 inches
• Shaft Length: 2.5 inches
• Frame Size: 3.3 inches
• Overall Length: 6.59 inches
• Insulation Class: B
• Enclosure Type: Open Air Over
• Mounting Type: Extended Studs
• Temperature Rating: 40 degrees Celsius
