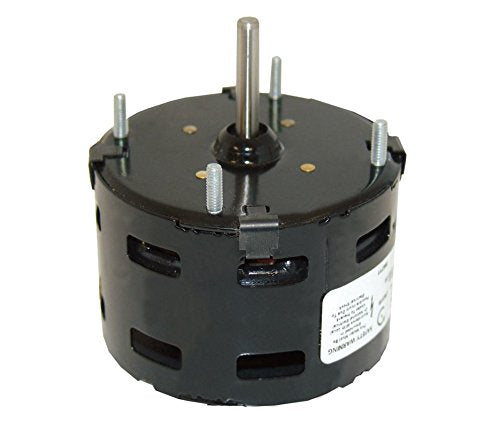

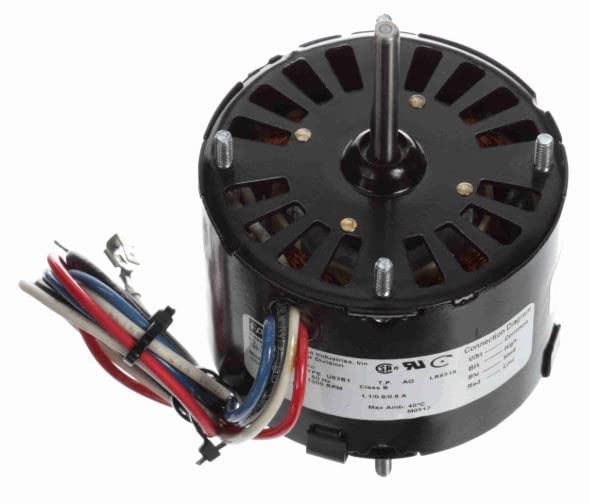

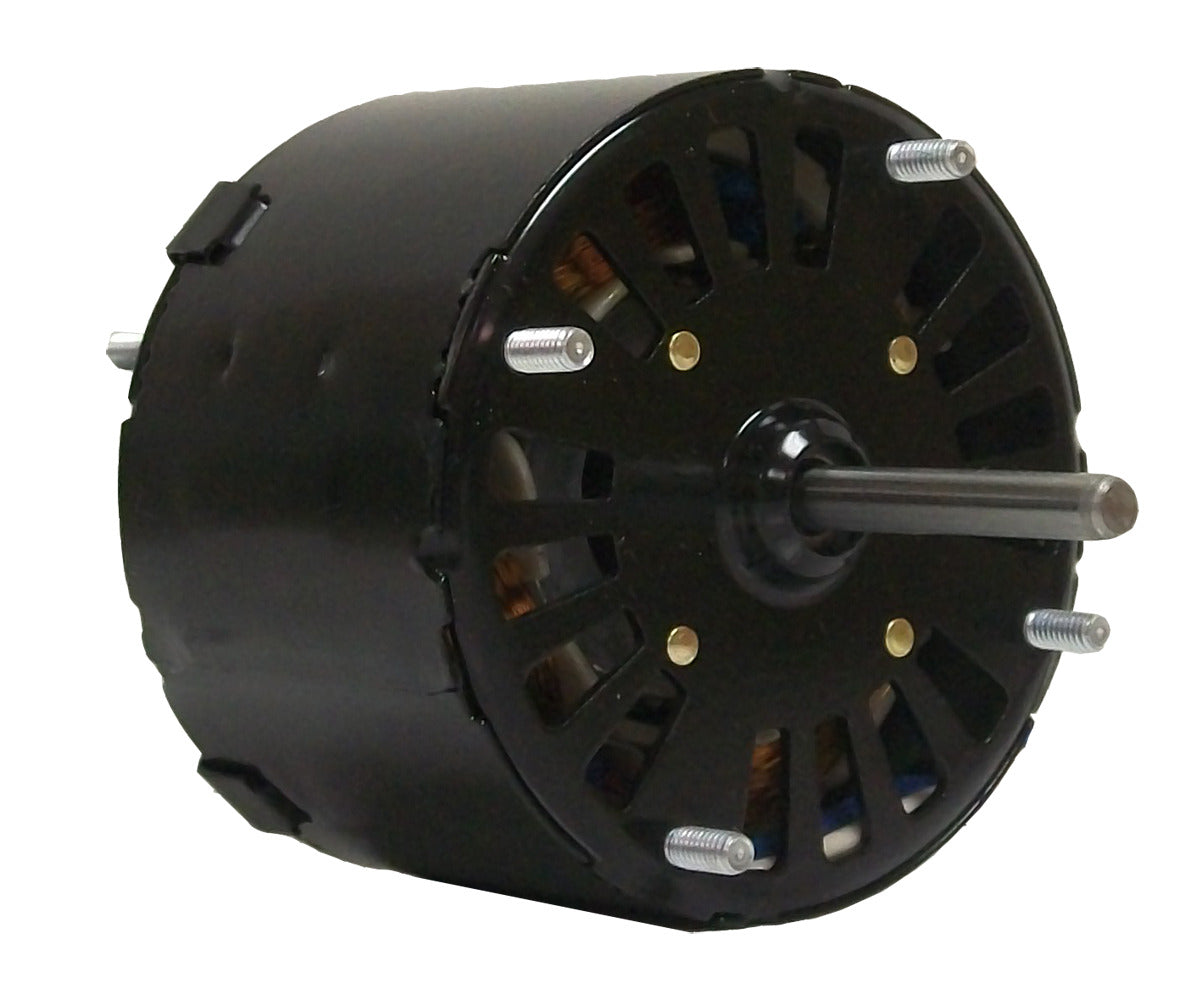

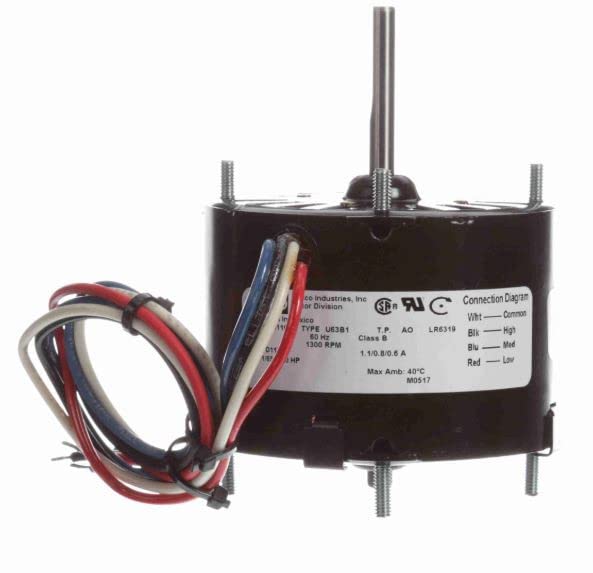

Fasco D1134 Motor 1/50-1/65-1/80 HP 120V CW

Product Description

The Fasco D1134 motor provides efficient operation at one-fifty to one-eighty horsepower with a voltage rating of one hundred twenty volts. This shaded pole motor has a clockwise rotation and is designed for various applications, including HVAC systems. It features a robust sleeve bearing construction and is thermally protected for enhanced service longevity. The motor runs at a speed of fifteen hundred RPM, and its compact dimensions allow for easy installation in tight spaces.

• Open ventilated shaded pole design
• Thermally protected with UL recognition
• Three-speed options for versatile use

Product Highlights

This Fasco motor is perfect for general purpose applications, offering reliable performance and high efficiency in a durable construction.

Product Information

Standard Information

• Motor Type: Shaded Pole
• Horsepower: 1/50, 1/65, 1/80

Technical Specifications

• Speed: 1500 RPM
• Voltage: 120V AC
• Amperage: 1.10/0.80/0.60
• Frame Size: 3.3 inches
• Rotation: Clockwise Shaft End
• Mounting Type: Extended Studs
• Motor Length: 2-1/4 inches
• Weight: 8 pounds
