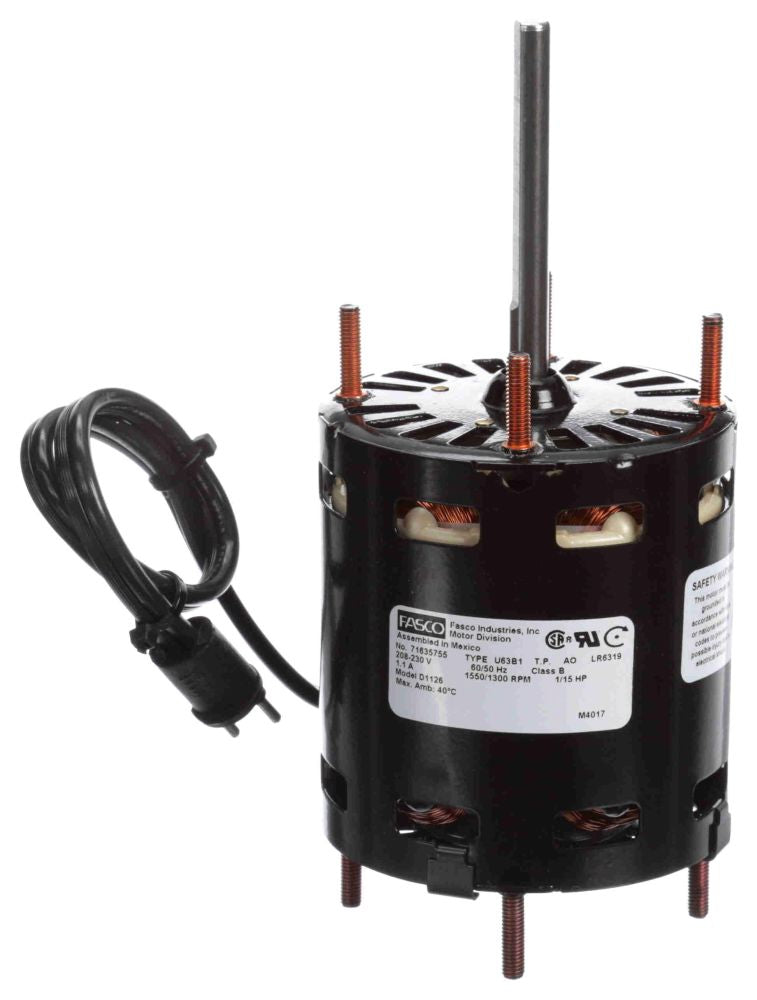

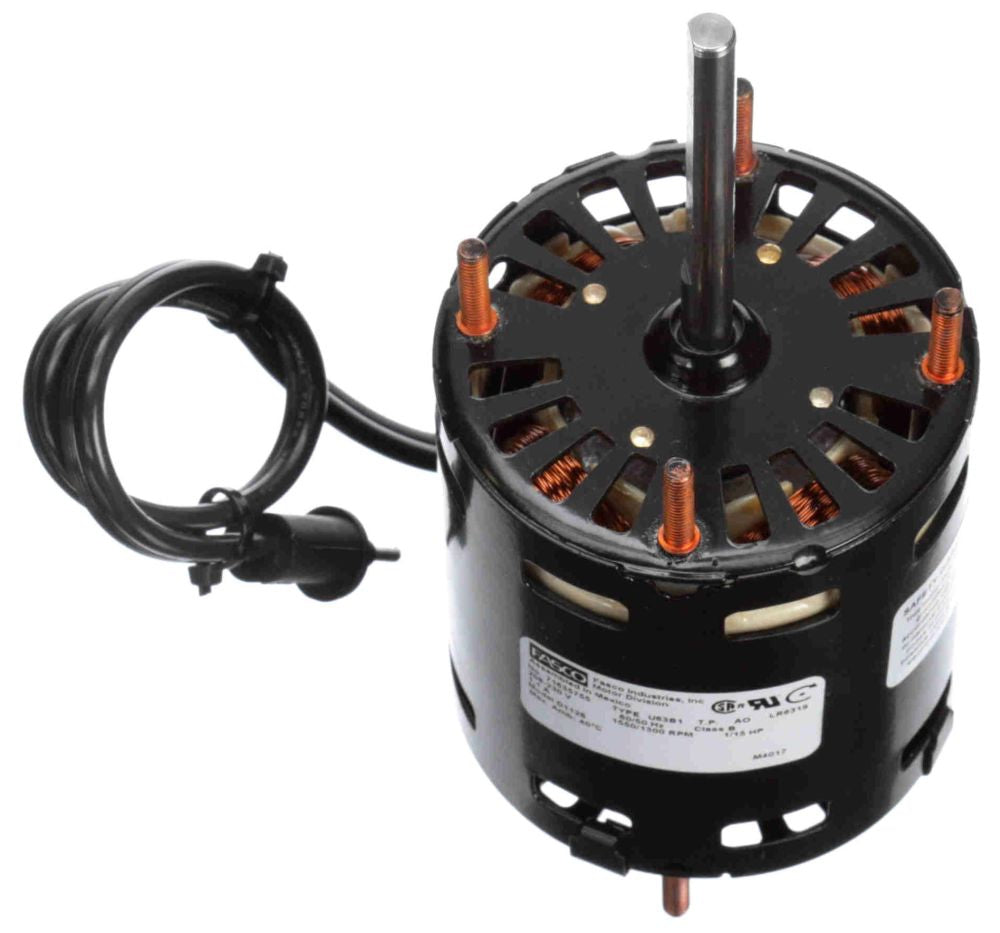

Fasco D1126 1/15 HP CW Motor 208 to 230 VAC (3.3 x 6.92)

Product Description

The Fasco D1126 is a refrigeration fan motor designed for various HVAC applications. This motor operates at a power rating of one-fifteenth horsepower (1/15 HP) and is suitable for voltage ranges from two hundred eight to two hundred thirty volts alternating current (VAC) at sixty hertz (Hz). It features a shaded pole design and utilizes a steel frame, ensuring durability in demanding environments.

• Power Rating: 1/15 HP
• Voltage Rating: 208 to 230 VAC
• Speed: 1550/1300 RPM

Product Highlights

This motor offers reliable performance for refrigeration coil and fan applications. Its open air-over design allows for enhanced airflow while maintaining efficient operation. It is thermally protected and equipped with sleeve bearings for smooth operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1126

Technical Specifications

• Enclosure Type: Open Air-Over
• Frame Material: Steel
• Service Factor: 1
• Insulation Class: B
• Number of Poles: 4
• Weight: 5 pounds
• Ambient Temperature Rating: 40 degrees Celsius
• Shaft Type: Flat
• Mount Type: Extended Stud
• Rotation Type: Clockwise Shaft End
