Genteq Motors D1125 Mtr Bohn 1/15 HP

Product Description

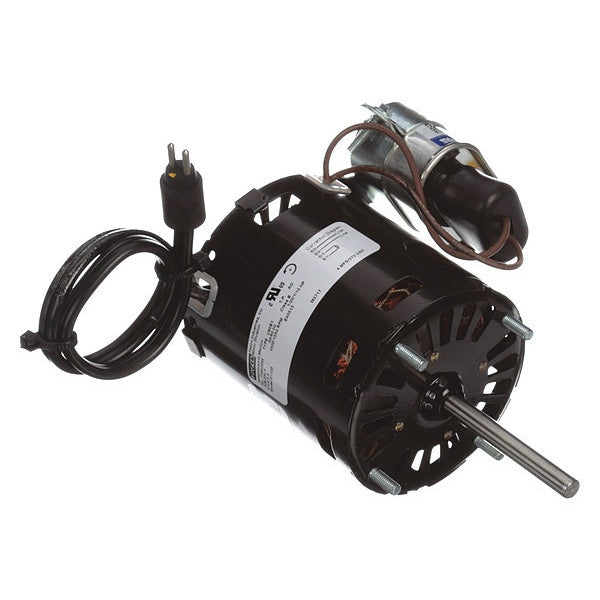

The GENTEQ MOTORS D1125 Mtr Bohn is a 1/15 HP motor designed for evaporator coil and refrigeration fan applications. It operates at 208 to 230 VAC and 60 Hz, with a single-phase and a speed of 1400/1550 RPM. This motor features an open air-over enclosure and a steel frame.

• Horsepower: 1/15 HP
• Voltage: 208 to 230 VAC
• Rotation: CCWSE

Product Highlights

This motor is suitable for refrigeration fan applications, featuring a permanent split capacitor and extended stud mounting.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D1125
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/15 HP
• Voltage: 208 to 230 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Amperage: 0.4/0.5 A
• Number of Poles: 4-Pole
• RPM: 1400/1550 RPM
• Speed: 1-Speed
• Mounting: Extended Stud Mount
• Insulation Class: Class B Insulation
• Frame: Steel Frame
• Shaft Type: Flat Shaft
• Rotation: CCWSE
• Bearing Type: Sleeve
• Capacitor Type: Permanent Split Capacitor
• Enclosure: Open Air-Over
• Application: Evaporator Coil and Refrigeration Fan Motor
• Service Factor: 1
• NEMA Frame Size: 3.3
• Frame Material: Steel
• Approval: UL, CSA
• Motor Type: Permanent Split Capacitor
• Overall Diameter: 3.3 Inch
• Frame Length: 3.62 Inch
• Shaft Diameter: 0.313 Inch
• Shaft Extension: 2.64 Inch
• Temperature Rating: 40 Deg C
• Output KW: 0.04 kW
• Thermal Protection: Thermally Protected
• Efficiency: 54 %
• Ambient Temperature: 40 °C
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Brand: GENTEQ MOTORS
• MPN: D1125
• UPC: Does Not Apply
• Overall Length: 6.75 in
• Packaged Length: 8.00 IN
• Packaged Width: 5.63 IN
• Packaged Height: 5.00 IN
