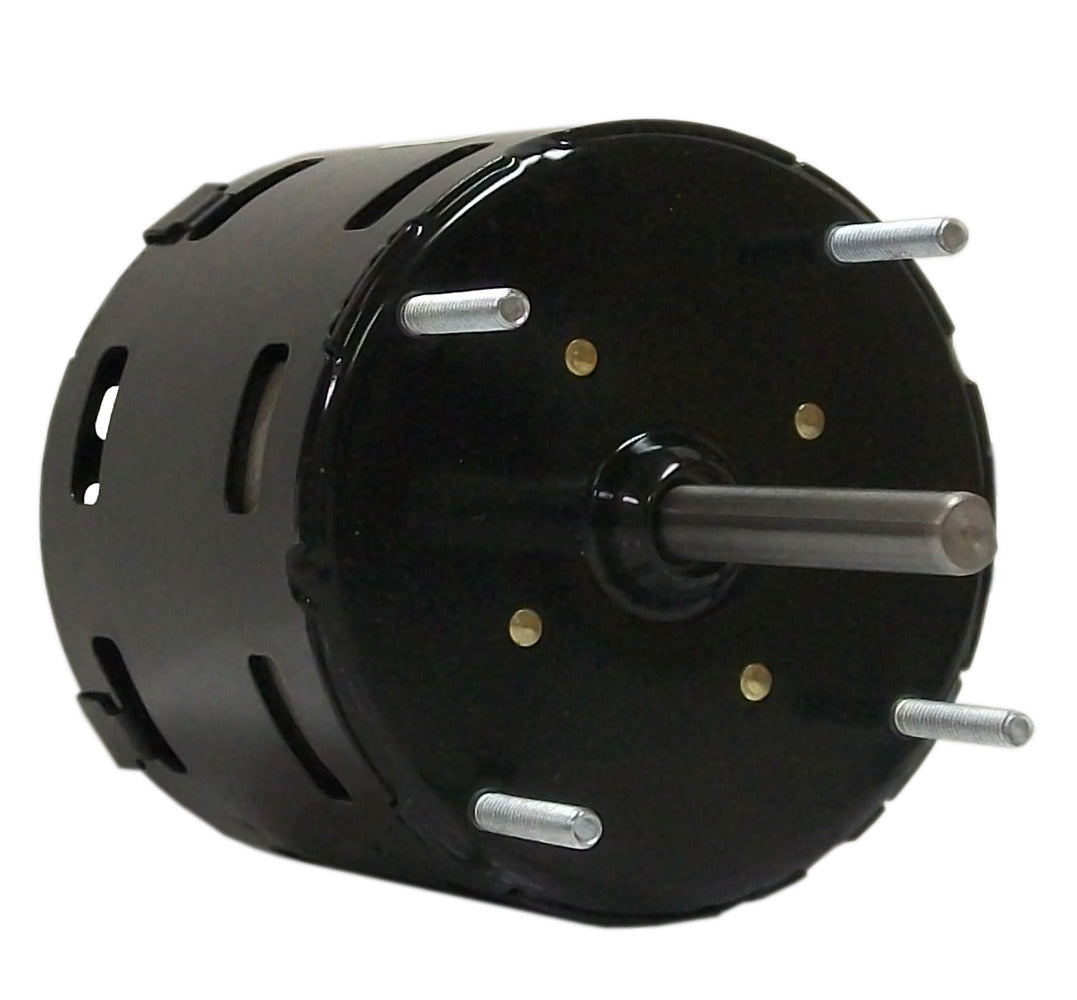

Fasco D1117, 1/65 HP, 1590 RPM, 3.30 Dia, 115V

Product Description

The Fasco D1117 is a condenser fan motor with a horsepower rating of one over sixty-five and operates at a speed of one thousand five hundred ninety revolutions per minute. This motor is designed for use in HVAC systems and is suitable for air over applications. It features a diameter of three point three inches and a voltage rating of one hundred fifteen volts.

• Condenser fan motor with one over sixty-five horsepower
• Rated at one thousand five hundred ninety RPM
• Equipped with sleeve bearings

Product Highlights

The Fasco D1117 is an OEM direct replacement motor suitable for various HVAC applications. Its robust design ensures reliable performance in critical environments.

Product Information

Standard Information

• Duty: Continuous
• Phase: Single

Technical Specifications

• Frame Size: 3.3
• Voltage: 115 V
• Amperage: 0.6 A
• Enclosure Type: Open Air Over
• Speed: 1 Speed
• Poles: 4
• Rotation: Clockwise Shaft End
• Weight: 4 lbs
