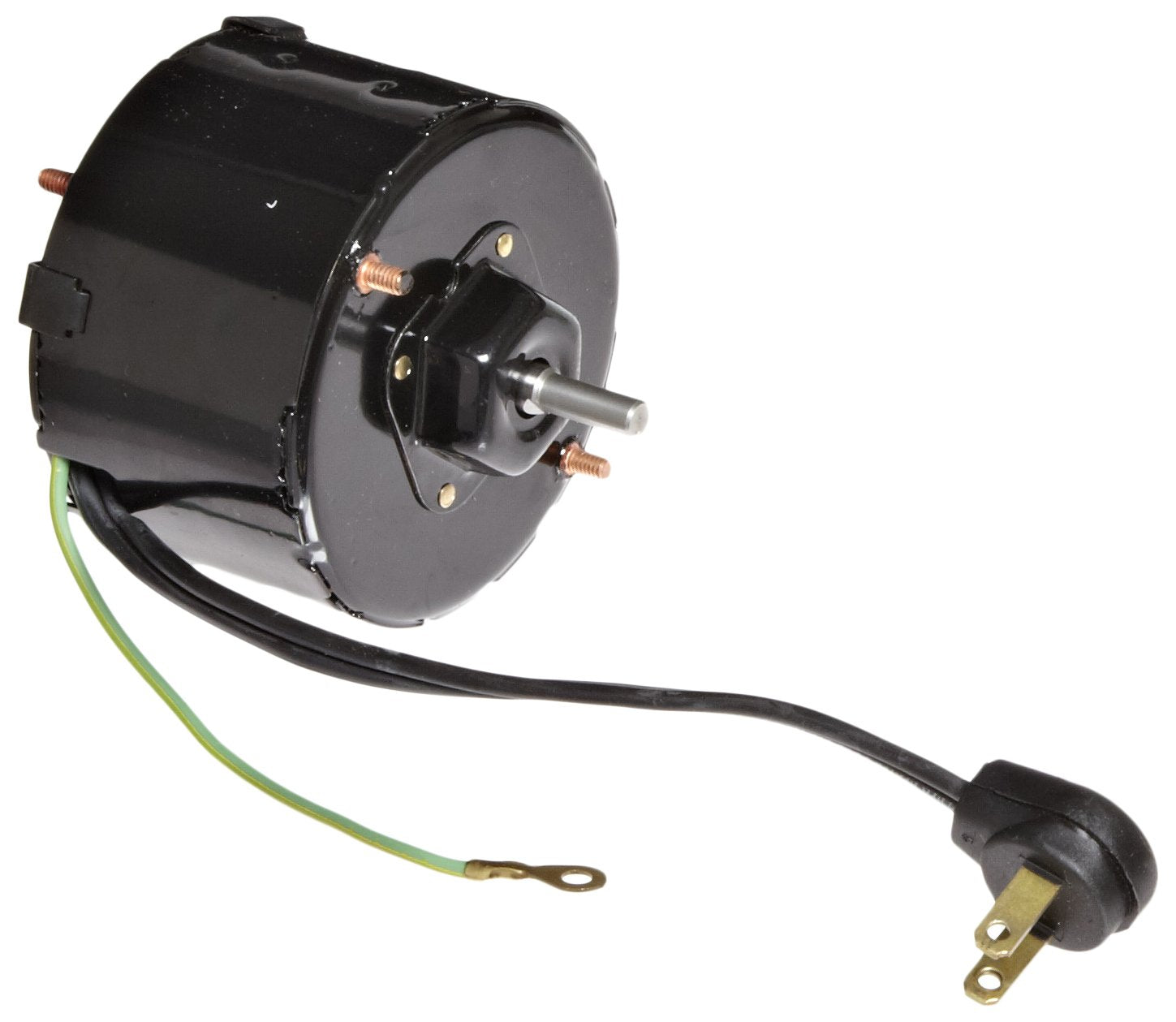

Fasco D1109 3.3 Frame Totally Enclosed Shaded Pole General Purpose Motor with Sleeve Bearing, 1/100HP, 1500rpm, 115V, 60Hz, 0.65 amps

Product Description

The Fasco D1109 is a shaded pole general purpose motor designed for various applications in the HVAC industry. This motor features a totally enclosed design and operates at one hundred volts, making it suitable for use in systems requiring continuous operation. With a frame size of three point three inches and a speed of one thousand five hundred RPM, this motor is efficient in its performance.

• One hundred volts AC operation
• Shaded pole design for efficiency
• Totally enclosed air-over enclosure

Product Highlights

The Fasco D1109 is ideal for applications requiring robust motor capabilities in confined environments. Its thermally protected design ensures safety during operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1109

Technical Specifications

• Power Rating: 1/100 HP
• Speed: 1500 RPM
• Voltage: 115 Volts
• Amperage: 0.65 Amps
• Frame Size: 3.3 inches
• Mount Type: Extended Studs
• Rotation: Counterclockwise Shaft End
• Insulation Class: B
• Max Ambient Temperature: 40 Degrees Celsius
• Design Type: Totally Enclosed Air-Over
