Product Description

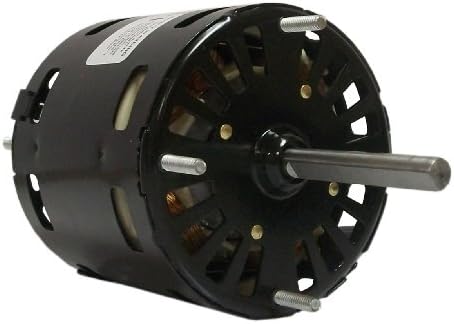

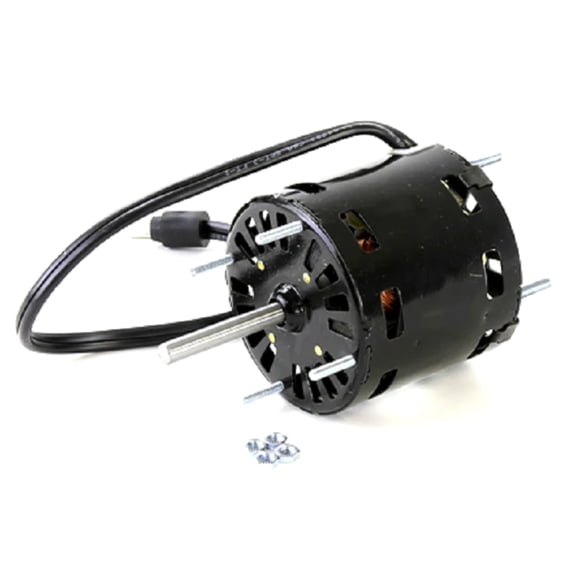

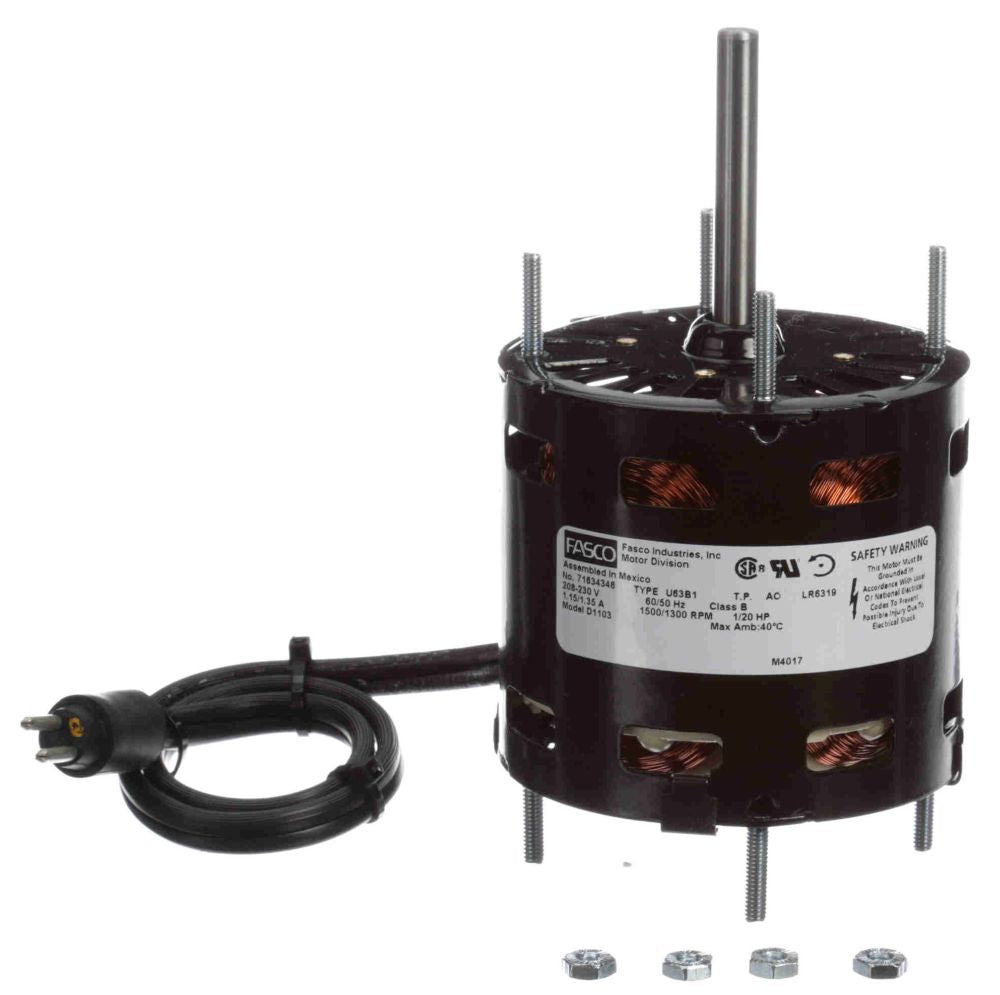

The GENTEQ MOTORS D1103 is a 1/20 HP motor operating at 208 to 230 VAC and 60 Hz. This 1-phase, 4-pole motor reaches speeds of 1500 RPM with a current of 1.15 A. Designed with Class B insulation and a steel frame, it features a flat shaft and counter-clockwise rotation. It is suitable for evaporator coil and refrigeration fan applications.
- Operates at 208 to 230 VAC, 60 Hz, 1-Phase
- Features extended stud mounting and open air-over enclosure
- Designed for evaporator coil and refrigeration fan applications
Product Highlights
This GENTEQ motor is ideal for refrigeration fan applications, featuring a shaded pole design and sleeve bearings.
Product Information
Standard Information
-
Brand: GENTEQ MOTORS
-
Manufacturer Part Number: D1103
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 208 to 230 VAC
-
Frequency: 60 Hz
-
Phase: 1-Phase
-
Amperage: 1.15 A
-
Number of Poles: 4-Pole
-
RPM: 1500 RPM
-
Motor Diameter: 3.3"
-
Motor Length: 5.58"
-
Mounting: Extended Stud Mount
-
Insulation Class: Class B Insulation
-
Frame Material: Steel Frame
-
Shaft Type: Flat Shaft
-
Rotation: CCW
-
Bearing Type: Sleeve Bearing
-
Motor Type: Shaded Pole
-
Enclosure: Open Air-Over
-
Application: Evaporator Coil and Refrigeration Fan Motor
-
Power Rating: 1/20 HP
-
Service Factor: 1
-
NEMA Frame Size: 3.3
-
Approval: UL, CSA
-
Overall Diameter: 3.3 Inch
-
Frame Length: 2.82 Inch
-
Shaft Diameter: 0.313 Inch
-
Shaft Extension: 2.25 Inch
-
Temperature Rating: 40 Deg C
-
Output HP: 1/20 Hp
-
Output KW: 0.04 kW
-
Thermal Protection: Thermally Protected
-
Efficiency: 31 %
-
Ambient Temperature: 40 °C
-
Duty: Air Over
-
UL: Recognized
-
CSA: Y
-
CE: N
-
Electrical Type: Shaded Pole
-
Starting Method: Across The Line
-
Poles: 4
-
Overall Length: 5.58 in
