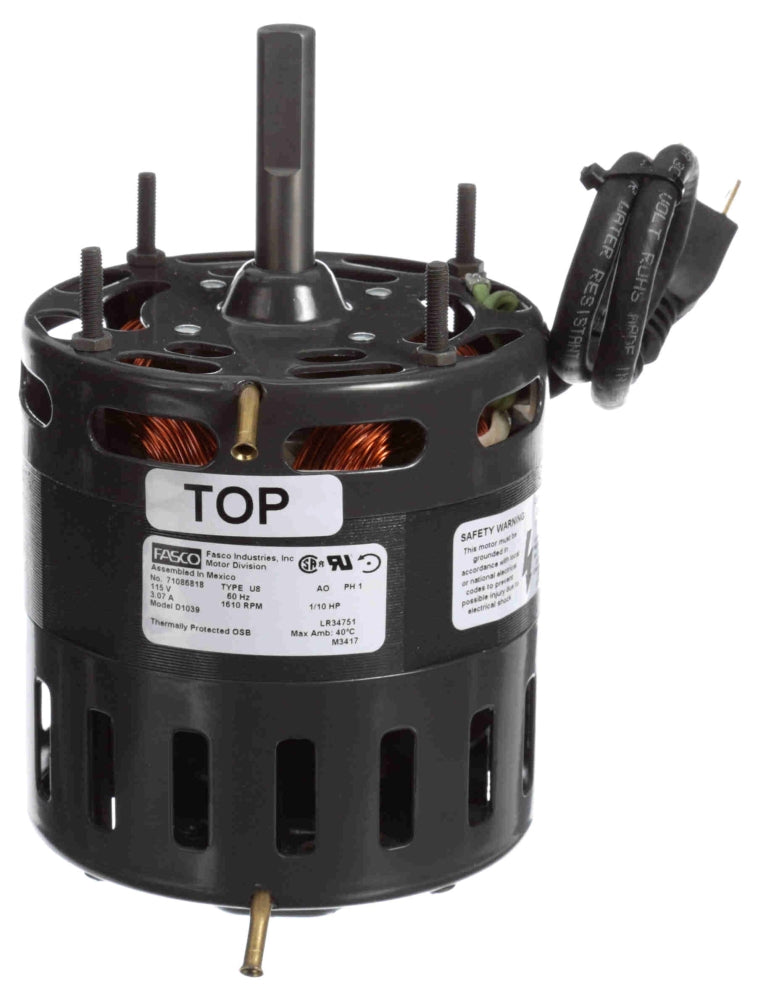

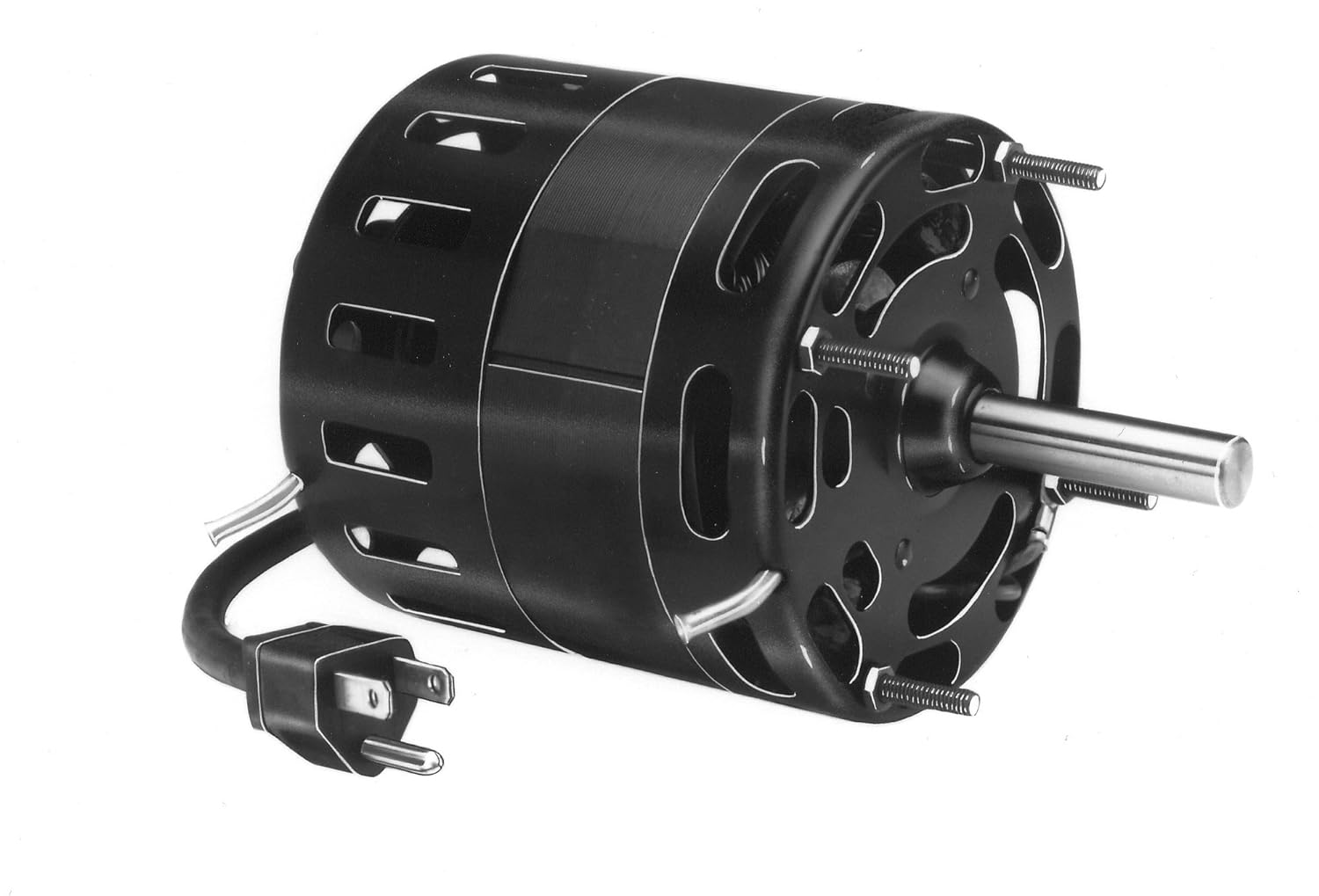

Fasco D1039 4.4 Frame Open Ventilated Shaded Pole General Purpose Motor with Sleeve Bearing, 1/10HP, 1610rpm, 115V, 60Hz

Product Description

The Fasco D1039 is a shaded pole general purpose motor with a power rating of one-tenth horsepower and a speed of sixteen hundred ten revolutions per minute. It operates at one hundred fifteen volts and sixty hertz, drawing three point one amps. This motor features an open air-over enclosure, making it suitable for a variety of applications. It is designed with a sleeve bearing for reliable operation.

• Power Rating: 1/10 HP
• Voltage: 115 Volts
• Speed: 1610 RPM

Product Highlights

This motor is ideal for use in fan applications and is a direct replacement for OEM products such as ILG and others. Its extended stud mounting allows for easy installation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1039

Technical Specifications

• Enclosure Type: Open Air-Over
• Motor FLA: 3.7 Amps
• Insulation Class: A
• Mounting: Extended Stud
• Weight: 8 Pounds
• Approval: UL, CSA
• Number of Poles: 4
• Rotation Type: Counter Clockwise Shaft End
