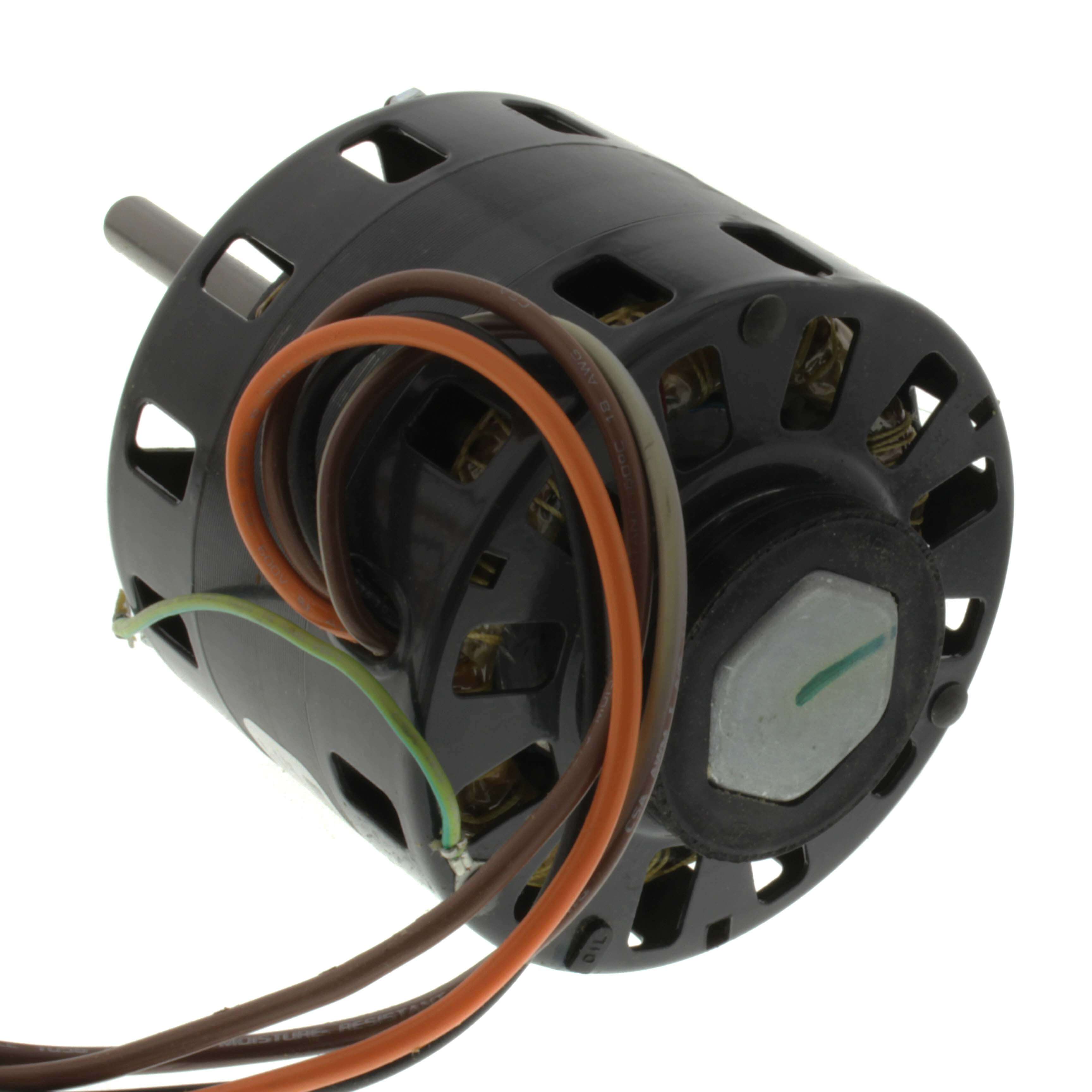

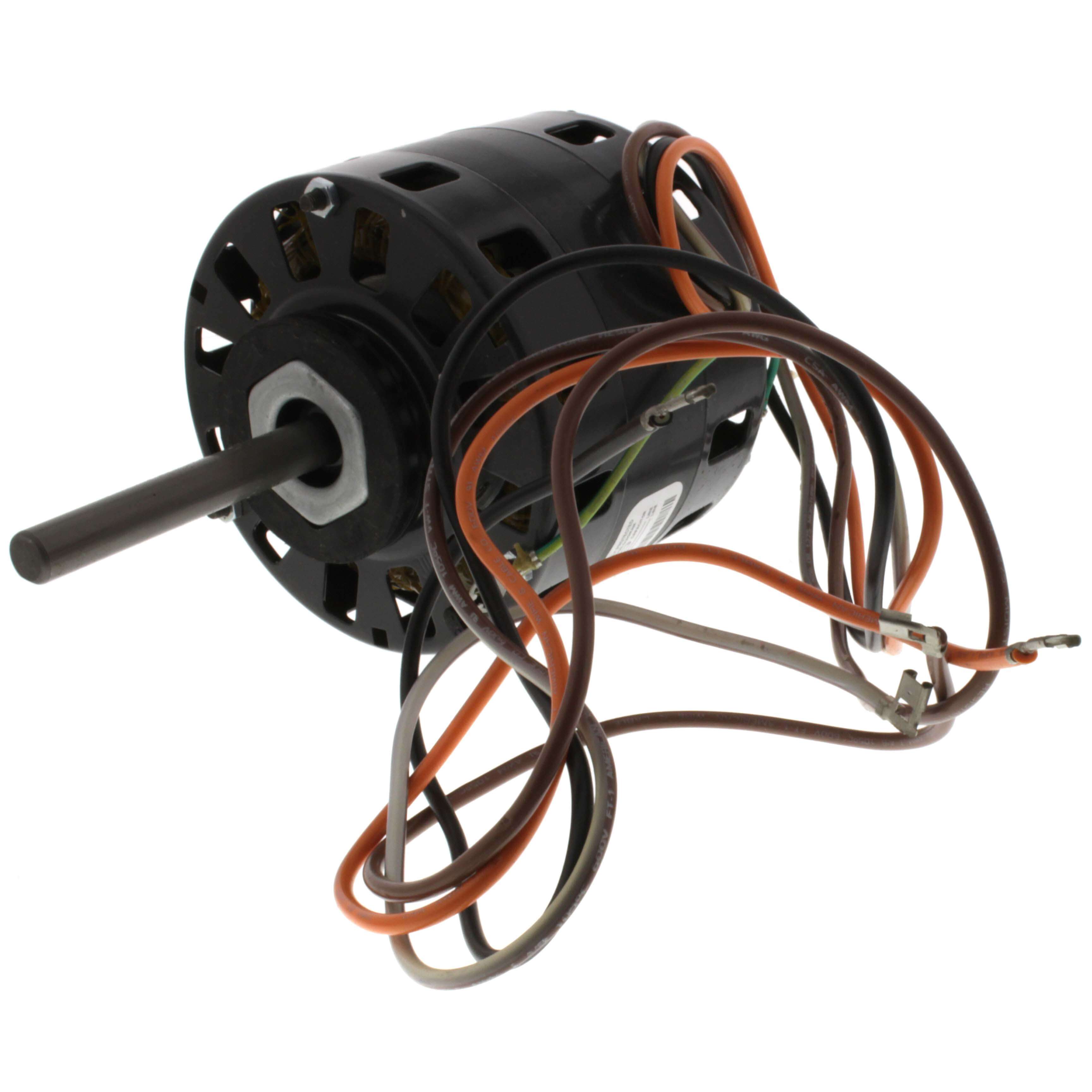

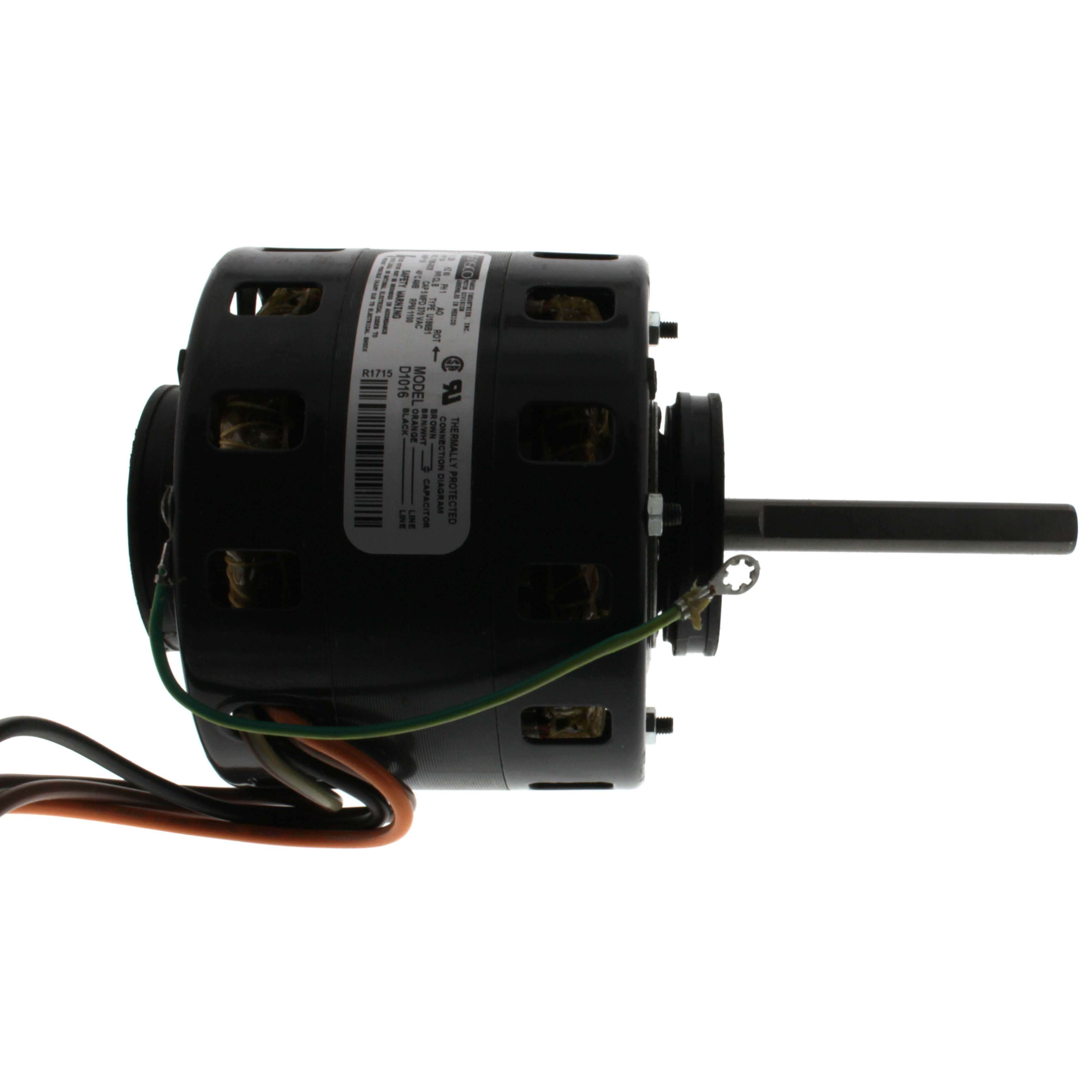

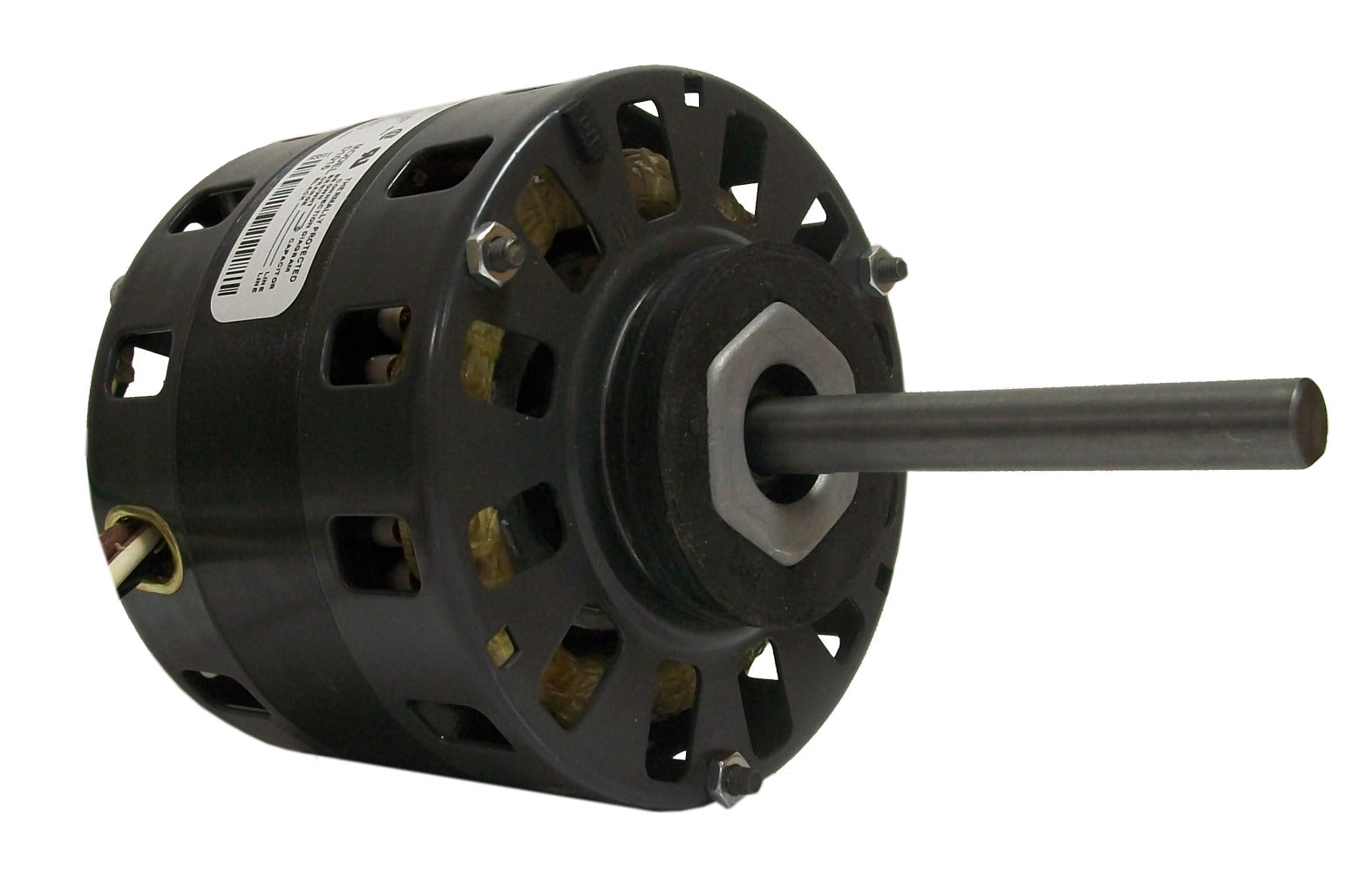

Fasco D1016 OEM Replacement Motor 1/4 HP 230V

Product Description

The Fasco D1016 is an OEM replacement motor designed for HVAC applications. This motor has a permanent split capacitor design and operates at a horsepower of 1/4. With a speed of 1100 RPM, it is suitable for various ventilation needs. The D1016 features a resilient ring mounting system, making it easy to install. It is thermally protected and ensures consistent performance in open air environments.

• Voltage: 230V
• Amperage: 1.6
• Rotation: Clockwise shaft end

Product Highlights

The Fasco D1016 motor is suitable for continuous duty applications. It includes sleeve bearings for durability and has a shaft diameter of 0.5 inches. This motor provides effective cooling and air circulation in a range of HVAC systems.

Product Information

Standard Information

• Electrical Type: Permanent Split Capacitor
• Frame Size: 42

Technical Specifications

• RPM: 1100
• HP: 1/4
• Enclosure: Open Air Over
• Phase: Single
• Overload Protection: Automatic
• Ambient Temperature: 40°C
• Shaft Type: Flat
• Shaft Diameter: 0.5 inches
• Weight: 9.8 lbs
