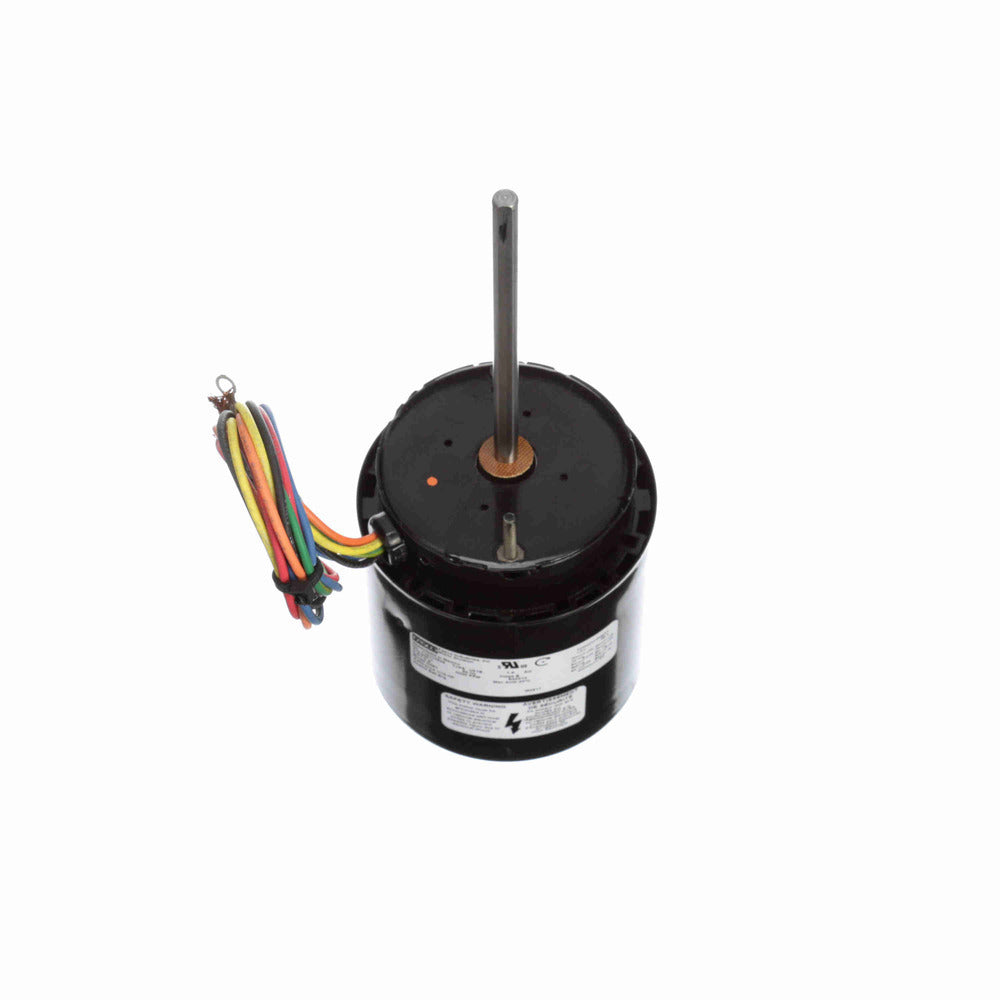

Fasco D091 Ventilation Motor 1/15 HP 115/230V 3000 RPM

Product Description

The Fasco D091 Ventilation Motor is a robust motor designed for HVAC applications. This motor is ideal for providing reliable ventilation. With a power rating of 1/15 HP, it operates efficiently at 115/230V and 3000 RPM.

• Shaded Pole Motor
• Thermally Protected
• Clockwise Shaft End Rotation

Product Highlights

This motor ensures optimal performance in ventilation systems. It features a compact and efficient design with a totally enclosed fan-cooled enclosure to protect against environmental factors.

Product Information

Standard Information

• Brand: Fasco
• MPN: D091

Technical Specifications

• Electrical Type: Shaded Pole
• HP: 1/15
• RPM: 3000
• Diameter: 3.3 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Single
• Voltage: 115/230V
• Rotation: Clockwise Shaft End
• Material: Steel
• Mounting: Extended Studs
• Amperage: 2.00/1.00
• KW: 0.05
• Shaft Diameter: 0.312 inches
• Shaft Extension: 5 inches
• Overload Protection: Thermally Protected
• Insulation Class: B
• Ambient Temperature: 40 degrees C
• Bearing Type: Ball
